0.4L Lab Planetary Ball Mill

0.4L Lab Planetary Ball Mill
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-XQM-0.4L
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

Best Price For Lab Planetary Ball Mill With 0.4L Volume and Output 100nm

SPECIFICATIONS


Working principle:

TOB-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.

Technical Parameters:

Model

TOB-XQM-0.4

Grinding tank volume

100ml*4

Grinding tank material

Zirconia, corundum, agate, cemented carbide, stainless steel, PTFE, PU, nylon.

According to your needs.

Grinding ball material

Matching grinding ball (large, medium and small size)

Max loading volume

Material and grinding balls no more 1/3 of volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Output material size

Min 0.1um

Speed

Revolution 45-435 r/min, Rotation 90-870 r/min

Speed mode

Stepless speed regulation, automatic timing forward and reverse, automatic shutdown.

Working Voltage

AC 220V

Motor frequency conversion controller power

0.25kw

Max continuous working time

72hours

Remark

The ball mill is controlled by a high-tech microcomputer chip. It can be set to forward, reverse alternately run (0-999min), and forward, pause, reverse, pause, forward alternately run (0-999min), especially suitable for cooling or intermittent operation.

It can be used for dry grinding and wet grinding. It can be equipped with vacuum filling inert gas grinding or low temperature grinding.

Grease lubrication is adopted at the gear transmission to reduce the running noise of the equipment.

Dimension

500*300*340mm

Weight

About 30kg


Model

0.4L

1L

4L

12L

20L

40L

60L

100L

Move Speed(r/ min)

Revolution

30-460

30-670

30-400

30- 280

30- 220

30- 200

30- 185

30- 185

Rotation

60-920

60-335

60-800

60- 560

60- 440

60- 400

60- 370

60- 370

Motor Power(KW)

0.55

0.75

0.75

1.5

3

3

4

7

Frequency Control Power(KW)

0.55

0.75

0.75

1.5

3

3

4

7

Continuous Working Timer(min)

1~999

Positive and negative reversingtime(min)

1~99


Ball Mill Jar Introduction

(1)Commonly Used Types

Jar Type

Specification(Volume L)

Agate

0.05

0.15

0.25

0.3

0.4

0.5

1

2

Stainless Steel

0.05

0.1

0.25

0.35

0.5

1

4

5

8

10

Ceramic

0.1

0.25

0.5

1

4

5

10

Nylon

0.25

0.3

0.4

0.5

1

4

5

10

PU

0.25

0.5

1

2

4

5

7

12

16

Corundum

0.5

1

4

5

10

Zirconia

0.5

1

2

4

5

8

10

PTFE

0.5

1

2

5

8

10

12

Alloy

0.5

1

4

5



(2)Jar and Ball Match

Jar Agate Ceramic Stainless Steel Nylon Steel Alumina Alloy Zirconia
Ball
Agate
Ceramic
Stainless Steel
Nylon
Steel
Alumina
Alloy
Zirconia
● means best match effect        ▲means matchable



PRODUCT DISPLAY

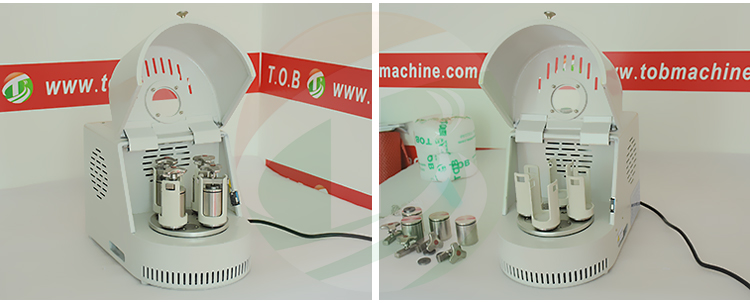

0.4L Lab Ball mill

Planetary ball mill

ball grinding mill
