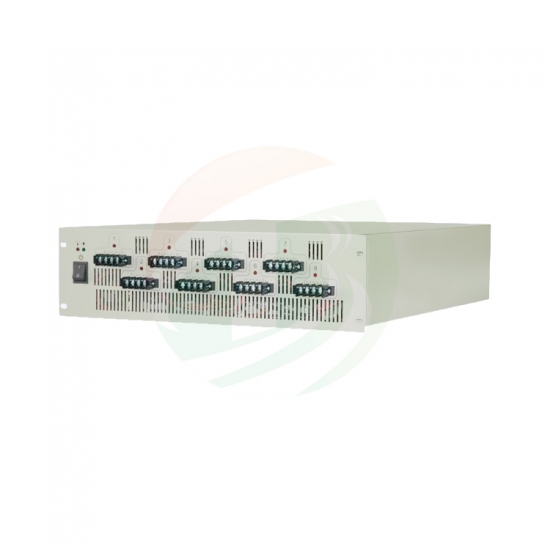

15V6A Battery Pack Test System

TOB-BTS-15V6ABattery tester equipmentis an eight-channelbattery analyzerto analyze polymer battery and cylindrical batteries from 12 mA to 6000 mA, up to 15V.

Brand:
TOB NEW ENERGY
item no.:
TOB-BTS-15V6A
order(moq):
1set
Payment:
L/C,T/T,Western Union
product origin:
China
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

8 Channels 15V6A Battery Pack Test System Laptop Battery Performance Testing

SPECIFICATIONS

1 TOB-BTS-15V6ABattery tester equipmentis an eight-channelbattery analyzerto analyze polymer battery and cylindrical batteries from 12 mA to 6000 mA, up to 15V.

2 Thisbattery test systemprovides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

3 This battery pack test system is mainly used for laptop battery pack performance testing.

Model		Battery pack tester TOB-BTS-15V6A
Warranty		One Year limited warranty with lifetime support
Source voltage		AC110V-220V±10% Customized, 50/60HZ
Input impedance		≥1MΩ
Input power		1088W
Channel characteristics		Constant current source and voltage source adopt double closed loop independent structure
Channel control mode		Independent control
Voltage range per channel		Charge : 3mV-15V Discharge : 2.5V-15V Accuracy : ±0.1%
Current range per channel		Charge : 12mA-6A Discharge : 12mA-6A Accuracy : ±0.1%
Output power per channel		200W
Time	Current response time	0-6A : 20ms
	Step time range	1s-365*24h,Time format : 00:00:00(H:Min:S)
Record condition		TimeΔt ：1-60000s VoltageΔU : 40mV-20V CurrentΔI : 20mA-10A
Charging mode		Constant current charge,constant voltage charge, constant current and voltage charge
Discharging mode		Constant current discharge,constant power discharge
Conditions of constraint		Time, voltage, current, capacity
Cycle	Cycle range	1-65535 times
	Steps pur cycle	254
Protection		Power-down data protection,off-line test function and Safety condition setting protection
Voice		≤85dB
Communication interface		Serial ports
Channel number per unit		8
Dimension(LWH)		485508263mm
Working temperature/humidity		-10-40℃ ≤70%RH

Product Display

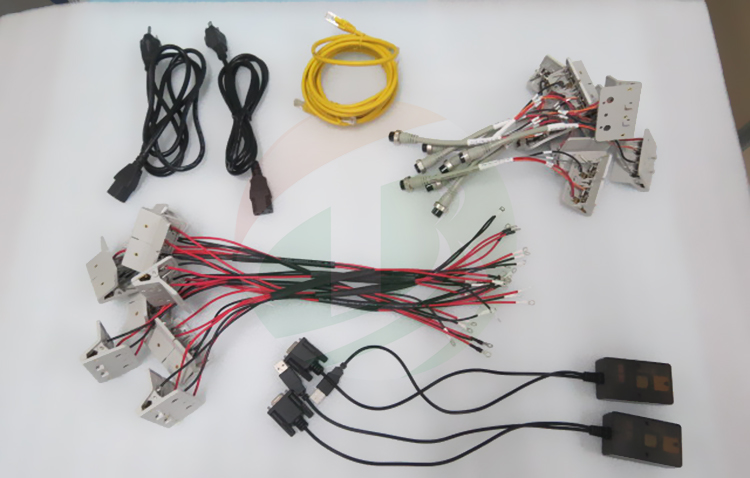

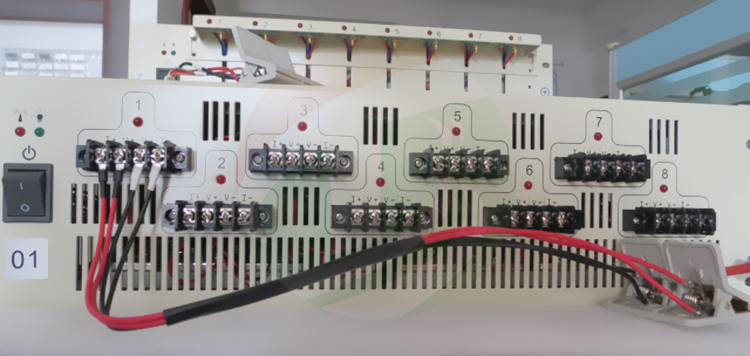

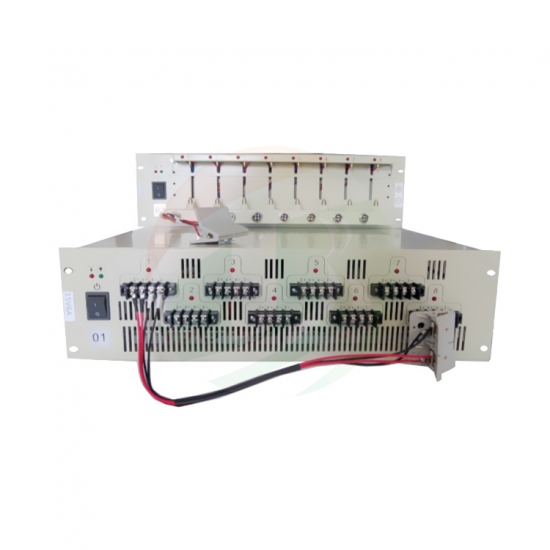

Battery Pack Test System
