battery machine and materials solution
Products

Hot Products


Compact Vacuum Mixer
加载中...

Compact Vacuum Mixer With 150ml and 500ml Mixing Jar

TOB-SFM-7 vacuum mixer is and laboratory vacuum mixing machine designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-SFM-7
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

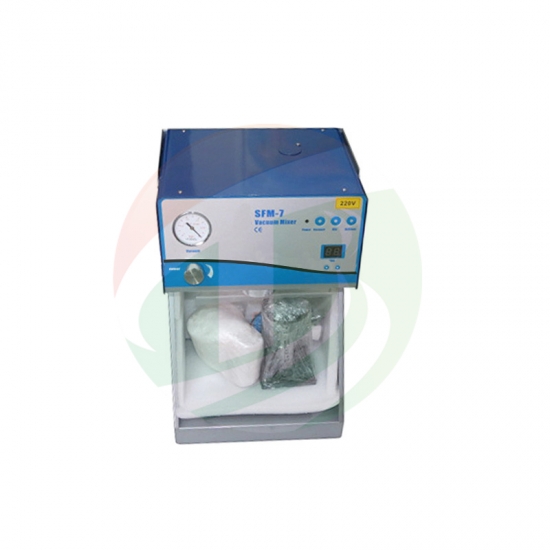

Desk-Top Stepless Speed Variation Vacuum Mixer 150ml and 500ml with Build-in Vacuum pump


SPECIFICATIONS


1 TOB-SFM-7 vacuum mixer is and laboratory vacuum mixing machine designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.

2 This vacuum mixer is with build-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed at 320rpm. So we don’t need to connect with vacuum pump separately.

3 The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing.

4 It is excellent for preparing battery electrode paste and various ceramic materials in research lab.


Model

Vacuum mixer  TOB-SFM-7

Voltage Input

Single Phase 110VAC or 220VAC, Customized

Power

150W

Power plug

Supply with required power plug according to different country

Rotary Speed

320 rpm

Mixing Container

Two vacuum sealed containers are included.

One 150ml stainless steel and one 500ml aluminum

Mixing blade is built in top of cover of container.

 Vacuum pump & Vacuum Level

Built in single stage vacuum pump

Vacuum Level: -0.08~0.09 Mpa

Vibration Plate

Vibrating at 1000 HZ

Dimensions (L*W*H)

13''L x 12''W x 21''H, 330*310*510mm

Shipping Dimensions

16''L x 19''W x 24''H, 420*500*600mm

Net Weight

70 lbs, 30kg

Compliance

CE certified

Application Notes

Please note that the main duty of this product is to remove the bubbles from the slurry

during the wet mixing stage.

For the best mixing uniformity, please select our professional Vacuum mixer

TOB-VM-MRX system or vacuum planetary disperse mixer TOB-VPM-HJ system

Warranty

One year limited with lifetime support


PRODUCT DISPLAY







Digital english panel for vacuum mixer
