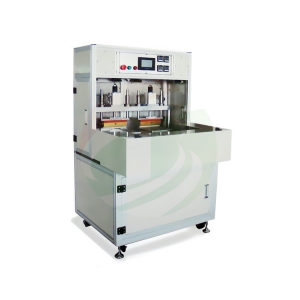

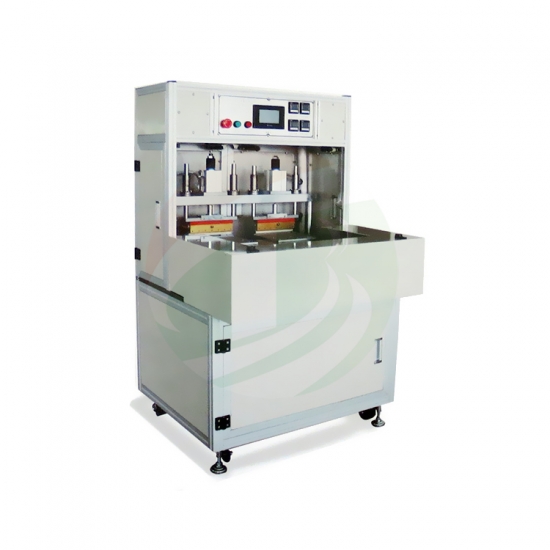

Four Station Top-side Sealing Machine For Pouch Cell

Four Station Top-side Sealing Machine For Pouch Cell
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-MY-06-300-4
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30days
Product Detail

300mm Sealing Head Four Station Top-side Sealing Machine For Pouch Cell Production Line

SPECIFICATIONS



1.TOB-MY-06-300-4 Four station sealing machine is used for lithium polymer battery pouch top and side heat sealing before electrolyte filled.

2.Can pre-set sealing temperature and sealing time.

3.Temperature lower and higher alarm function.

4.Without battery missing sealing or repeat sealing.

5.With light curtain safety protection and back door switch protection.

6.With our-put statistics function.

7.Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.


Working process :

Polymer Battery into fixture, Battery feeding-top sealing position-side sealing position-battery discharge, Finish battery top and side heat seal.

Model

TOB-MY-06-300-4

Type

Turntable type, Four work station

Source voltage

AC 220V, 50HZ

Power

3500W

Warranty

One year limited warranty with lifetime support

Air compression

≥0.6MPa

Size (L*W*H)

 870*870*1500mm

Suitable battery size

Top sealing≤280mm, Side sealing≤280mm

Sealing stamp width

2-10mm, Top sealing : 4mm, Side sealing : 6mm (customized)

Sealing thickness

0.19-0.3mm

Sealing temperature

RT-260℃ adjustable, Accuracy ±3°

Sealing time

0-99.9s, adjustable

Feed accuracy

±0.05mm

Output

400-600 Times/H

Side sealing head

Length : 300mm, Width : 6mm

Top sealing head

Customized

Shelter height

4mm, Sealing battery thickness : 2-10mm

Machine Configure

Standard part

PLC

Mitsubishi

Man-machine interface

Mitsubishi

Tem controller

Omron

Relay

Shanghai

Vacuum gauge

SMC

Proximity switch

Omron

Motor

DDK

Light curtain

 SUNX

Cylinder, Pneumatic element

AIRTAC/SMC
