Hydraulic Roller Press Machine

Update: 2015-01-27      View:12346
  • Item Num :TOB-DYG-703BH-Φ500
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union
  • Product Orgin:China
  • Delivery Time :7
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Hydraulic Roller Press Machine

Introduction

Roll to Roll Pressure Controlled Rolling Press System for Battery Electrodes (Max. 520mm Width)



SPECIFICATIONS

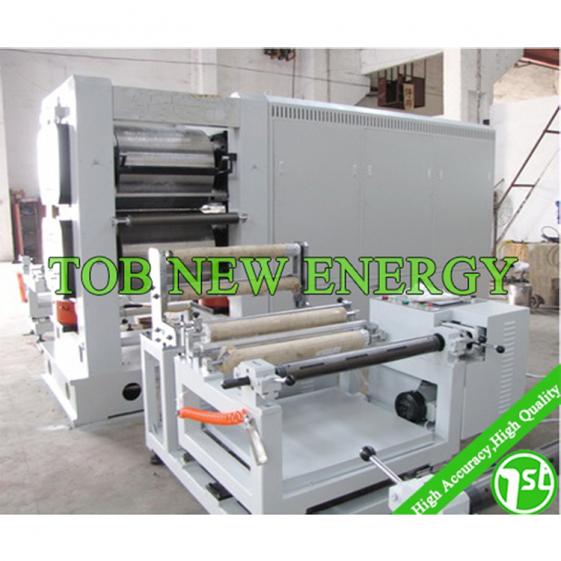

1 DYG-703BH-Φ500×550mm system battery roll press machine is a high precision oil pressure adjustable roller press machine. It has dual rollers of Dia500mm*550mm width model.. This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing..

2 This model battery roll press machine is pressure adjustable roll press, The operator adjust the press pressure to get best effect battery electrode density according to battery design. It is equipped with winding and unwinding roller used for continuous calendering for lithium battery production line.


Model

Lithium ion Battery Continuous Oil Pressure Rolling Press Machine

DYG-703BH-Φ500×550mm

Source voltage

380V, 50HZ Or customized

Power

15KW

Warranty

One Year limited warranty with lifetime support

Calender roller size

φ500mm×550mm

Roller surface

finish

0.2um

Roller hardness

HRC65-68, The depth of hardening≥18MM

Rolling press speed

211rpm, adjustable

Max work pressure

500KN-3000KN

Air compressor

0.5-0.7Mpa, 0.04M3/min

Machine weight

12T

Dimension

Rolling press machine : 3100*1300*2070mm

Total dimension : 6000*3100*2070mm

Winding/unwinding

parameter

1 Electrode with 76mm diameter size, with biggest electrode diameter 450mm. Width 520mm

2 Tension adjustment : 25N

3 Correction accuracy ≤±0.5mm

Advantage

1 Electrode rolling press way: adopt clearance and preloading continuous rolling way;

Preloading adopts hydraulic pressure method with the biggest preloading pressure 3000 kn,

using a hydraulic constant pressure, clearance works,

gas liquid pressurization way produce oil pressure;

Clearance adjusting range: 0-2 mm

2 Man-machine interface input adjustment change oil pressure of roller mill roll gap


ROLL PRESS PROCESS PIC

Battery electrode roll press process


PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
