Semi-automatic lamination machine

Update: 2015-11-11      View:6533
  • Item Num :TOB-YXY-SLM
  • Shipping Port: XIAMEN
  • MOQ :1set
  • Payment :L/C,T/T,Western Union, Paypal
  • Product Orgin:China
  • Delivery Time :7days
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Semi-automatic lamination machine

Introduction

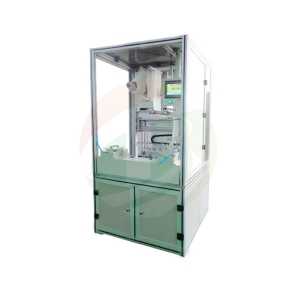

Semi-automatic lamination machine

SPECIFICATIONS

一、Overview of functions

Suitable for battery core lamination process, the positive and negative electrodes and a separator stacked together.

When manually laminated positive and negative film to be placed on the stack pod,separator automatic unwinding,

correction, precision rodless cylinder transverse movement around the separator,2 sets of loop pressure needle

pressed around the pole piece, insulating film, laminate floors can be freely set. plc HMI system to achieve human-computer dialogue, easy to operate.

二、The technical parameters

Application pole piece length

100~350mm

Application pole piece width

100~250mm

Laminations accuracy

Between the pole pieces and the diaphragm ±0.4mm

Correction Accuracy

 0.05mm

Configure Power

220V / 50Hz, 0.5kw

Dimensions (L*W* H)

960 * 900 * 1800mm

 Weight

350kg

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
