small lab planetary ball mill 0.2L

Update: 2015-08-25      View:5857
  • Item Num :TOB-DSP-LBPBM05A
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union
  • Product Orgin:China
  • Delivery Time :7
  • Order Online

have a question? you can call us or Email us by sending a message below.

Subject : small lab planetary ball mill 0.2L


Small lab planetary ball mill 0.2L



Gear transmission


 Two or four tanks simultaneously milling

Max sample loading capacity

2/3 of Tank volume

Tank volume

Each tank :0.05L-50Ltotal volume :0.2L-20L

Feed size

Soil material ≤10mm, other material ≤3mm

Discharge size

Mix 0.1um

Speed ratio (revolution: Rotation)


Speed (rotation)

 0-900 r / min (ordinary), 0-1400 rev / min (high-speed type);

Velocity modulation way

Stepless speed regulation

Speed Accuracy 0.2 rev / min;

Programmable control

Ball mill using high-tech micro-computer chip control,

 can set the program forward and backward alternately

 run (0-999min) and forward, pause, reverse, pause,

forward (0-999min) alternate operation, particularly

suitable cooling or if you need to run it intermittently

Maximum continuous working time (full load)

72 hours (timer 0-9999h)

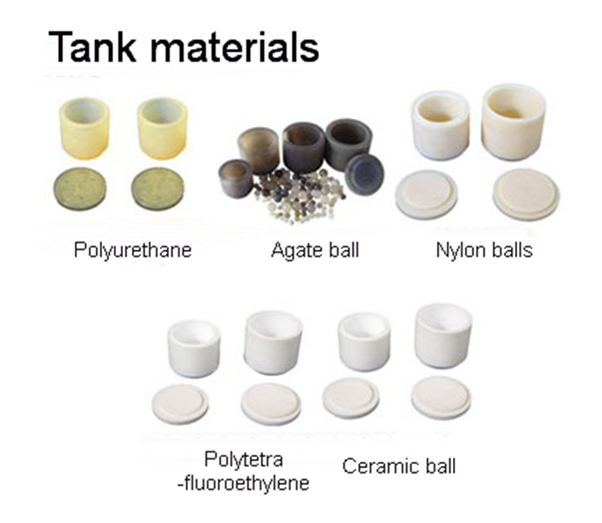

Various  optional materials of milling tank

Agate, alumina corundum ceramics, zirconia ceramics,

silicon nitride ceramic, silicon carbide ceramic,

 stainless steel, high wear-resistant steel,

 manganese steel, nylon, PTFE,

polyurethane, carbide, crystal glass,

and other special metal materials and so on;

Optional milling media

Agate, alumina, zirconia, silicon nitride, silicon carbide,

 stainless steel, high wear-resistant steel, manganese steel,

 nylon, polyurethane, carbide, glass, and other special metals, etc.

Optional milling environmental conditions

Vacuum ball milling, the inert gas milling,

cold milling, ball milling high temperature


1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
