Cylindrical Battery Semi-Automatic Winding Machine

The Battery Winding Machine is a semi-automatic winding machine used for lithium Prismatic battery precision winding for production line.
  • item no.:

    TOB-SJR-18650
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

Cylindrical Battery Semi-Automatic Winding Machine


Specifications



Description

The machine is mainly used for the precision winding of core of the cylinder battery.

The working process is as follows: manually guide the cathode and anode electrodes into the winding part, and separated stacking with the separator, and the winding will be carried out according to the requirements of the process, automatically attaching the termination tape, and the cell will automatically feed.

Function and Features

1. Adopt single needle counterwinding needle structure.

2. Manual lead-in electrode, automatic winding, automatic change needle, automatic tape ending tape and automatic unloading;

3. The adhesive tape adopts the horizontal paste (the tape is perpendicular to the tab), the adhesive is flat, and the adhesive position can be controlled accurately without tightening the cell; the adhesive is stable and reliable;

4. winding needle speed was adjustable;

5. Two rolls of separator active to unwinding, tension push switch control technology can adjust tension automatically during winding.

6. It has a dust removal device;

7. Separator outer pack end.

8. The cell after winding without damage, core pulling and electrode dislocation phenomenon;

9. Easy to operate,adjust and replace;


Technique Standard

Model

TOB-SJR-18650 (21700)

Voltage

AC220V,1.5KVA,50HZ

Compressed air

0.4-0.6MPa

Productive capacity

8PCS/min

Weight

About 500kg

Size

1450mm*1100mm*1150mm(Does not include the outstretched length of the electrode.)

Winding needle specification

Φ1.8mm-Φ6mm(With one set for free, customized)

Applicable outer diameter of the cell

Φ15mm-Φ35mm

Equipment capacity

5~10 pcs/ min (according to the length/width of the electrode)

Winding precision

when the electrode is guaranteed to meet the following conditions:

The width error is less than ±0.2mm;

The bending error of "S" is less than ±1mm/500mm;

The tower shape error of the separator is less than ±0.2mm;

The winding precision can be satisfied

The alignment error of the separator is less than ±0.5mm;

The alignment error of electrode is less than ±0.5mm;

It can realize the negative electrode wrap the cathode electrode , the separator wrap negative electrode, and the alignment of the finished product section is ±0.5mm

Qualified rate

≥98% (excluding equipment factors)

Warranty

One Year limited warranty with lifetime support


Material specifications (unit: mm)

 Material

Length

Width

Thickness

Inner diameter

Outer diameter

Cathode electrode

150~1000

28-73

0.1-0.2





Anode electrode

150~1000

28-73

0.1-0.2





Separator

Roll material

30-75

0.012-0.045

76.2

250

Termination tape

Roll material

8-60

0.01-0.035

76.2

150


Product Display

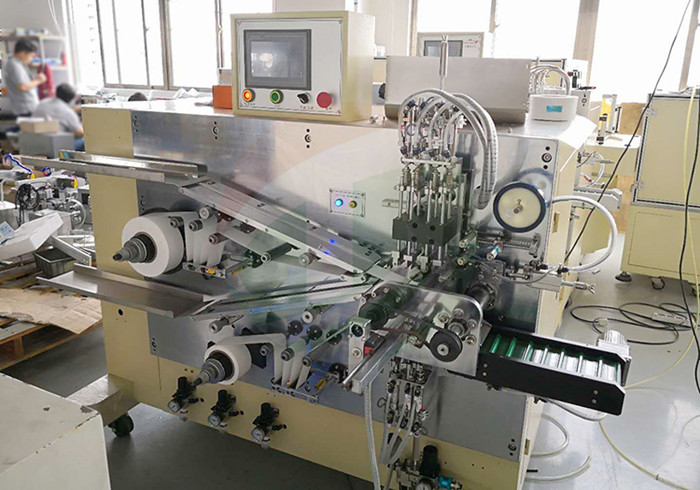

battery winding machine.jpg

Battery Winding

Battery Winding Machine

semi-automatic winder

semi-automatic winding machine

semi-automatic winding


New Appearance




18650 Winding Machine

18650 Winding Machine


 Email : tob.amy@tobmachine.com

 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

our works
related products
Semi-Automatic Winding Machine
Semi-Automatic Winding Machine For Cylinder Cell
Cylinder Cell Semi-Automatic Winding Machine For Lab Research
Capacitor winding machine
Manual Winding Machine For Super Capacitor
TOB-SJR150 Manual winding machine is used for winding battery anode/cathode electrodes with separator together in the research of super capacitor.

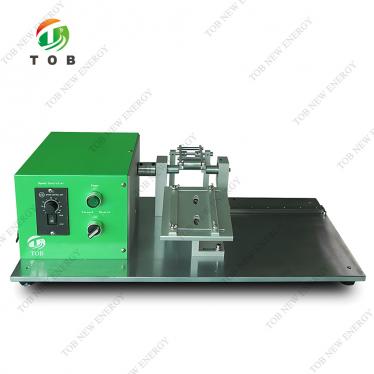

Manual winding machine
