Pressure Controllable Battery Roll Press Machine

This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-ion batteries research after coating and drying for producing.

  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-DYG-703A
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30days
Product Detail

Pressure Controllable Electric Rolling Machine For Lithium Battery Electrode Preparation



Specifications


1 TOB-DYG-703A system battery roll press machine is a high precision Mechanical roller press machine. It has dual rollers of 300mm dia.* 300mm width and Dia400mm*400mm width model.. This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing..

2 This model battery roll press machine is pressure adjustable roll press, The operator adjust the press pressure to get best effect battery electrode density according to battery design.


Model

TOB-DYG-703A-300

TOB-DYG-703A-400

Type

Vertical 2 Roll Press type

Source voltage

AC110V/220V 50/60HZ

Power

5.5KW

7.5KW

Warranty

One year limited warranty with lifetime support

Roller diameter

Dia * width=300*300mm

Dia * width=400*400mm

Speed

4r.p.m

8r.p.m

Pressure

About 10T, about 980KN

Rolling press mode

Preloading suppression way; Preload pressure by a manual handle

 Roller drive way

Gear to gear transmission, planetary gear reducer gear motor drive

Max rolling gap adjustment

0-2mm adjustable

Structure

 1 Roll surface roughness, surface roughness of 0.4um

  2 Roll hardness: HRC62-65, roll conditioning: HB280-300,

     18mm or higher quenching depth and roll cylindricity less than

 0.003 mm

  3 Adopt p52 precision bearings

  4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable

Dimension(L*W*H)

1380*560*1480mm

1819*1000*1817mm

Weight

About 2.8T

About 4T

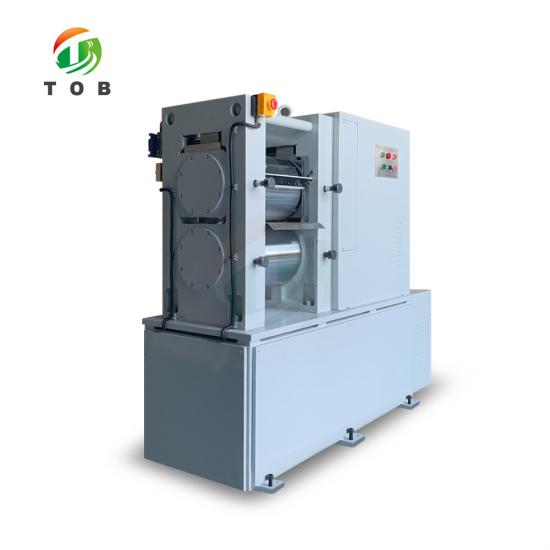

Product Display


battery roll press machine


electrode roll press machine


battery press machine


battery roll press machine

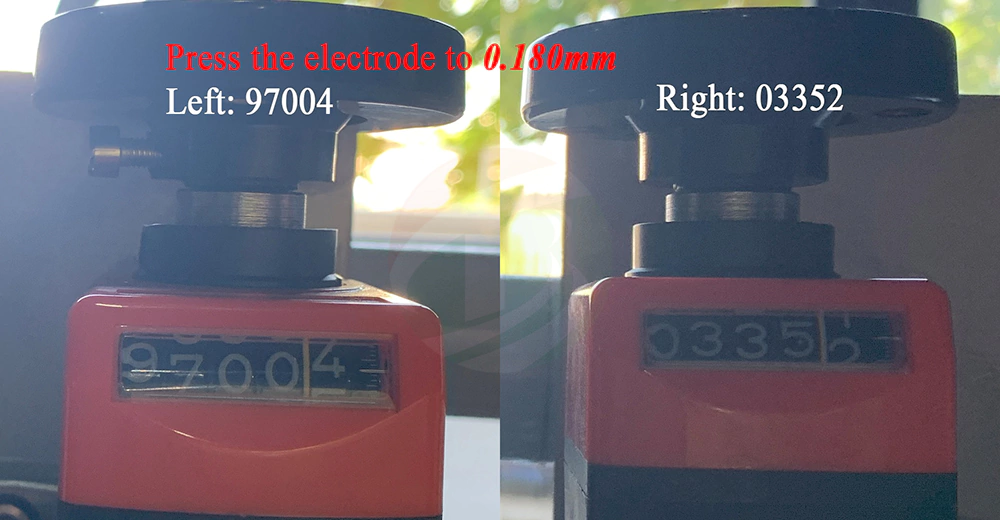

Reference value


battery electrode rolling press
