China Leading Vacuum Planetary Mixer With 30Liters Volume Manufacturer
加载中...

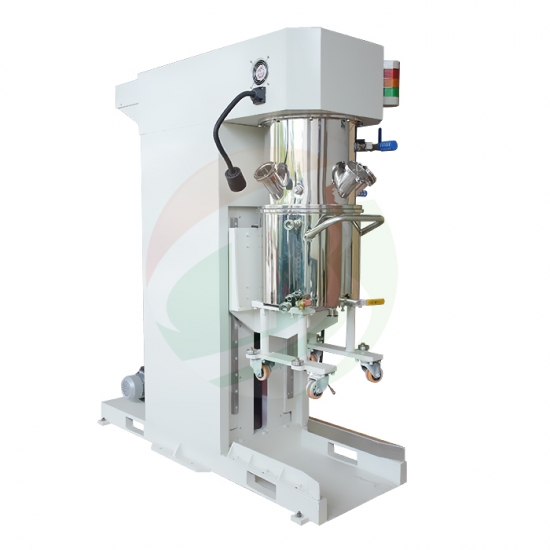

Vacuum Planetary Mixer With 30Liters Volume

Vacuum Planetary Mixer With 30Liters Volume
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-XFZH30
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30days
Product Detail

30 liters Tri-Shaft Planetary Vacuum Mixer Used For Lithium Battery Pilot Scale Line


SPECIFICATIONS


1 TOB-XFZH30Vacuum Planetary Mixeris a vacuum mixing machine with 30 liter containers and complete accessories for immediate use.

2 The TOB-XFZH adoptsLow-speed stirrer scattered and installed on the high-speed shaft of zigzag dispersion plate with both rotation and revolution;At the same time combined with stirring Plasma low clearance design, low speed impeller make the material produces strong kneading movement interference and control/up and down and circular motion; High speed dispersion plate is strong shear break up material, So as to ultimately ensure that materials are fully dispersed and mixed evenly (mixed).

3 TOB-XFZH30Vacuum Planetary Mixeris excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.


Model

Vacuum Planetary Mixer  TOB-XFZH30

Source voltage

AC 380 V, 3 Phase, 50 HZ

Power

8.5KW

Warranty

One Year limited warranty with lifetime support

Design capacity

45 L

Working capacity

30 L

Basic structure

A, Electric lifting barrel.

B, Single direct material temperature measurement model;

C, Monodisperse shaft + double stirring shaft + belt wall

Barrel (stirring barrels)

Dia. 400mm×360mm

Barrel structure

A, Tank material: SUS304.

B, Bladder wall mirror polishing after turning processing, ensure good roundness;

C, Stirring barrels on the flange surface and on barrel through the sealing ring seal;

D, Bottom with G1 "(DN25) discharge valve;

E, Four roller at the bottom And the barrel body with a push handle.

Planets orbiting speed

0~50rpm, adjustable

Stirring shaft/stirrer speed

0~80rpm, adjustable

Dispersion speed

 0~5000rpm, adjustable

vacuum degree

-0.098MPa

Temperature test mode

0-300 ℃, the temperature measuring probe located close to the bottom of the

barrel wall (or bottom), contact with the material and display the temperature

Weight

1300KG

Dimension (L*W*H)

1800*1100*2100mm




Product Display




planetary vacuum mixer

vacuum mixer

mixing machine



Packing




lab vacuum mixer
