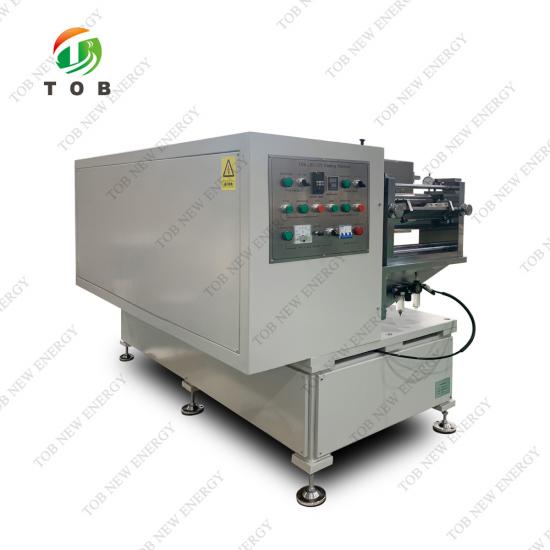

300mm Automatic Roll To Roll Battery Electrode Coating

The lithium battery coating machine TOB-LBC-135 model coating machine is mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery lab research and pilot scale production line.
  • item no.:

    TOB-LBC-135
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

300mm Width Roll to Roll Battery Electrode Coating System with Drying Oven



SPECIFICATIONS



The lithium battery coating machine TOB-LBC-135 model coating machine is mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery lab research and pilot scale production line.


Model

Lithium ion Battery Coating Machine  TOB-LBC-135

Source voltage

AC 380V, 50HZ

Power

6500W

Warranty

One Year limited warranty with lifetime support

Max electrode width

280mm

Coating speed

1m/min, adjustable

Coating accuracy

≤±0.002mm

Roller diameter

Φ100mm

Max coating roller diameter

Φ250mm

Control pressure

5-50N, adjustable

Dry temperature

RT-150℃, adjustable

Oven length

1.2m

Air compression

0.5-0.7MPa

Coating mode

Single face continuous coating

Application foil

Aluminum foil, Copper foil

Weight

About 1050kg

Dimension(L*W*H)

1800*810*1300mm

Advantage

1 Scraping system, parts processing precision, slurry contact part stainless steel structure,

scraping thickness adjustable.

2 Main transmission adopts frequency control of motor speed,

wide speed range speed constant and reliable for the speed control system, constant torque

3 Drying box adopts far infrared heating pipe, high heat efficiency, long service life

4 Using hot air circulation system, can make the temperature uniform,

not easy to burn the pole piece

5 Temperature control adopts PID control system, high control accuracy, reliable work

6 The reeling adopts automatic correction system, pole piece coiling system


PRODUCT DISPLAY



battery coating machine

Electrode Coating Machine

Electrode Coating Machine

Electrode Coating Machine


Package

Coating-machine-Packing
