Subject : Compact Manual Disassembling Machine For Cylinder Cell

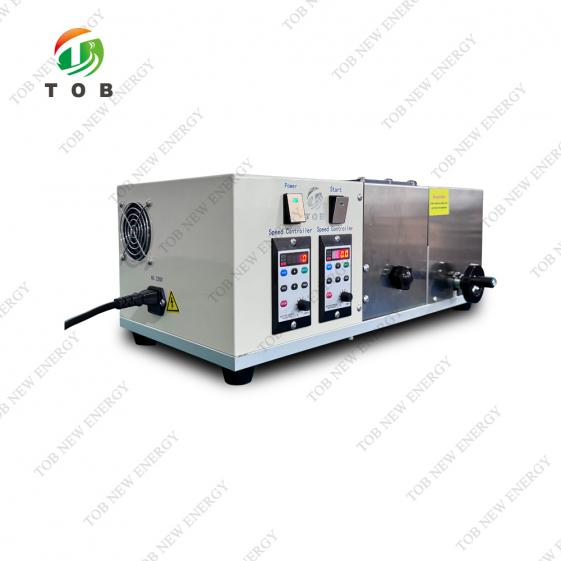

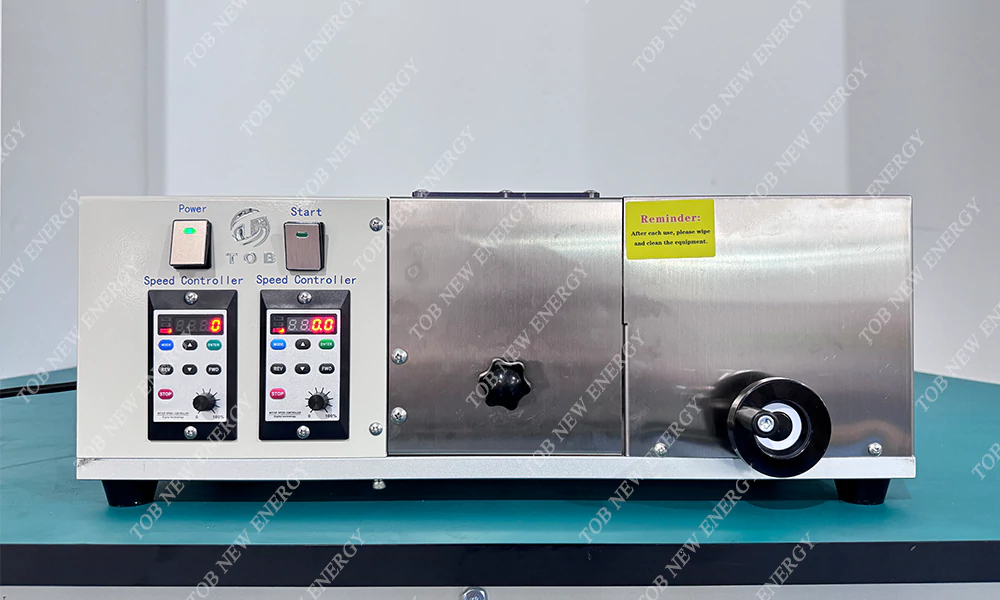

Compact Disassembling Machine for 18650, 26650, 32650 Cylindrical Cell Cases


MSK-530 is a compact manually-operated machine for disassembling cylinder cases in battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with safety protection cover allows customers to master the disassembling procedure within 5 minutes


18650 cylindrical cell disassembling machine  MSK-530

Supply Voltage

AC220V Single phase

(110VAC available with a transformer)



Slicing Motor Speed

1000 rpm

Die Rotating Speed

1000 rpm

Micrometer Accuracy



One year limited with lifetime support

Product Dimensions

480mm(L) x320mm(W) x 230mm(H)


Standard disassembling die for 18650 case.

Additional die sets available for 26650 and 32650 as option.

Net Weight

35 kg

Shipping Weight & Dimensions

100 lbs; 40"x20"x20"


1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
