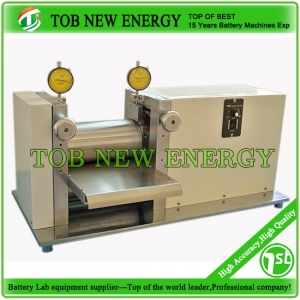

Electric Calender With 200mm Width

TOB-DR-200L Lab Roll Press Machine is a compact precision Electric Calender machine. It has dual rollers of 100mm dia. x 200mm width and dual grade micrometer.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-DR-200L
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Electric Precision 200mm Width Electric Calender with Dual Micrometer For Lithium Battery Electrode Calendering


SPECIFICATIONS



1 TOB-DR-200LLab Roll Press Machineis a compact precisionElectric Calender machine. It has dual rollers of 100mm dia. x 200mm width and dual grade micrometer. Thislab roll press machineis an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.


2 This modelElectric Calenderis mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.


Model

200mm Width Electric Calender TOB-DR-200L

Working Voltage

110V / 220V AC single phase selectable

Power

200W Total

Warranty

One year limited manufacture warranty with lifetime support

Structure

1 Heavy duty steel frame, gears and handle

2 Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62)

with Cr electroplated coating

3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

Roller

Dimensions: 100mm(Dia.) x 200mm(W)

Material: Made from hardened tool steel (HRC > 62)

with Cr electroplated coating. With finish > 0.8

Rolling press accuracy

≤±0.005

Roller surface

hardening depth

5mm

Max pressure

5T

Rolling press thickness

0-2mm adjusted with Dial gauge

Rolling press width

Max 200mm, Customized

Rolling press speed

0-2m/min adjustable

Product Dimensions

700 mm(L) x 320mm(W) x 310mm(H) (28" x 12.5" x 12.2")

Weight

76kg



Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property

of the materials. Here are some results from our test:

Electrode

Size

Original

thickness

Finished thickness

LiFePO4

double sides

50mm Width x 260mm Length

0.205mm

0.09mm

LiMn2O4

double sides

50mm Width x 260mm Length

0.205mm

0.09mm

Copper foil + graphite

(single side)

75mm Width x 240mm Length

0.09mm

0.04mm

Sample testing is available upon customer's request



PRODUCT DISPLAY



Lithium Battery Electrode Calendering




PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
