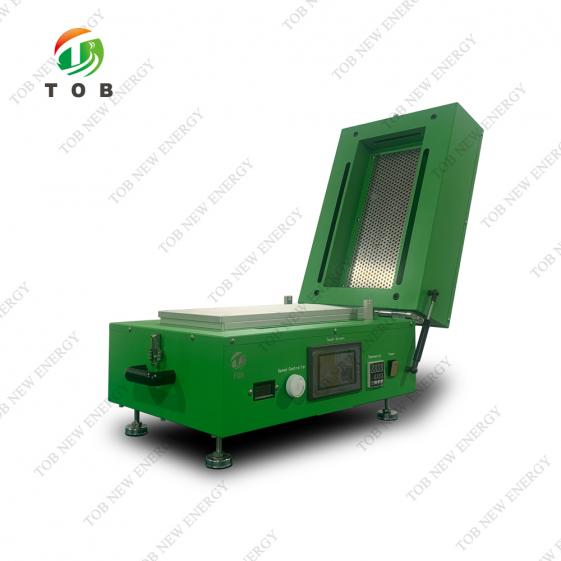

Film Coating Machine With Dryer

TOB-VFC-150 The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-VFC-150
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Touch Screen Compact Tape Casting Film Coating Machine with Dryer, Vacuum Pump & Adjustable Film Applicator



Specification


1. The TOB-VFC-150 Film coating machine with dryer is used for varies kinds of materials coating.

2. It is supplied with vacuum pump and heating system, having an precision heating temperature upto 200℃.

3. The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

4. Build-in oil-less vacuum pump make the machine with small volume and less noise.

5. New designed Touch Screen control make the operating more easy and simple



Machine model

Automatic film coating machine with dryer

TOB-VFC-150

Source voltage

AC110V-240V, 50/60HZ

Power

650W

Coating speed

0-100mm/s, Step-less transmission   Accuracy: 10mm/sec

Advantages

Supply with dry function, vacuum pump

Stroke length

10 - 250 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck

Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)

Slicker width

0-150mm

 Slicker adjustable

range

0.01-3.5mm

Heating dry system

RT-200°C, Digital temperature controller

Temperature control

accuracy

±1°C

Dimension

500*350*320mm

Weight

About 40kg

Package size

790*540*600mm

Package weight

65kg

Warranty

One Year limited warranty with lifetime support

Remark

1. One oil-less vacuum pump is inset

2. Heating system : Installed on the top cover

Built in digital temperature controller with accuracy of +/-1°C.

Suspension support helps open cover easily and safely.

Max. Heating Rate:10°C/min

Max. Heating Temp.:200°C

3. A 100mm width micrometer adjustable film applicator

Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed


PRODUCT DISPLAY



Bottom heating design (can be customized)
lab coater



Lab coating machine

lab coater

Film coating machine

vacuum coating machine

Package

Package for vacuum coating machine
