Powder Compacting Hydraulic Press Machine

Update: 2015-09-15      View:7484
  • Item Num :TOB-PPH-10T
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union
  • Product Orgin:China
  • Delivery Time :7
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Powder Compacting Hydraulic Press Machine

Introduction

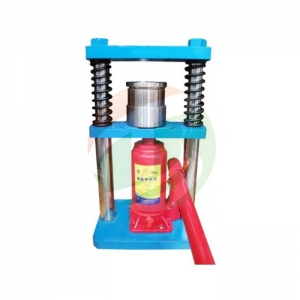

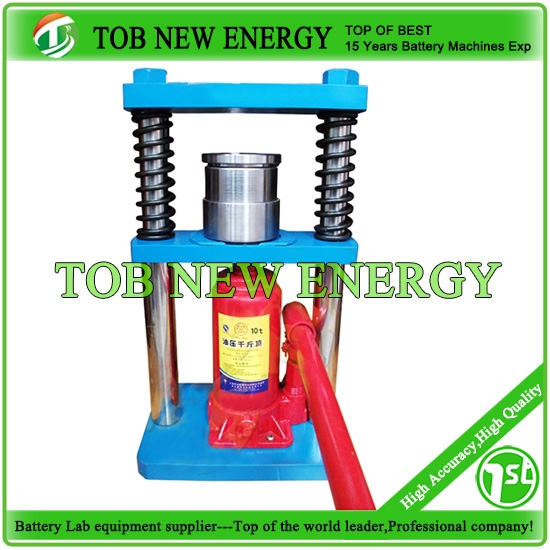

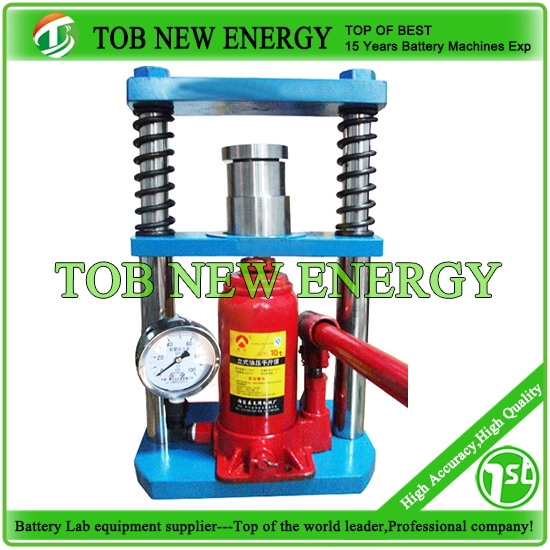

Powder Compacting Hydraulic Press Machine For Lab Research

SPECIFICATIONS

Manual type powder compacting hydraulic press is used for medicine powder, chemical powder sheet preparation. The Press diameter is between 6mm-60mm. Practical in food, medicine, chemical, ceramics and other industries. It is an ideal equipment for the laboratory to do scientific research in enterprises, colleges and universities.

For lithium battery, it is used for press the powder materials as electrode for battery or supercapacitor research.

Model

Powder Compacting Hydraulic Press Machine TOB-PPH-10T

Max Pressure

5T/10T can be customized

Max working stroke

125mm/140mm

Dimension

220*160*370mm

Weight

20kg

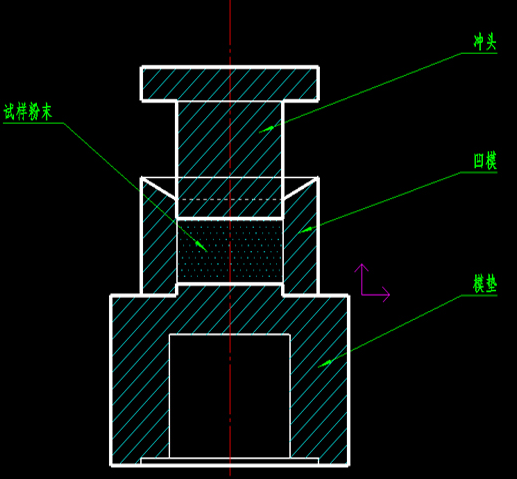

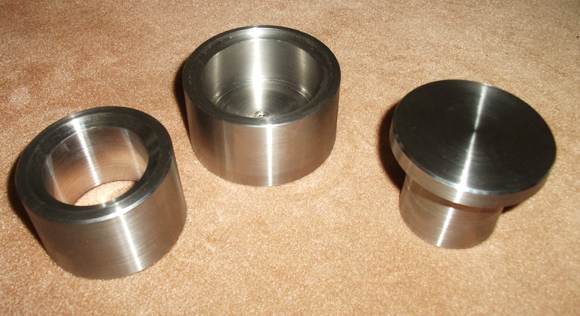

Die materials

Stainless steel or Cr steel



PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
