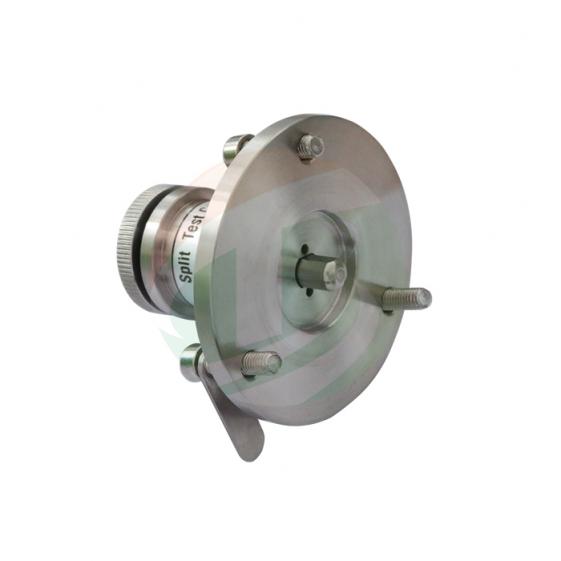

Split Test Cell for R&D Coin Cell Battery

Update: 2015-05-22      View:8384
  • Item Num :TOB-EQ-STC
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union
  • Product Orgin:China
  • Delivery Time :7
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Split Test Cell for R&D Coin Cell Battery

Introduction

Split Test Cell for R&D Battery: Optional size at 10, 12, 15, 19, 20, 24 mm Diameter Cell

SPECIFICATIONS

The EQ-STC Split Test Cell is used for Rechargeable Battery and battery electrode materials Research.

Structure

Full stainless steel

Max. Cell Thickness

6mm  (cathode+separator+anode)

Features



A 6mm height spacer inside the test cell to press down on the electrode

and prevent the electrode from curling

Sealed by electrolyte corrosive-proof PTFE O-rings

Electrolyte corrosive-proof PTFE Guide Sleeve capable of

withstanding up to 250 ºC.

Easy to separate after testing

Small enough to be put in and taken out from a glove box

Same functionality to "Coin Cell" but with more size options for electrode

and separator and also the proper dimensions for glove box compatibility

Optional

10, 12, 15, 19, 20, and 24 mm diameter customized

Dimension

Φ80mm*80mm

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
