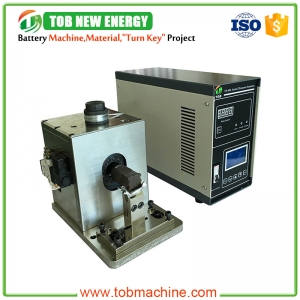

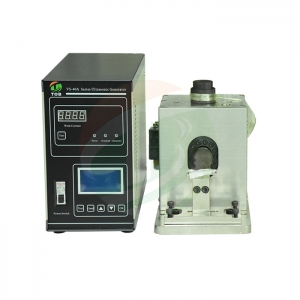

Ultrasonic Metal Welding Machine For Ni Tab And Copper Foil Welding

Update: 2016-08-04      View:10151
  • Item Num :TOB-VS-40A
  • Shipping Port: XIAMEN
  • MOQ :1set
  • Payment :L/C,T/T,Western Union, Paypal
  • Product Orgin:China
  • Delivery Time :7days
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Ultrasonic Metal Welding Machine For Ni Tab And Copper Foil Welding

Introduction

Ultrasonic Metal Welding Machine For Cylindrical Battery 18650 and Pouch Cell Anode Ni Tab And Single Copper Foil Welding

SPECIFICATIONS

1 TOB-VS-40A Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.

2 TOB-VS-40A Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.

Model

TOB-VS-40A

Source voltage

AC220V, 50HZ, can be customized

Power

1200W

Warranty

One Year limited warranty with lifetime support

Type

Ultrasonic spot welding machine

Frequency

40KHZ

 Welding time

0.05-9.99s

Air supply

0.2-0.8MPa

Welding effect

Single layer of copper foil and Nickel strip or Nickel-Cu strip welding ,

 belt melt, welding firmly

Welding ability

 1 Materials : Battery anode electrode. (single layer copper foil and single piece Nickel/Ni-Cu strip)

 2 Copper foil thickness : 8-15um

 3 Nickel/Ni-Cu strip thickness : 0.06-0.12mm

 4 Welding mode : according to your requirements

 5 Welding area : can be customized

Dimension (L*W*H)

Power box : 400*170*300mm

Welding machine : 300*200*270mm

18650 battery welding head
ultrasonic welding machine head

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
