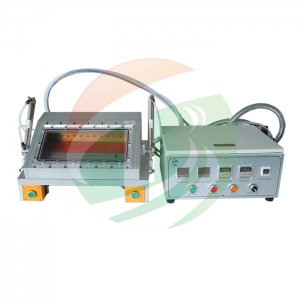

350*200 Compact Vacuum Sealing Machine For Battery Pre-vacuum Sealing

TOB-YF350-S compact vacuum sealing machineis mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.

Brand:
TOB NEW ENERGY
item no.:
TOB-YF350-S
order(moq):
1set
Payment:
L/C,T/T,Western Union, Paypal
product origin:
China
shipping port:
XIAMEN
Lead Time:
30days

inquiry now

Product Detail

350*200 Compact Vacuum Sealing Machine For Battery Pouch Pre-vacuum Sealing

TOB-YF350-S compactvacuum sealing machineis amanual pouch sealing machinemainly used for Heat sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.

It is with KF40 Connection port, which can connect in glove box directly.

SPECIFICATIONS

Model	Compact Vacuum Sealer TOB-YF350-S
Source voltage	AC 220V, 50HZ
Power	2000W
Warranty	One year limited warranty with lifetime support
Vacuum degree	More than -95Kpa
Sealing head TEM	RT-250℃, adjustable
TEM accuracy	±2℃
Sealing time	1-99s, adjustable
Sealing Blade	Hard type (without rubber, only for Al case sealing, not suitable for sealing case with tab in between)
Sealing width	8mm (Customized)
Sealing head length	350mm
Suitable battery size (Inner size)	35020015mm
Air source	0.5-0.7MPa
Package Size	1206055cm
Package weight	90kg

STANDARD PACKAGE LIST

Item	Qty
Compact Vacuum Sealer	1 set
Power line (according to your requirements )	1 pcs
Foot pedal	1 pcs
Socket head wrench	1 set
Relay	2 pcs
KF40 Connection port	1 pcs
Operating manual (English)	1 book

Product Display

Vacuum-sealer-machine

hand-sealer-machine

sealing-machine-spare-parts

PACKAGE

Sealer-machine-Packing
