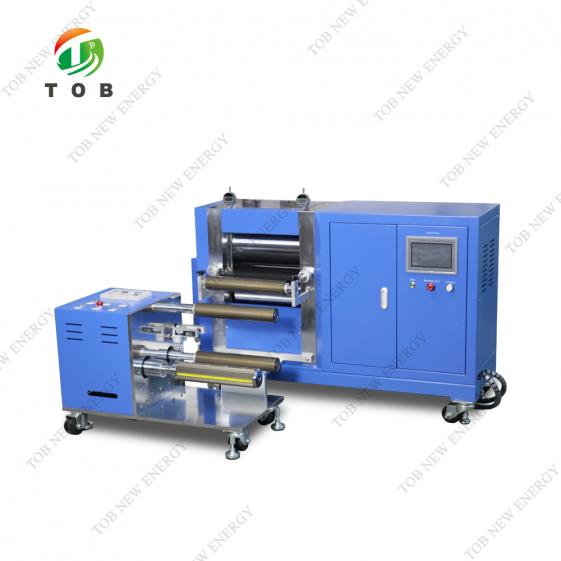

40T Laboratory Electric Hydraulic Battery Electrode Calendering Machine

300mm working width, The hydraulic balance electric roller press machine is aimed at the high precision rolling of cathode and anode electrodes in the battery industry.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-HRP-300
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

40T Laboratory Electric Hydraulic Battery Electrode Calendering Machine




SPECIFICATIONS (Color Customizable)


The hydraulic balance electric roller press machine is aimed at the high precision rolling of cathode and anode electrodes in the battery industry. The equipment is rolled in horizontal and vertical uniformity. After rolling, the appearance of the product is high -quality. which is suitable for the case which have high requirements on the consistency of rolling force and rolling gap.


The main features

* Imported servo hydraulic proportional valve system is adopted to control the pressure accurately.

* Integral gantry frame, CNC precision machining, to ensure high precision and high stability;

* The roller is made of imported cold rolled chromium-molybdenum material after heat treatment and chromium-plated cryogenic treatment, with high internal and external hardness and good wear resistance;

* Patented hydraulic balance rolling mechanism, stable pressure holding, good horizontal and longitudinal rolling uniformity;

* Inclined block roll gap adjustment device, digital display micrometer display;

* PLC, HMI operation, and easy to control each parameter settings;

* The surface of the roll is treated with hard chrome treatment, and the rust -proof is good, so it is easy to maintain;

* Designed rolling force collection and storage function, can monitor the rolling force curve;


Model

TOB-HRP-300

Control mode

Imported servo hydraulic proportional valve system to control pressure

Roller Size

Φ196x330mm (Diameter×Roller width)

Effective Width

300mm

Machine Speed

0.3~4m/min adjustable

Electrode Uniformity

±0.002mm(User guarantee)

Rolling Press Gap

0-3mm adjustable

Electrode thickness uniformity after rolling

≤±0.002mm, Under the premise of ensuring the uniformity of coating,

Pressure roller layout: upper and down horizontal layout

Structure

Gantry frame, each component is good plated with hard chromium treatment, no rust and paint off.

Digital micrometer display the roller gap

 Equipped with lighting device, convenient to check the rolling situation

Equipment

Composition

Imported servo hydraulic proportional valve system, pressure measuring system, AC frequency conversion motor, reducer, gear splitting box, precision coupling, pressing device, roller system, rolling machine body, protective plate, PLC touch screen, electrical control, etc.

Roller Parameter

HRC65~70, hardness layer thickness ≥15mm, round beating better than ±2μm

Roller material 9Cr3Mo, hard chromium plating surface thickness ≥0.15mm

Main Motor Power

1.5KW AC frequency conversion motor

Total Voltage Supply

Voltage single phase 220Vac ± 10%, frequency 50Hz/60Hz, 2KW

Max working pressure

Total about 40Tons

Main machine weight

About 550KG

Dimension

L1400mmxW500mmxH1300mm


Calendering Machine Touch Screen

Touch Screen



Unwinding and Rewinding device


The automatic rewinding and unwinding device is a kind of equipment which can be applied to rewinding and unwinding, The equipment has an independent automatic control system to realize automatic unwinding and rewinding functions.

It can be used for lithium battery electrode continuous roll to roll press, and can also be used for rewinding and unwinding of optical films, functional films and other coiled materials.


The main features

*Unwinding and rewinding adopt servo automatic tension control;

*Unwinding, winding design correction function, winding uniformity is good;

*The device has its own independent electrical control system;

*Unwinding and rewinding two parts of the structure;

*It can be operated on line with hydraulic rolling press machine.

Model

TOB-FSJ300

Unwinding

Adopts servo automatic tension control

Rewinding

Equipped with photoelectric automatic correction function

Accuracy

±0.5mm

Tension adjust range

0-50N

Machine Speed

Max.6m/min

Max diameter

Materials roller out side diameter : 250mm

Guide roller width

350mm

Weight

Unwinding : about 80kg

Rewinding : about 80kg

Install Dimension

Unwinding :W450mm*D850mm*H615mm

Rewinding : W650mm*D850mm*H615mm

Total Voltage Supply

Voltage single phase 220Vac±10%, frequency 50Hz/60Hz, 1KW


Unwinding and Rewinding device


Used for lithium battery electrode continuous roll to roll press


Battery Electrode Calendering Machine

Roller press machine

PRODUCT DISPLAY


continuous roll to roll press

continuous Calendering Machine


Calendering Machine


Electrode Calender Machine


Electrode Calender Machine


More Calendering Machine and Rolling Press Machine for Lithium-ion Battery Electrode
