Battery Burning Tester Fire Testing Equipment for Lithium-ion Cell

This battery burning fire tester is necessary testing equipments for various battery manufacturer, quality inspection & control department.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-8105
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Battery Burning Tester Fire Testing Equipment for Lithium-ion Cell


SPECIFICATIONS


This machine applied for battery burning resistance testing.Testing according to standard UL2054.

It is a necessary testing equipment for various battery manufacturer, quality inspection & control department. With features of easy operation, safety reliable, high accuracy,i t becomes ideal testing machine for battery burning and projectile testing.


Fix the mesh on top of the burner with 38.1mm distance,each 25.4mm mesh with 20 holes, steel wire diameter 0.43mm.

Ignition the burner, simultaneously observe the battery burning situation,till battery explode or burn out. And time the whole burning procedure.


Burner

Bunsen burner,pipe inner diameter0.375inch(9.5mm)length about 100mm

Flame Applicate Time

0~999.9s±0.1s

Flame Continuous Time

0~999.9s±0.1s

Flame Height

10~75±2mm

Testing Bar Diameter

1/4 inch(6.35mm)×14 inch(355.6mm)

Test Cover Width

24 inch(610mm)×14 inch(355.6mm),Octagonal

Test Cover Height

12inch(305mm)

Testing Aluminum Mesh Diameter

0.010 inch (0.25mm)16hole×16hole

Octagonal stainless steel net cover

Distance between each other 2 feet (610mm),Octagonal net cover height1 feet (305mm)

Testing Hole Diameter

102mm

Fire Ignition Device

Auto fire ignition

Display Method

PLC Touch Screen

Control Method

Remote control, whole test procedure fully automatic

Burning Gas Requirement

High purity liquefied petroleum gas(Customer Prepare)

Bottom

Installed with universal wheel

Observation Window

390 X 360mm(20mm thickness tempered explosion proof glass)

Timer

4 bytes display ,0~9999(Hour,Minute,Second switchable)

Inner chamber Material

SUS304 Stainless steel

Outer Chamber Material

Cold rolled powder painted

Smoke Extractor

Φ150mm on back side

Overall Dimension

W940XD780XH1620 mm(please refer the final design)

Power Source

AC 220V 50HZ

Power

2.0KW


Notices

  • Battery burning ejection test & particle test is high dangerous destructive test,testing personal must be well trained with related safety & emergency handling knowledge, avoid personal injuries.
  • Burning device should put in the filtered air ventilate chamber,pay attention the waste air exhaust should comply with related national standards.
  • Testing personal must wear smoke proof expiratory device and filter expiratory devices, avoid suction harmful gas.
  • Before burning test,should strictly check the air pipe & connections sealing performance.
  • Multi fire extinguish devices should prepared close to the testing machine.
  • During testing or the bunsen light not totally cooling down, forbid to touch the sample  burner or mesh.
  • After finishing test, should lock all the valve and well do the machine usage records, avoid air leakage of the gas tank.
  • Regularly check if the gas pipe broken or not,if broken, do stop use it,and replace with new ones.


PRODUCT DISPLAY

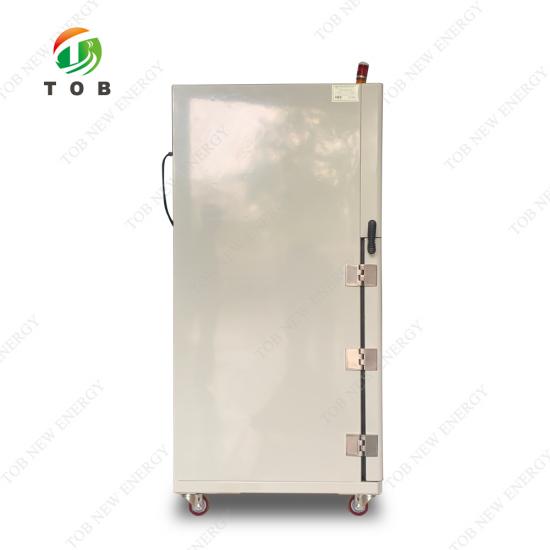

Battery Burning Tester

Battery Burning Tester
