Battery Separator Coating Machine

This TOB-W400-1.2 battery separator coating machine is used for precision coating of lithium-ion battery separators.
  • Brand:

    TOB
  • item no.:

    TOB-W400-1.2
  • order(moq):

    1
  • Payment:

    L/C, T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Battery Separator Coating Machine


SPECIFICATIONS


Functions and principles

This battery separator coating machine is used for precision coating of lithium-ion battery separators. It mainly consists of an unwinding part, a machine head part, an oven part, a traction and winding part and an electronic control part. Apply the stirred slurry evenly on the substrate to ensure that the size and weight are within the process range. After drying, it is rolled up to make preliminary preparations for the subsequent processes.


Process flow

Substrate unwinding →Tension stabilization→Micro-gravure coating→Drying→Tension stabilization→Correction→Rewinding


Substrate parameters

Item

Battery Separator

Substrate

PE, PP

Width (mm)

100~320

Thickness(µm)

8~30


Slurry parameters

Item

Ceramic slurry

Material

Al2O3

Solvent

Deionized water

Solid content(wt%)

3~15

Slurry specific gravity(g/cm3)

0.6~2.0

Viscosity(mPa.s)

500-2000


Coating parameters

Item

Battery Separator

Coating method

Continuous coating

Coating width (mm)

Max:300

Single side coating thickness(µm)

1~10

Single side coating weight (g/㎡)

10~25

Coating speed (m/min)

0.5~3


Equipment specifications

Item

Content

Roller width

400mm

Mechanical speed (no load)

Max:5m/min

Unwinding specifications

Roll diameter: Max.φ200mm.

Load bearing: Max.100kg.

Reel specifications: Inner diameter 3 inches, approximately 76.2mm, length≤450mm.

Reel material: metal, ABS plastic, paper tube.

Winding specifications

Roll diameter: Max.φ200mm.

Load bearing: Max.100kg.

Reel specifications: Inner diameter 3 inches, approximately 76.2mm, length≤450mm.

Reel material: metal, ABS plastic, paper tube.

Oven heating method

Electric heating

Oven structure

2 sections × 1.2m/section = 2.4m, single layer

Oven temperature

Max:140℃


Environmental requirements

Item

Content

Dimensions

The equipment is about L (4.0m) × W (2.1m) × H (1.9m) (width includes electrical cabinet, length does not include operating space)

Power requirements

Three-phase AC380V±10%, 50Hz, earth wire.

Equipment power: 35KW, number of main power supplies: 1.

Compressed air

Compressed air pressure:≥0.6MPa, pressure fluctuation±1% (clean air after water removal, oil-free, filtering and pressure stabilization).

Compressed air consumption: 10m³/h, number of interfaces: 1/unit.

Interface trachea specification: Φ12mm.

Environmental

Ambient temperature: 25±5℃for the coating part (according to the buyer's process requirements).

Relative humidity: 10%~30%RCH (according to the buyer's process requirements).

Cleanliness: Class 100,000 (according to the buyer’s process requirements).

Ground requirements

Total weight of coating machine: about 1.3 tons;

Cement floor or terrazzo floor, flatness±5mm/㎡, load-bearing capacity≥500kg/m2.

Oven air volume

Maximum exhaust air volume, at 140℃: positive pole 1800㎥/h, negative pole 1800㎥/h.

Maximum fresh air volume, at 60°C: positive pole 1500㎥/h, negative pole 1500㎥/h.


PRODUCT DISPLAY

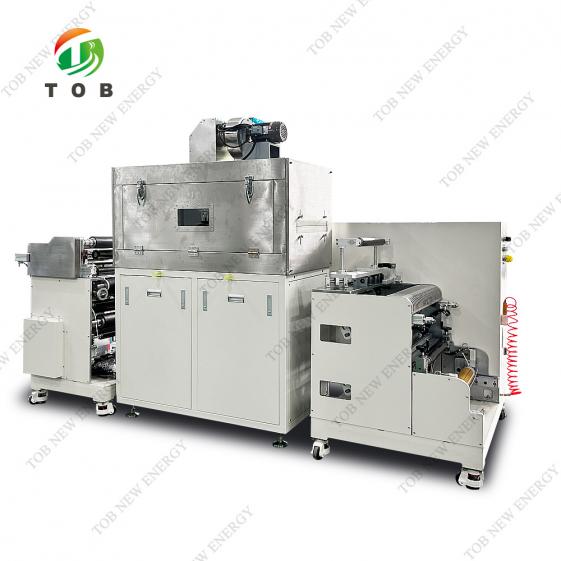

Battery Separator Coating Machine

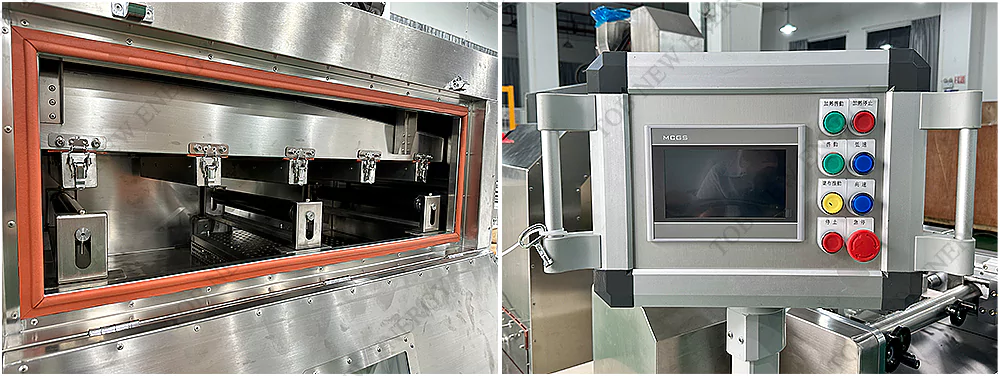

Battery Separator Coating Machine

Battery Separator Coating Machine

Battery Separator Coating Machine

Battery Separator Coating Machine
