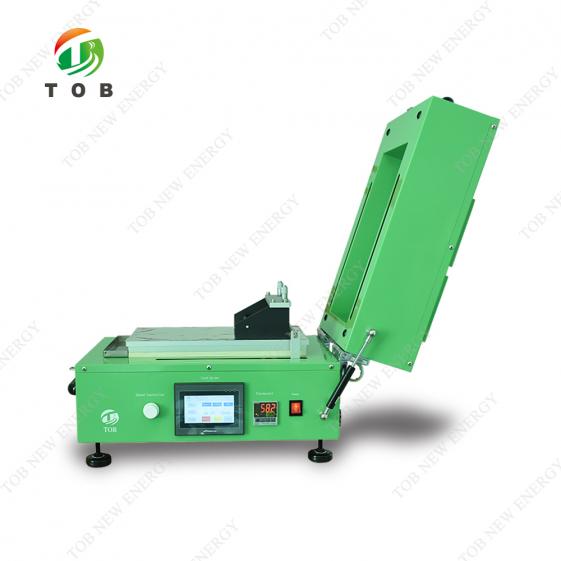

Lab Coating Machine for Sodium-Ion Battery Research

Model

TOB-VFC-150

Source voltage

AC110V-240V, 50/60HZ

Power

650W

Coating speed

0-100mm/s, Step-less transmission   Accuracy: 10mm/sec

Advantages

Supply with dry function, vacuum pump

Stroke length

10 - 250 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck

Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)

Slicker width

0-150mm

 Slicker adjustable

range

0.01-3.5mm

Heating dry system

RT-200°C, Digital temperature controller

Temperature control

accuracy

±1°C

Dimension

500*350*320mm

Weight

About 40kg

Package size

790*540*600mm

Package weight

65kg

Warranty

One Year limited warranty with lifetime support

Remark

1. One oil-less vacuum pump is inset

2. Heating system : Installed on the top cover

Built in digital temperature controller with accuracy of +/-1°C.

Suspension support helps open cover easily and safely.

Max. Heating Rate:10°C/min

Max. Heating Temp.:200°C

3. A 100mm width micrometer adjustable film applicator

Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed

Model

TOB-VFC-300

Product introduction

This product is widely used in various kinds of high temperature coating research, such as ceramic film, crystal film, battery material film, special nano film;The development of science and technology that can adapt to the future of film formation under high temperature conditions.

main features

1. Adopt large area uniform heating to ensure high precision uniform temperature in cavity.

2. Flat plate coating, motor driven scraper coating, coating speed is stable and adjustable.

3. Film speed adjustable, vacuum aluminum plate can be quickly placed or removed copper foil, aluminum foil, etc., built-in vacuum pump or access to external vacuum source, substrate adsorption without deformation.

4. Standard preparation of film, coating precision, coating thickness adjustable.

5. Can be used in glove box, easy to operate, small size, can save space.

6. PLC. Touch screen control parameters are easy to set.

Coating method

Flat plate coating, standard equipped withTOB-KTQ-250s film maker, film width 250mm(can be increased), optional scraper and other metering device (manual scraping);

Coating Stroke

About 300mm, the stroke is set and adjusted in the touch screen stepless

Coating Driven

Motor driven, coating speed in the touch screen stepless setting adjustment

Dimension(L*W*H)

L550mm×W450mm×H320mm

Coating Speed

0～120mm/s(Such as iron phosphate lithium slurry)

Vacuum plate

Aluminum plate with vacuum

Warranty

One Year limited warranty with lifetime support

 Size of Vacuum plate

L415mm×W300mm×H32mm

Blade thickness adjustable range

0～6mm adjustable

precision

±3 um, the optional table shows 1 um micrometer

Heating drying system

Room temperature ~ 130℃, digital display temperature controller, precision±1℃

Vacuum pump

1 built-in oil-free vacuum pump

Power

220V/50Hz

Weight

70KG

Operating procedures

1. Put the Electrode on the vacuum plate, start the power supply, open the vacuum, the electrode adsorption on the vacuum plate.

2. Place the film applicator on the electrode and add the coating slurry.

3. Open the film, the film device automatically pushes the film applicator to move, automatic film.

4. Take out the film applicator and push rod, cover with the heating cap, set the heating temperature and time, and heat and dry.

5. After drying, open the heat cover, take out the coated film electrode, film device reset complete.

Maintenance method and matters needing attention

1. Every time before work to use a soft cloth with alcohol carefully wipe the film head, the body, keep clean.

2. Film head, differentiator and other high-precision parts of the use do not collide, gently take gently, differentiator to adjust the left and right to be symmetrical and even.

3. Regularly check screws, nuts, pins and other fasteners in various parts to prevent looseness and prevent product quality accidents.

Model

TOV-VFC-800

Coating speed

0～200mm/s

Max Stroke

The stroke can be adjusted by the stroke switch between 0～800mm

Vacuum plate

With vacuum aluminum plate

Vacuum plate size

L900mm×W200mm×H32mm

Adjustable range of scraper

0.01～3.5mm

Heating and drying system

Room temperature～130℃, digital display temperature controller, accuracy±1℃

power supply

220V/50Hz

Weight

70KG

Dimensions

L1000mm×W350mm×H320mm

Standard accessories

Applicator , Crossbar, Collection box
