Laboratory Jet Mill for Dry Electrode Powder

Brand:
TOB NEW ENERGY
item no.:
TOB-WF-10M
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

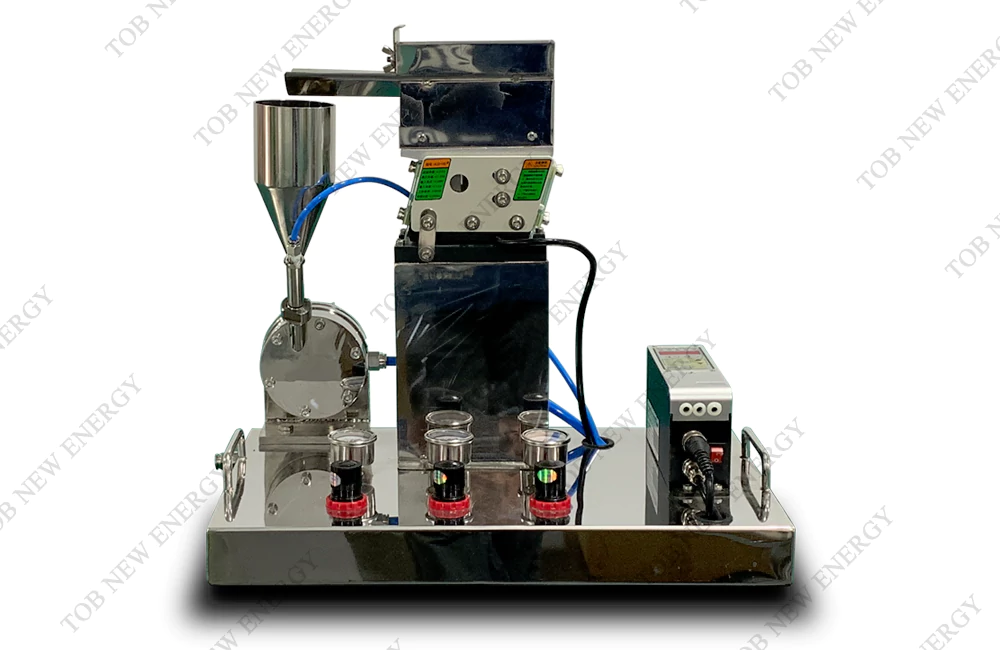

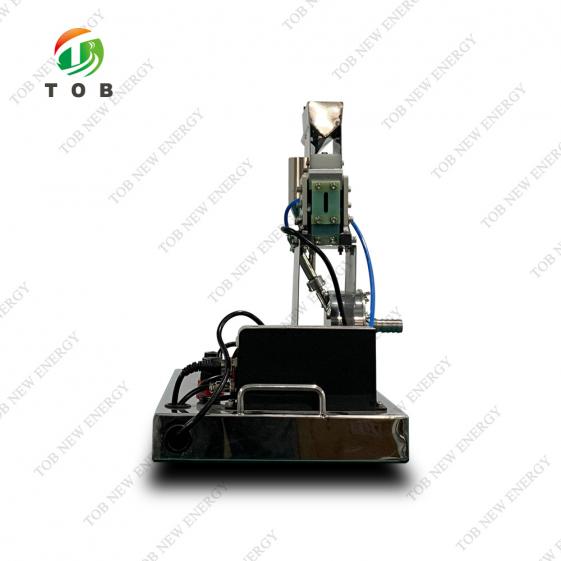

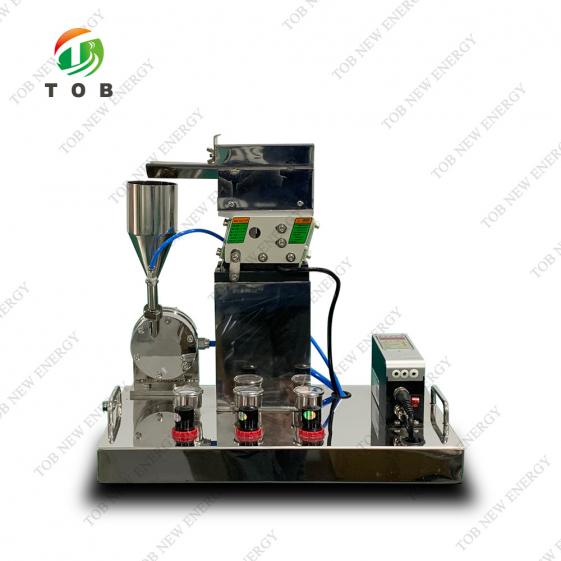

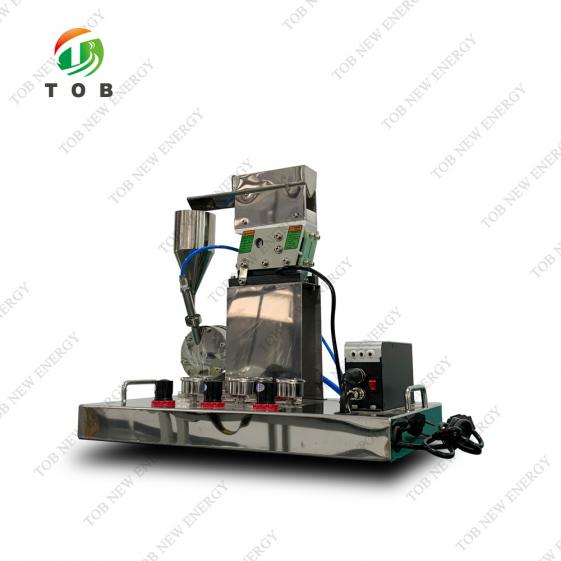

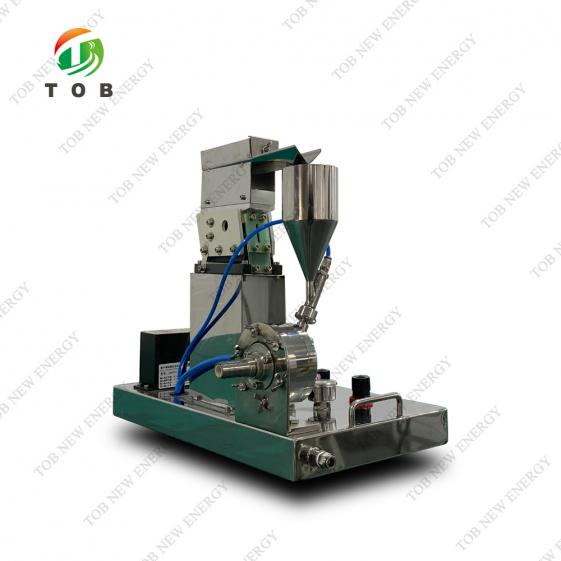

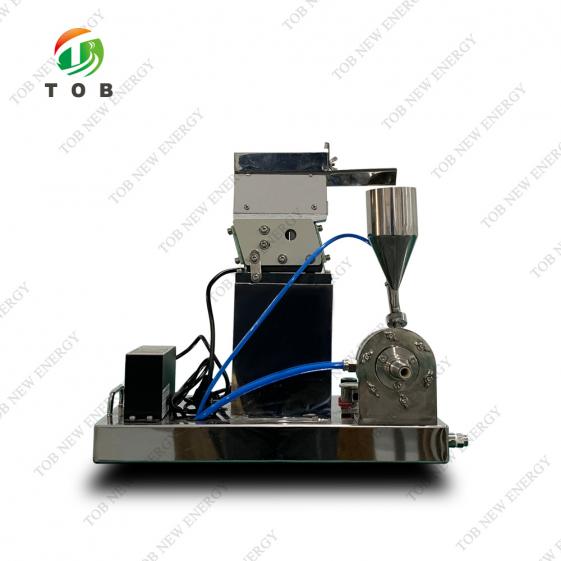

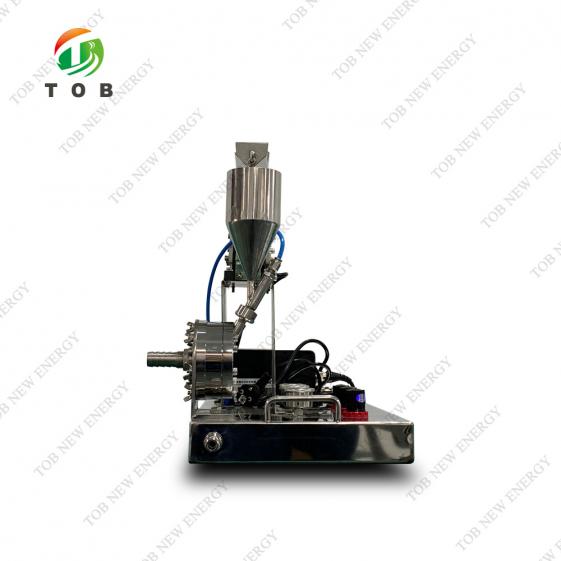

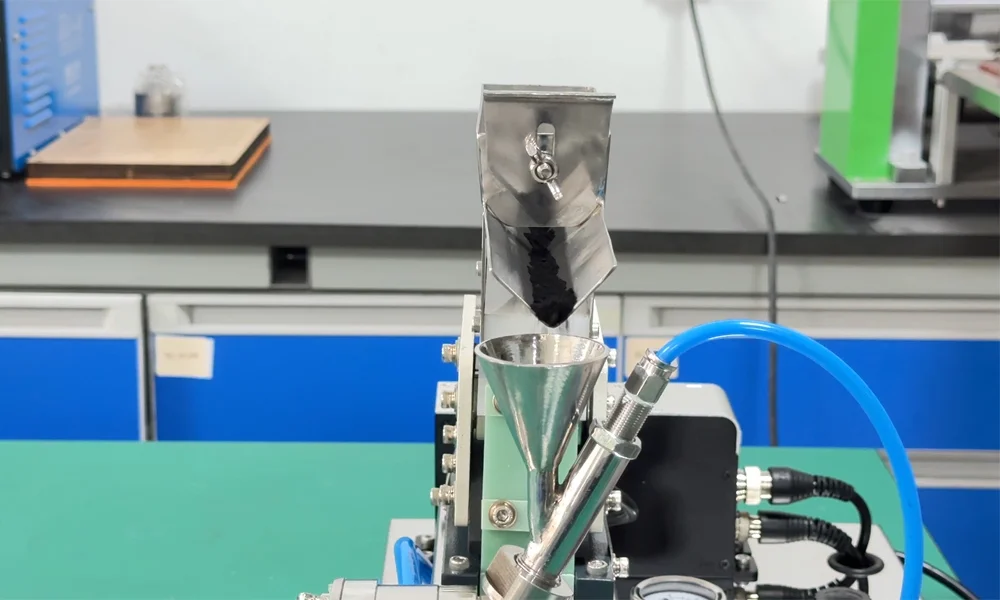

Laboratory Jet Mill for Dry Electrode Powder

SPECIFICATIONS （TOB-WF-10M-316/304）

Material Optional: (Contact us for a quote)

304 ceramic lining

316 material

1. Working principle

The spiral air flow crushing is that the high-speed air flow drives the material to collide with each other in the grinding chamber in the tangential direction, and the material is broken under the comprehensive force such as shear. After the compressed gas is released instantaneously through the Laval nozzle, the heat absorption effect is generated, and the heat generated in the crushing process is taken away, so that the material can be crushed at low temperature.

2. Performance characteristics

Specially suitable for R&D new product research and development

Spiral air mill is a special manufacturing device for crystal structure

Can be crushed product particle size D50 2~100 microns

Small batches (5g) of materials can be processed efficiently, with maximum production depending on material properties and particle size requirements.

It can reach 100g~500g/h, and the maximum output of easily crushed materials can reach 1000g/h.

3、Design features:

★ Easy to clean overall design, no dead corners or gaps, no welding points.

★ Low loss rate, high yield (> 95%).

★ Compact for laboratory or benchtop operation.

★ The nozzle ring and the bottom of the mill can be separated, and the nozzle is designed in the nozzle ring.

★ Separate connection for compressed air injection for grinding, independent pressure regulation.

★ The system can be completely disassembled without tools for easy cleaning.

★ Vibratory feeding is used, or manual feeding is optional (custom)

4、Power and compressed air

Power: 220V ，50HZ

Compressed air volume: 1m3/min, pressure 0.6mpa

5、Material

Unless otherwise specified, all are made of 304 stainless steel

6、Equipment composition:

NO	Name	Configuration	Remark
1	Feeding system	- Surface precision polishing - Feed rate is adjustable by frequency conversion - The volume is about 1L - The joints are clamped, easy to disassemble and clean
2	Screw type air flow pulverizer main machine	- All connecting parts adopt quick-mounting structure, convenient disassembly and assembly - The grinding body is composed of 3 parts, and CNC machining makes no rotating parts - Smooth inside without dead Angle, easy to clean and disinfect - The inner surface is treated with ceramic lining, and the outer surface is made of 304 stainless steel - Suitable for clean laboratory use, no dust spillover - Fluidizing cavity optimized flow field design and improved particle size stability of 1 nozzle ring - Install 4 supersonic nozzles, the material in the fluidization,instant crushing - Nozzle ring replaceable, easy to disassemble and clean
3	Pneumatic accelerator	- 1 Laval nozzle and 1 Venturi nozzle. - No dead angle, easy to disassemble and clean. - The interface adopts quick-loading type.
4	Product tank	- Volume about 1L. - Clamp connection, easy to disassemble and clean.
5	Electrical control box	- Carbon steel spray shell. - Including pressure gauge, pressure reducing valve, speed control button, time relay and all electrical components. - Including all connecting lines and push-in fittings from the control box to the pulverizer. - PU material air pipe.
6	Support pedestal	- SUS 304 - Bracket height adjustable with 2 handles. - Base with 4 rubber pads.
7	Air source system	- 1m。/min,0.6MPA	Customer supplied

PRODUCT DISPLAY

Laboratory Jet Mill

Dry electrode solution, project design, equipment and materials supply.

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
