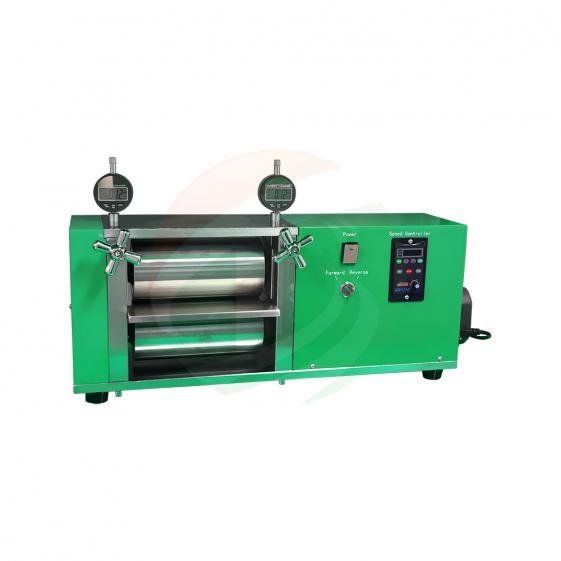

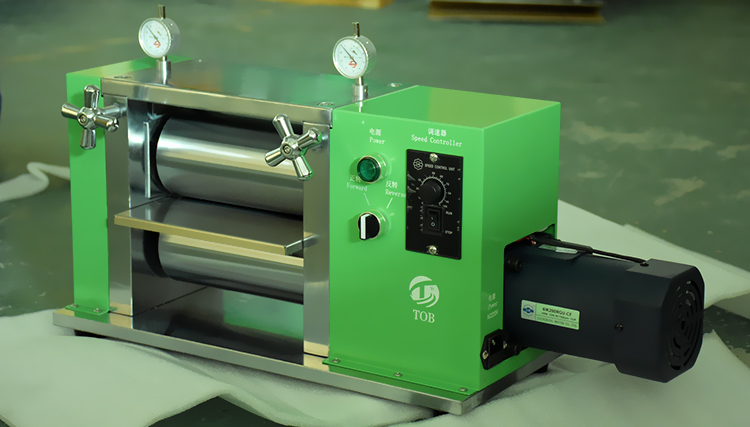

Electric Lab Roll Press Machine 100mm Width

Model

4" Width(100mm) Lab Roll Press Machine TOB-DG-100L

Working Voltage

110V / 220V AC single phase selectable

Power

120W Total

Warranty

One year limited manufacture warranty with lifetime support

Structure

1 Heavy duty steel frame, gears and handle

2 Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 62)

with Cr electroplated coating

3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

4 Equipped with a transparent protective plate, the use of security

Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 62)

with Cr electroplated coating. With finish > 0.8

Rolling press accuracy

≤±0.005

Rolling press thickness

0-2mm adjusted with Dial gauge

Rolling press width

Max 100mm

Rolling press speed

0-40mm/s adjustable

Product Dimensions

650 mm(L) x 280mm(W) x 300mm(H)

Weight

55kg (180 lbs)

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of

the materials. Here are some results from our test:

Sample testing is available upon customer's request
