Electrode Performance Tester

The wet film wheels use the scale of the wheel-rail eccentric wheel to obtain the wet film thickness, expressed in μm.

This manual coating adhesion tester is used to measure the adhesion of various coating films to the surface of the object to be coated.

This cylindrical mandrel bend tester is suitable for testing the flexibility of the lithium ion battery electrode.

TOB-ERT-F02B four-probe electrode coating resistivity tester for battery foils. Measures coating resistivity and vertical sheet resistance via four-terminal method. 1µΩ–20kΩ range, 0.5% FSB accuracy. Get specs and application guidance.

TOB-LL-1D universal tensile strength testing machine is used for lithium ion battery foil material (copper foil, aluminum foil, electrode, welding effect) and other related products of 180 degree peeling performance test.

TOB-BLY2510 used for lithium ion battery foil material (copper foil, aluminum foil, electrode, welding effect) and other related products of 180 degree peeling performance test.

TOB-HVM-3020MC manual vision measuring instrument for lithium battery electrode burr inspection after slitting/die-cutting. 300×200mm travel, 2+L/200 µm accuracy, 40–500X. High-definition imaging for edge burr measurement.

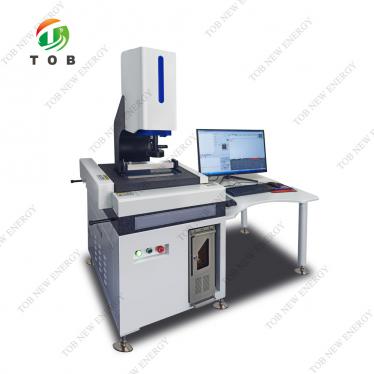

TOB-3020MC-A fully automatic burr measuring instrument for lithium battery electrode edges: 300×200×300mm travel, (2+L/200)µm XY accuracy, CNC software, auto/rotating fixture options. 40–500× imaging for electrode burr QC.

This Karl Fischer Moisture Titrator can fully cover the lithium battery industry from anode and cathode materials, electrode, separator and electrolyte. Moisture ranges from 1ppm to 100% of use requirements.

Automatic Coulometric Karl Fischer Titrator For Laboratory Research Equipment SPECIFICATIONS 1 TOB-AKF-C-2020Automatic Karl Fischer Titration is an Intelligent moisture tester adopting coulometer method. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation. 2 It can be used for analyzer water in many industries fields such as Medicine, organic solvents, industrial salt, petrochemical industry, chemical fertilizer, agricultural medicine, dyes, food and beverage, surface active agent, cosmetics and so on. 3 This Karl Fischer Moisture Analyzer used for lithium battery industry mainly used for powder materials and electrolyte moisture analyzer Model Automatic Karl Fischer Titration  TOB-AKF-C-2020 Voltage source AC110V/220V, 50/60HZ Power 50W Warranty One year limited warranty with lifetime support Testing method Karl Fishcer Coulometer method Diplay mode 5.6 Inch color LCD touch screen Testing range 10ppm-20% (2ug-150mg H2O) Testing accuracy  0.1ug Testing error 0.3% Sampling mode Volume, Weight, Dilution Speed adjusting Program control stepless speed regulation Calculate function  %, ppm, mg/l               Operating temperature 5-40℃ Working humidity ≤85% Dimension(L*W*H)  320*310*160mm Weight 7.3kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

TOB-AKF-3Automatic Karl Fischer Titrationis an Intelligent moisture tester adoptingcoulometermethod. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation.

TOB-AKF-1 Karl Fischer Moisture Analyzer is an Intelligent moisture tester adopting volumetry method. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation.

TOB-AKF-2010karl fischer titratoris an Intelligent moisture tester adopting volumetry method. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation.

TOB-ZDJ-5 type automatic titrator is a kind of high precision laboratory analysis instruments.
