Other Battery Lab Research Equipment

Hot Products

TPB offers a full set of battery and supercapacitor safety tester. Including the short test, nail test and heating test.

  • China Leading Horizontal Computer Control Power Battery Crush Testing Machine Manufacturer
    Horizontal Computer Control Power Battery Crush Testing Machine
    Horizontal Computer Control Power Battery Crush Testing Machine  SPECIFICATIONS 1.Technical requirements Model Horizontal Computer Control Power Battery Crush Testing Machine   TOB-BE-AP-6045 Source voltage 3∮5W  380V 50HZ 5000W Dimension(W*D*H) 2500W*1000D*1000H MM Weight 1500kg Max pressure 10t,20t, 50t,80t Battery size 500W*500D*500H MM,Customized 1000*1000*1000 or bigger Force error ±1% Drive mode Electro-hydraulic servo drive Extrusion speed 0.1~500MM/S(Adjustable) Unit Conversion kgf,lbf,N,KN,Kpa,Mpa Stroke Resolution 0.005mm Data collection frequency 200times/S Signal transmission mode RS 232 or USB Test hole On the left,50mm diameter hole attached a stainless  steel lid Visual window Double-proof glass800*300MM and affixed with  explosion-proof film, and with steel mesh 2.Standard configuration Host  1set Brand computer 1set Color Inkjet Printer 1set Surveillance camera system 1set Voltage acquisition system 1set 8 channels temperature acquisition system 1set Special - shaped extrusion plate 1set Round-shaped extrusion plate 1set Operating Instructions 1set Factory inspection report 1set  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • Computer control Power Battery Crush Testing Machine
    Computer Control Power Battery Crush Testing Machine
    Computer Control Power Battery Crush Testing Machine SPECIFICATIONS 1.Technical requirements Model Computer Control Power Battery Crush Testing Machine   TOB-BE-6045C Source voltage 3∮5W  380V 50HZ 5000W Dimension(W*D*H) 1200W*1100D*1800H Weight 1500kg Max pressure 10t,20t,30t,50t,80t,100t Force value Resolution 1/100,000 Force error ±1% Drive mode Electro-hydraulic servo drive Extrusion speed 1~200MM/S(Adjustable) Unit Conversion KG/N/LB Test space 600W*600D*600H MM (customized) Voltage acquisition frequency 200times/S Temperature acquisition frequency 2 channels,2times/S Test hole On the left,50mm diameter hole attached a stainless  steel lid Visual window Double-proof glass300*300MM and affixed with  explosion-proof film, and with steel mesh 2.Standard configuration Item Quantity Host and protective box 1set Computer Cabinets 1set Lenovo computer 1set Surveillance camera system 1set Voltage acquisition system 1set Temperature acquisition system 1set Wavy extrusion plate 1set Round-shaped extrusion plate Customizable Factory inspection report 1set Stainless steel tray 1set  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • Battery Nailing Needling and Crushing Testing Machine
    Battery Heavy Impact and Needling and Crushing Testing Machine
    Battery Nailing Needling and Crushing Testing Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Model Battery Nailing Needling And Crushing Machine TOB-BE-6048 Testing space W200*H200*D200mm Testing box dimension W1480*D720*H2040mm Controller dimension W500*D500*H1200m Source voltage AC 380V, 50HZ Power 2000W Weight About 450kg Falling Ball weight 9.1kg、10kg Falling Ball height 610~1000mm(Digital can be set) Bar Diameter 15.8mm or 7.9mm(can choose) Power test model Electric、Free fall Pressure range 1KN~15KN(Standard is 13KN) Upper platen diameter 150mm(no less than 20cm2) Power error range 1%Up and down Needing speed 10~150mm/s(stay speed can be control) High temperature needle Diameter Delay function 0~9999second  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Battery Crush Testing Machine Manufacturer
    Battery Crush Testing Machine
    Battery Safety Testing Equipment Li-ion Battery Extrusion Test Machine SPECIFICATIONS TOB-BET-6045Battery Crush Testing Machineis a professional battery safety testing equipment, It tests battery safety performance through extrusion test, the battery should be no fire, no explosion after extrusion. It is the indispensable testing equipment for various battery manufacturers and research institute. Model Battery Crush Testing Machine  TOB-BE-6045 Source voltage AC 380V, 50/60HZ Power 1500W Warranty One Year limited warranty with lifetime support Dimension(W*D*H) 680*570*1740mm Weight 200kg Controller dimension (W*D*H) 330*330*1040mm Max pressure 1000N-13KN, Customized   Upper pressure plate diameter 15cm Pressure error 1% Power model Hydraulic Max test space (D*W*H) 200*200*200mm View window dimension 200*200mm, 10mm thickness Double explosion-proof glass Anti explosion case Bottom is provided with four universal wheels, and can move freely Exhaust fan port 15mm diameter PACKAGE AND SHIPPING 1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. SERVICES 1 We supply machines with battery technology support. 2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. We cooperated with each other, and we will do TOP OF THE BEST battery  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Battery Needling and Crushing Testing Machine Manufacturer
    Battery Needling and Crushing Testing Machine
    Professional Battery needling and crushing machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Model Battery Needling And Crushing Machine TOB-BNCT Warranty One Year limited warranty with lifetime support Dimension 750*650*1900mm Weight 250kg Controller dimension 330*330*1040mm View window dimension 200*200mm, 10mm thickness Double explosion-proof glass Source voltage AC 380V, 50HZ Power  1500W Needling/Crushing mode Hydraulic Force range 1-15KN,±1% accuracy Plate diameter  150mm Max testing size 200*200*200, adjustable High temperature resistant steel needle φ3mm φ5mm φ8mm Needling speed 0-80mm/s, adjustable,  Delayed function 0-9999s can be set Anti explosion case Bottom is provided with four universal wheels, and can move freely Exhaust fan port 15mm diameter  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Battery internal short-circuit integrated testing machine Manufacturer
    Battery internal short-circuit integrated testing machine
    Battery internal short-circuit integrated testing machine For lithium battery safety performance testing SPECIFICATIONS 1.Temperature control box technical specifications Temperature range 0℃~+100℃ Analytical precision 0.01℃ Temperature fluctuation ±0.5℃ Temperature uniformity ±2.0℃ Temperature rising rate Average 3℃/min(from 0℃ to 100℃、Nonlinear load) Temperature falling rate Average 1℃/min(from 1000℃ to 0℃、Nonlinear load) Within the box size W600*H750*D500MM Within the box material Mirror stainless steel plate,the bottom reinforcement Carton size W1500*H1750*D1000MM Carton Material Stainless steel or cold rolled steel paint treatment 2.Shield prick test specifications Max load 200kg Force value resolution 1/10000 Force accuracy ≤0.5% Force value magnification 1/1000 Displacement resolution 7-speed automatic switch Displacement accuracy ≤0.5% Shield thorn 10*10MM Speed Range 0.01~20MM/S Effective stroke 150MM(Without holder) Test largest plane 300*300MM(Customized) 3.Voltage data collection Voltage data collection range 0~20V,Acquisition frequency 100HZ/S Voltage resolution 1MV Stop voltage range can be set 0~20V  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading High current battery short circuit testing machine Manufacturer
    High current battery short circuit testing machine
    High Current Battery Short Circuit Testing Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Type TOB-BE-1500A TOB-BE-2000A TOB-BE-5000A Short circuit current 1000A、1500A 1000A、2000A 2000A、5000A Temperature  explosion - proof box 0~100°C can be choose DC Response Time ≤5us Device resistance ≤5mOhm Remote distance 7m No solid obstacle Short circuit time 1~9999S or 1M~99H59M can be set Dimension W650*D730*H970mm Explosion-proof box size W1000*D1000*H1000mm,thickness:8mm Power supply AC220V 50HZ Power 1.0KW Weight About380Kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • battery short circuit testing machine
    Battery short circuit testing machine
    Battery short circuit testing machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Type   TOB-BE-1000A Short circuit current   500A 、1000A can be choose DC Response Time   ≤5us Device resistance   ≤5MOhm,can customized Remote distance   7m No solid obstacle Short circuit time   1~9999s or 1M~99H59M can be set Dimension   W650*D730*H970mm Explosion-proof box size   W500*D500*H500mm, thickness:5mm Power supply   AC220V 50HZ Power    1.0KW Weight   About 180Kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Temperature Control Battery Short Circuit Tester Manufacturer
    Temperature Control Battery Short Circuit Tester
    Lithium Battery Short Circuit Tester With Temperature Control Function For 0-70℃ SPECIFICATIONS Model Temperature control battery short circuit tester TOB-BSCT-TC Warranty One Year limited warranty with lifetime support Source voltage AC 220V, 50HZ Power 3000W Short-circuit tester dimension 600*800*970mm Thermostatic explosion-proof box  500*550*500mm Weight 220kg Short-circuit current 1000A  DC response time  Less than 5us Resistance  Less than 5mΩ, customized   Remote-controlled distance  7M No barrier  Temperature range  0-70℃, adjustable Temperature fluctuation ±1℃ Temperature error ±2℃ Short-circuit time 1-9999s can be set Anti explosion case Bottom is provided with four universal wheels, and can move freely  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Battery burning test machine Manufacturer

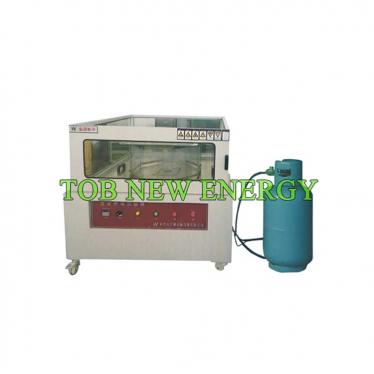

    Battery burning test machine
    Battery Burning Test Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Model Battery burning test machine TOB-BE-6046 Dimension W1100*D1030*H1110mm Source voltage AC 220V, 50HZ Power 2000W Weight About 180kg Burner Bunsen burner,Tube diameter9.5mm,length:100mm Flame burning time 1~9999S  or  1~99H59M(can be set) Flame burning height 10~75±2mm Test hood width 305mm*355mm,Octagons Test hood height 610mm Remote control distance 7M,No solid obstruction Burning gas High-purity liquefied petroleum gas(Self-Ready)  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • Temperature cycling testing machine

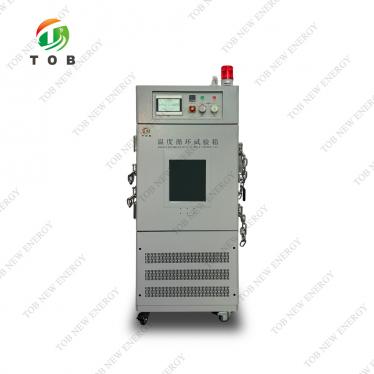

    Battery Temperature Cycling Testing Machine
    Battery Temperature Cycling Testing Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Type BE-HLK -80M3 BE-HLK -150M3 BE-HLK -225M3 BE-HLK -408M3 BE-HLK-800M3 BE-HLK -1000M3 Within Volume 80L 150L 225L 408K 800L 1000L Within Feet(cm) 40*50*40 50*60*50 50*75*60 60*85*80 100*100 *80 100*100 *100 Working environment +5~+35℃ Heater Nickel-cadmium alloy strip heater Blower Centrifugal fan Airflow mode Broadband type forced air cycle (up out,down in) Condensing mode Air-cooled or water-cooled Temperature range -40℃~+150℃ Temperature fluctuation ±0.5℃ Rise time -40~+80℃<30min,4℃/min Average,rise and fall speed customizable Fall time +80~-40℃<30min,4℃/min Average,rise and fall speed customizable Box material Inside:Mirror stainless steel                    Outside:Mirror stainless steel or Steel spray Insulation material Rigid polyurethane foam Controller “8”show:TEMI880 Color touch smart programmable controller(Chinese-English Convertible) “3”show:TEMI300 LCD keypad controllers(English Display) Cooling system France Taikang hermetic compressors(Environmentally friendly refrigerant)   Protection device Compressor overheating, over-current, over-voltage, heating nothingr burning, over-temperature alarm system inside Power AC3∅5W 380V Standard configuration A viewing window,∅50mm Test hole,Sample holder 2set,Inside lights 4 Mobile working wheels Option Communication port,Logger,Built-in glass doors or operation hole  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • High And Low Temperature Chamber
    High and Low Temperature Alternating Test Chamber
    50L High and Low Temperature Alternating Test Chamber For Battery SPECIFICATIONS High and low temperature test chamber is suitable for the electrical, electronics, instrumentation, automotive electronics, electronic components, materials and other products, in the high and low temperature environment adaptability under the condition of storage and use, suitable for schools, factories, military, scientific research, and other units, to detect all kinds of electronic elements in high temperature, low temperature, alternating high and low temperature environment of various performance indicators Model High and Low Temperature Alternating Test Chamber  TOB-GD4005 Working chamber size (D*W*H) 350mm*360mm*400mm Dimension (D*W*H) 890mm*890mm*1610mm Temperature range -40℃-150℃ Temperature fluctuations ±0.5℃ Temperature uniformity ≤±2℃ Heating up time 3-5℃/min Cooling time 0.7-1℃/min Power 3.8kw Voltage AC110V/220V with grounding protect Advantages 1 Screen simple operation, easy to edit program, no key presses. 2 With 99 groups, 24 section, 99cycles of program capacity,  each step with time setting up to 99 hours and 59 minutes. 3 Heating, cooling and totally independent, can improve the efficiency and reduce the test cost,  increase longevity, reduce the failure rate  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Battery Nail Test Manufacturer
    Battery Nail Test
    Penetration battery nail tester for lithium battery pouch cell safety performance testing SPECIFICATIONS Model Battery Needling Testing Machine TOB-BNT-9002 Warranty One Year limited warranty with lifetime support Dimension 900*1460*500mm Weight 150kg Controller dimension 330*1040*330mm View window dimension 200*200mm, 10mm thickness Double explosion-proof glass Source voltage AC 110V/220V, 50HZ Needling mode Pneumatic  Needing force 150-200kg,±1% accuracy Max testing size 200*200*200, adjustable High temperature resistant steel needle φ3mm and φ8mm Needling height 150mm Needling speed 10-40mm/s, adjustable,  Through the perpendicular to the battery plate direction pierce the battery,  stop (1min~6hour) automatically from a battery pull, easy disassembly. Anti explosion case Bottom is provided with four universal wheels, and can move freely Exhaust fan port 15mm diameter  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Power Battery Nailing Testing Machine Manufacturer
    Power Battery Nailing Testing Machine
    Power Battery Nailing Testing Machine for lithium battery pouch cell safety performance testing SPECIFICATIONS Model Power Battery Nailing Testing Machine TOB-BE-9002D Pressure range 1000N~5000N Customized Dimension W1000*D800*H2100MM Weight 250kg Controller dimension W350*D350*H1040MM View window dimension 800*300MM double explosion-proof glass Source voltage Three-phase 5W ,380V, 50HZ Power 1KW Nailing mode Hydraulic pressure Nailing force ±1% accuracy Max testing size 500W*500D*500H MM adjustable Nailing speed 10-40MM/S, adjustable, Nailing speed error ±0.1MM/S Unit Conversion Kg/N/Lb Test hole 50 mm diameter test hole on the left,  attached a stainless steel lid  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
  • China Leading Horizontal power battery needling testing machine Manufacturer
    Horizontal power battery needling testing machine
    Horizontal power battery needling testing machine SPECIFICATIONS 1.Technical requirements Model Horizontal Power battery needling testing machine TOB-BE-AP-9002D Pressure range 1000N~20000N Customized Dimension W2400*D1000*H1200MM Weight 500kg Testing space W1000*D500*H500MM Customized Power 2500W Needling mode Oil pressure Needling force ±1% accuracy Needling speed 10-40MM/S, adjustable, Needling speed error ±0.1MM/S Unit Conversion Kg/N/Lb 2.Standard configuration Needling host A set Protective case A set Needling holder A set Big battery fixing clip A set White steel needle/ Tungsten steel needle A set Surveillance camera system(Optional) A set Voltage acquisition system(Optional) A set PACKAGE AND SHIPPING 1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. SERVICES 1 We supply machines with battery technology support. 2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. We cooperated with each other, and we will do TOP OF THE BEST battery  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
    read more
first page 1 2 last page
[  a total of  2  pages]
