Battery Safety Tester Thermal Abuse Test Chamber

Battery Safety Tester Thermal Abuse Test Chamber

SPECIFICATIONS(TOB-8103)

Applications

Mainly applied for industrial products drying, thermal treatment etc.

Features

- External with SECC steel plate, powder paint treatment; Inner with SUS stainless steel.

- High temperature resistant long axis motor.

- Turbo-fan.

- Silicon packing.

- Over-temperature protection, over loading auto power cut off system.

- Cycling system: forced flat air cycling.

- Heating system: PID+S.S.R.

- Temperature controller: PID microcomputer control, automatic constant temperature, quick temperature compensation function.

- Time function: when temperature reach the setting temperature, alarm for cut off power.

- Glass observation windows optional, customize according to customer requirements.

Technical Parameters

Air Supply System

- Forced Air Conveying circulation design. The air source generated by circulation motor driving the wheel and force the air pass through the heater to convey the hot air into the drying chamber while the used air can be inhaled to the air channel as the air source and be heated again. This way is taken to reduce the energy loss and assure the temperature in uniform distribution in the chamber. If any disturbance of door open or close, this air conveying and circulation system can recover the operational temperature value in a short time.

- Long axis high temperature resistant motor, power 1HP50Hz.

- Blower with multi-impeller turbo type, high strength, inner installed with adjustable air flow plate, make the air channel smoothly.

Notices

- Pay attention to use correct voltage, only for the voltage marked on the machine, avoid electric wire flaming due to over power.

- When big difference between display temperature and actual temperature, cannot adjust the components on the circuit board, please contact supplier for handling.

- During operating, if with large temperature change, please not open the machine.

- Avoid putting it in moisture place, avoid electric leakage.

- Not wash directly with water, avoid electric leakage.

- Prevent to put easy flaming, explosion materials like alcohol etc., and easy volatile materials inside the chamber, to avoid accident.

- No flaming subjects close to the machine, avoid accident.

- Put the subject into the chamber carefully.

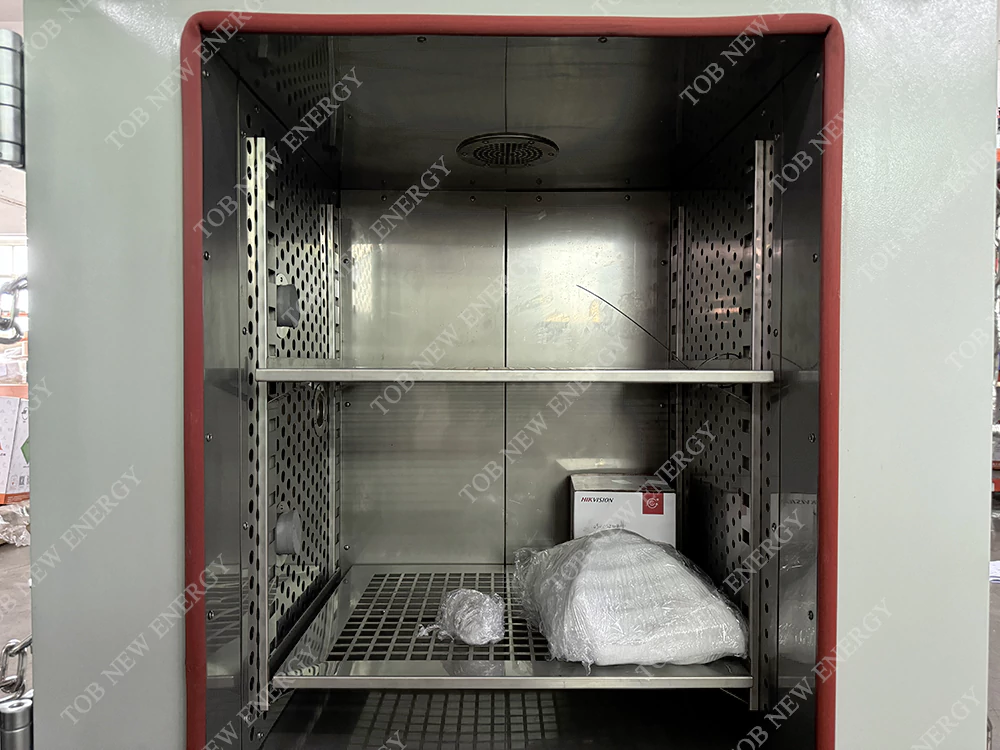

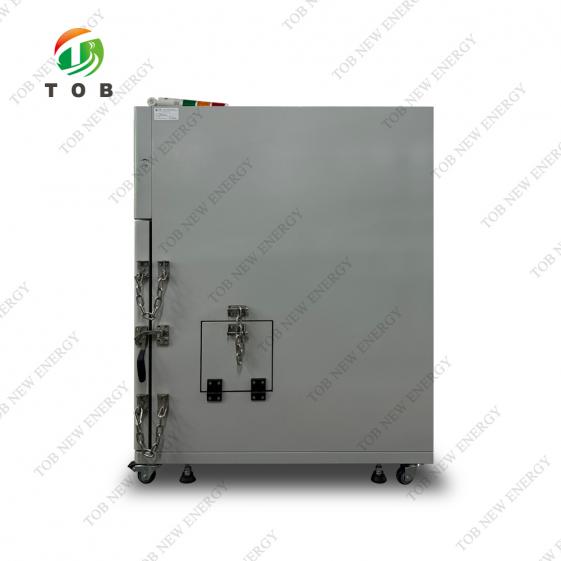

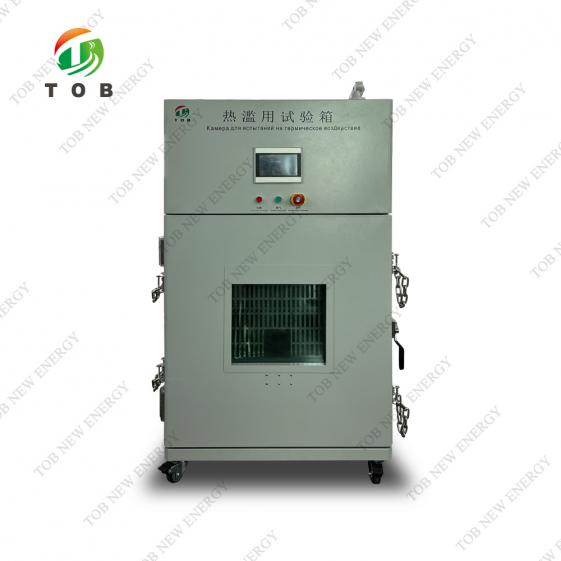

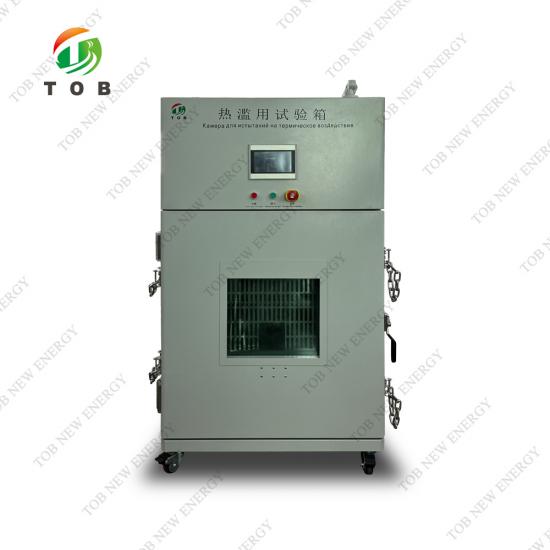

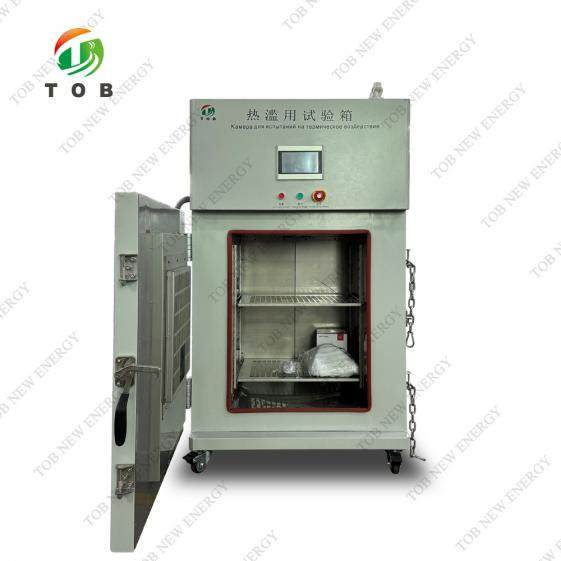

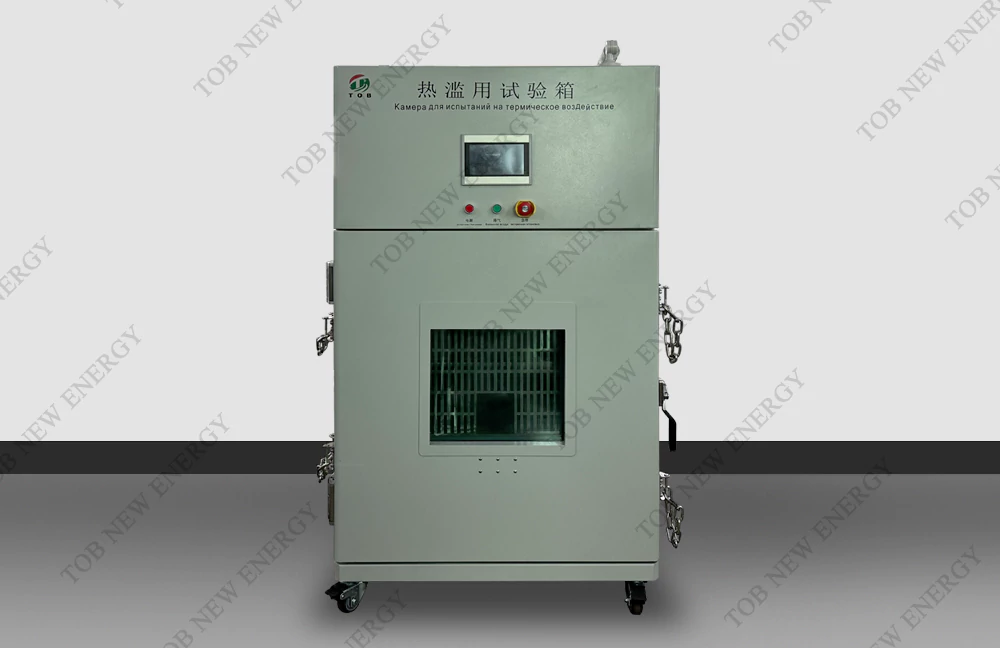

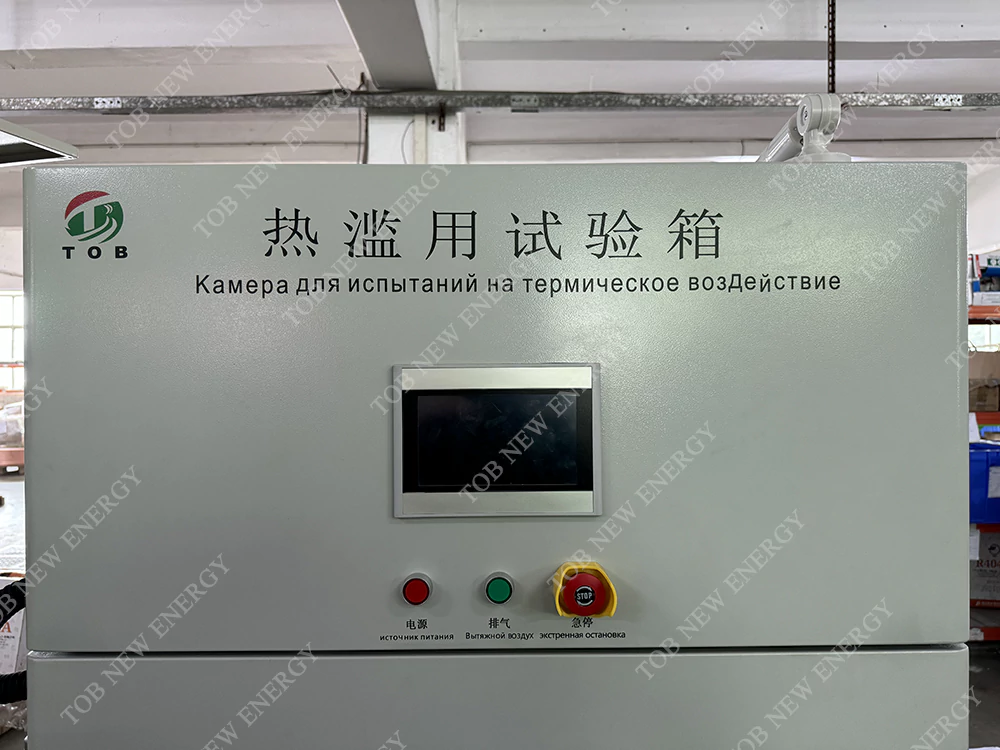

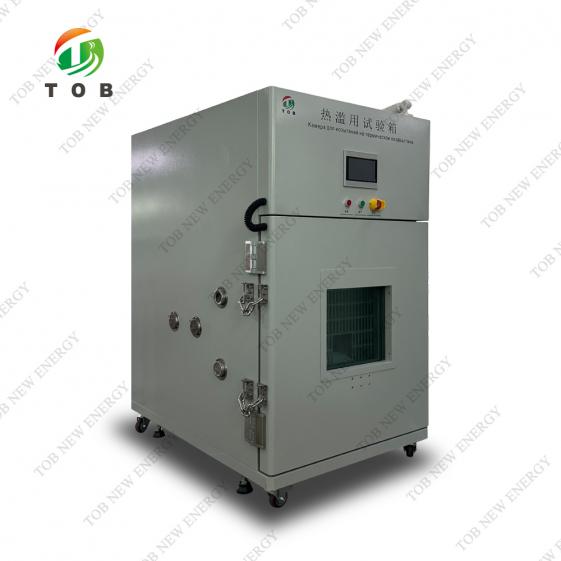

PRODUCT DISPLAY
