Battery Impact Tester for Battery Safety Testing

This TOB-8106 battery impact tester is specially designed for testing battery safety performance through different hammer and different stress areas from different height. The battery verifies as qualified on the condition of no flames or explosion after this heave impact test.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-8106

  • order(moq):

    1

  • Payment:

    L/C, T/T

  • product origin:

    China

  • shipping port:

    XIAMEN
inquiry now
Product Detail

Battery Impact Tester for Battery Safety Testing


SPECIFICATIONS(TOB-8106)

Application

This TOB-8106 battery impact tester is specially designed for testing battery safety performance through different hammer and different stress areas from different height. The battery verifies as qualified on the condition of no flames or explosion after this heave impact test.


Features


  • Standard configuration with 9.1kg  heavy and diameter of 15.8mm crossbar ( to meet different standards)
  • Encoder displays the height with intelligent control 0～700mm controllable(easy to operate)
  • Double column design with the heavy drop free to reduce the friction between the heavy and wall around and ensure an safety
  • Air vents is designed with to discharge the smell from test room
  • Dual- layer explosion-proof viewing glass, explosion chamber with independent controller, easy to operate



Technical Parameters

Drop Ball Weight

9.1kg

Dropping Height

0~700mm (The heavy can raise to a height and release to ensure the heave drop free without incline and swing）

Control Method

PLC Touch Screen Control+ Remote Control

Crossing Bar Diameter

15.8 mm (Place on central position in cross direction and the heavy bar and steel bar is parallel to battery bottom）

Effective Test Spacer

W300 X D300 X H300mm

Internal Material

SUS 304# Stainless steel

External Material

Cool-Rolled Plate ( thickness 1.0mm)

Air Vent

150mm, on the top of back of chamber

Chamber Gate

Single Door, Viewing Window, cold-rolled door lock

Viewing Window Size

390 X 360mm(20mm Dual layer glass explosion proof film)

Elevating Method

Motorized

Top/bottom impact surface

Steel Plate

Chamber Size

W940 X D780 X H1620mm(please refer the final design drawings)

Power Source

AC 220V

Power

2.0KW

Gross Weight

About 250KG


Accessories

9.1Kg Heavy

1pcs

15.8mm crossing bar

1strip

Battery Fixture

1set

User Manual

1Copy



Impact Test Method

Test specimens is placed on a plane. A bar with its diameter at 15.8mm placed on the central position of test specimens in cross direction. A heavy of 9.1kg drop free from a height of 610mm down to the test specimens. Each test specimen have to bear a impact test and each test need different test specimens.


Standard Compliance


  • UL1642 UL standard for safety for lithium batteries.
  • UL2054-2005 UL Standard for Safety for Household And Commercial Batteries.
  • UN38.3 Lithium metal and lithium ion batteries.
  • GB/T 18287-2013 General specification of lithium-ion battery for cellular phone.
  • SJ/T 11169-1998 Standard for lithium batteries.
  • YD 1268- 2003 The safety specification and test method for lithium batteries and charger.
  • SJ/T 11170-1998 Standard for household and commercial batteries.
  • GB/T 2900.11-1988 Terminology of (secondary) cell or battery.
  • MT/T 1051-2007 Lithium-ion batteries for cap lamp.
  • GB31241-2014

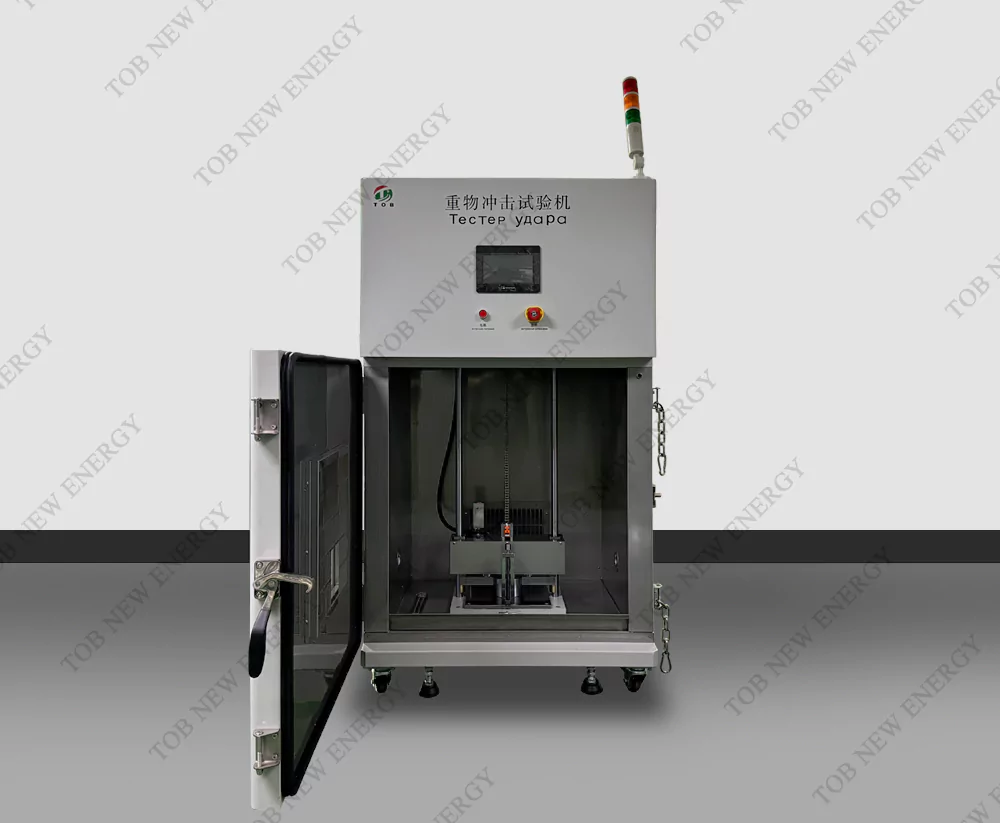

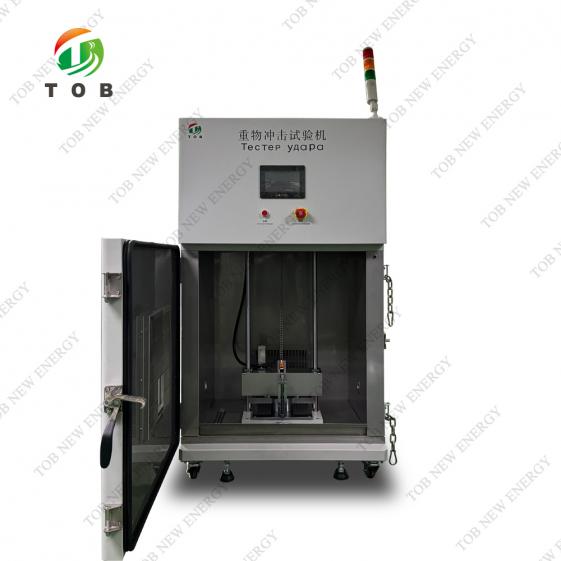

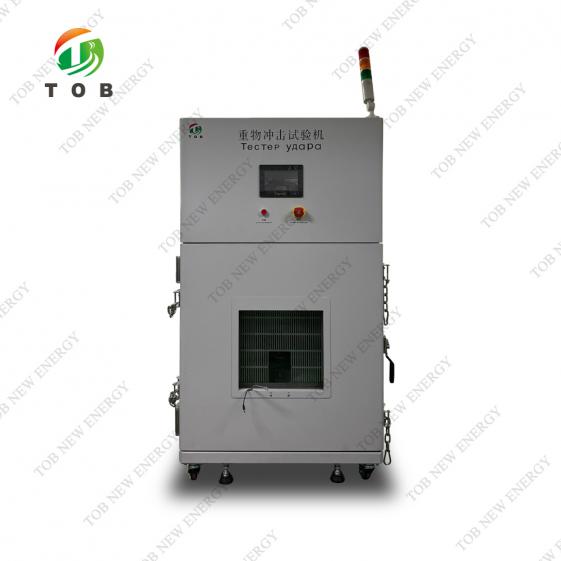

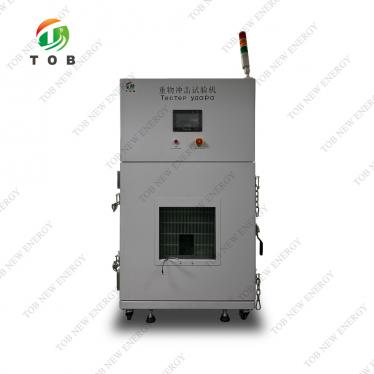

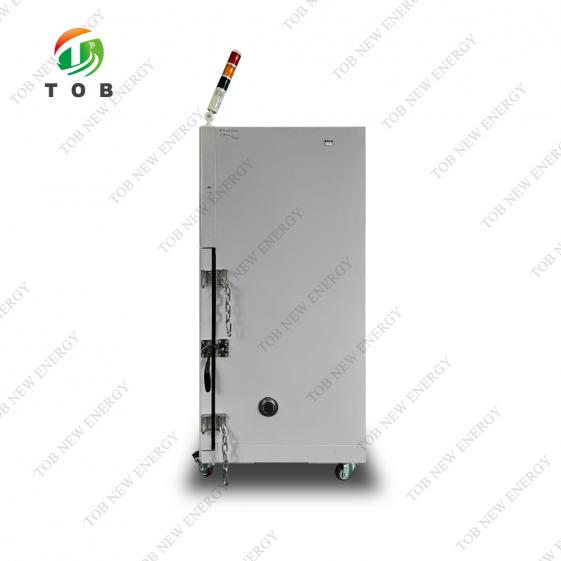

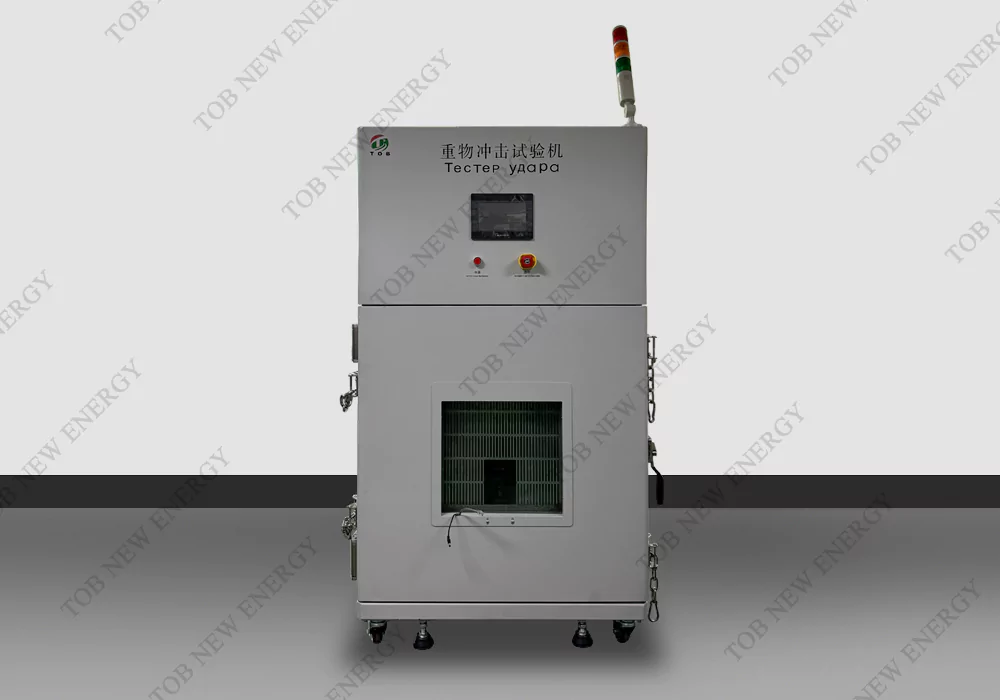

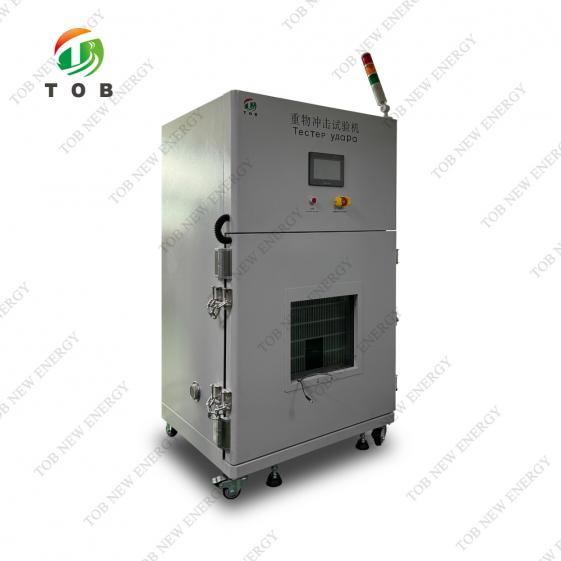

PRODUCT DISPLAY

Battery Impact Tester for Battery Safety Testing

Battery Impact Tester for Battery Safety Testing

Battery Impact Tester for Battery Safety Testing
