Battery Pouching and Notching Machine

TOB-CP-500 battery electrode cutting machine has a 500mm cutting width, and switch between the fixed length mode and the induction mode.

This TOB-J300D-SD Semi-Automatic Electrode Laser Die-Cutting Machine is primarily used for cutting the outer shape of power lithium battery electrodes.

This TOB-J500D-AF high speed battery electrode notching machine is mainly used for forming power lithium battery electrode (continuous coating process).

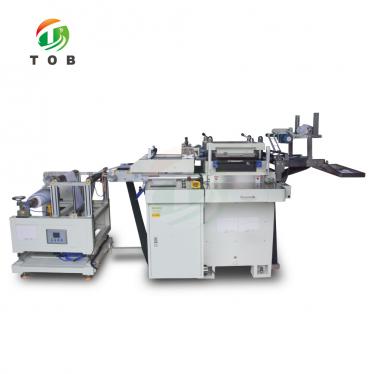

This TOB-ADCM-300 automatic electrode die-cutting machine is used for cathode and anode electrode sheets automatic die-cutting in battery manufacturing and research. It consists of automatic unwinding device, automatic correction device, electrode positioning device, electrode punching and cutting device, driving traction device, automatic waste collection device and other mechanisms.

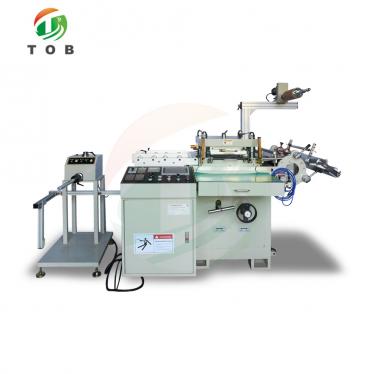

This TOB-DMQ-350 automatic die cutting machine is suitable for automatic die-cutting of lithium battery electrodes.

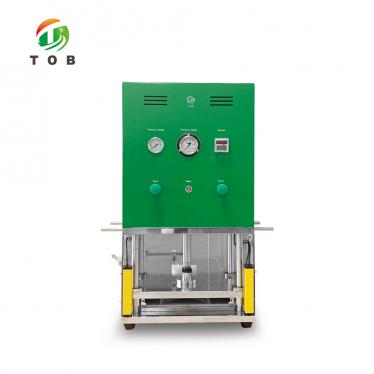

TOB-MQ100-H manual electrode die cutter machine adopt Hydraulic cutter method and it is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery.

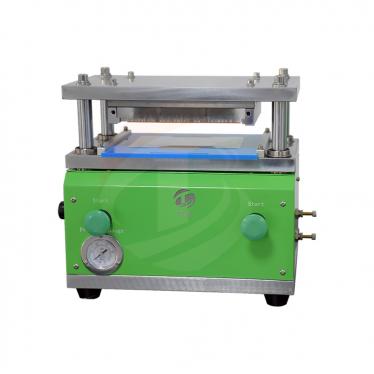

TOB-MC150 pneumatic die cutter is suitable for die-cutting of positive and negative electrodes of batteries, punching sheet type electrode by pneumatic method and can be placed in the glove box.

Pneumatic die cutter is suitable for die-cutting of positive and negative electrodes of batteries, punching sheet type electrode by pneumatic method and can be placed in the glove box.

This TOB-DCM-150 hardware die-cutting machine is suitable for the hardware die-cutting of cathode and anode battery electrode sheets. The die cutting machine is equipped with concave and convex hardware molds and uses precision tools for precise cutting.

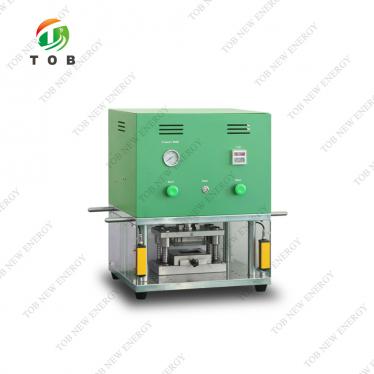

TOB-MQ300 semi-automatic electrode die cutter cutting machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery.

Semi-Automatic Electrodes Die Cutter Machine For Pouch Cell Electrode Sheet Cut.

TOB-D-500 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery.

500mm Width Battery Cutting Machine

500mm Width Battery Electrode Shear Cutting Machine

1 Thisbattery cutting machineis used for lithium battery anode/cathode electrode and aluminum laminated film Automatic continuous roller cutting. 2 For thisautomatic cutting machine,the cutting length can be set, and it’s cutting quantity can be counted and set automatically, it is a very useful machine for battery production line. 3 This battery cutting machine is used after electrode coating for cutting the electrode to big pieces for rolling press simply.

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell SPECIFICATIONS This machine is used for make the roll electrode into cell shape electrode automatically. 1 Roll electrode feeding automatically, controlled by Photoelectric switch 2 Adopt laser module to get high efficiency and accuracy Model TOB-04-350-DC Source voltage  AC 220V, 50HZ Power  4.2KW Air compression 0.6-07MPa Suitable battery size ≤350*200mm Max electrode width 360mm Cutter die height 23.8mm Accuracy of struggle 0.1mm Capacity 40-60times/min Dimension 2800*1400*900mm Weight 2500kg Finished electrode of the die cutter machine  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Automatic high-precision electrode forming machine SPECIFICATIONS TOB-LPC520 series machine technical parameters: Forming speed 20-30 punching  per minute. Maximum electrode width 520mm (actual maximum 540mm) The largest size electrode forming 500mm*500mm Electrode thickness 0.06 ~ 0.25mm Cutter life about 30,000 times Forming burr ≤0.015mm After punching the edges dusting ≤0.15 mm PET conveyor belt life recycling approximately 10,000~30,000 times Electrode box size according to customer-supplied Failure rate of the device ≤5% (only caused by the equipment failure) Power  required 6.0KW Voltage AC380V ± 10% Air pressure required 0.5 ~ 0.7Mpa Vacuum required -90Kpa ~ -60Kpa Weigh 4000KG Dimension (approx) length: 4300MM * Width: 2000MM  * High: 1850MM Other: According to electrode specifications provided by the customer, provide a laser sheet die cutter free.  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
