Battery Electrode Die Cutting Machine
加载中...

Semi-Automatic Electrodes Die Cutter Machine For Pouch Cell

Semi-Automatic Electrodes Die Cutter Machine For Pouch Cell Electrode Sheet Cut.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-MQ-400
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    20-30days
Product Detail

Semi-Automatic Electrodes Die Cutter Machine For Pouch Cell


SPECIFICATIONS


TOB-MQ-400 semi-automatic electrode die cutter is used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

High speed, high accuracy,long lifetime to make cutted electrode without burr, to get a good consistency.

This model has max die dimension with 400*300mm, It is mainly used for producing, if we want smaller size for lab research, please choose the TOB-MQ300 model.


Model  Battery Electrode Die Cutting Machine  TOB-MQ-400
Work voltage AC110V/220V, 50/60HZ
Power 500W
Warranty One year limited warranty with lifetime support
Max cutter die size 400mm(L) * 300mm(W)
Die Set Dimensions One set of standard electrode die is included.
within the dimensions:400mm(L) *300mm(W)

Customized size die is available upon request

Safety Protection Built in Safety Curtain to protect against hand injuires during electrode feedin

Double start press buttong

Cutting Accuracy ±0.1mm
Air Cylinder 5 tons Max. pressure
Cutting stroke 250mm
Feeding Manually
Production Yield 100-400 pieces of electrodes per hour according to battery sheet size
Air Pressure 0.6-0.7Mpa,40L/S
Dimension (L*W*H) 1000*760*2160mm
Net Weight 1000kg


PRODUCT DISPLAY

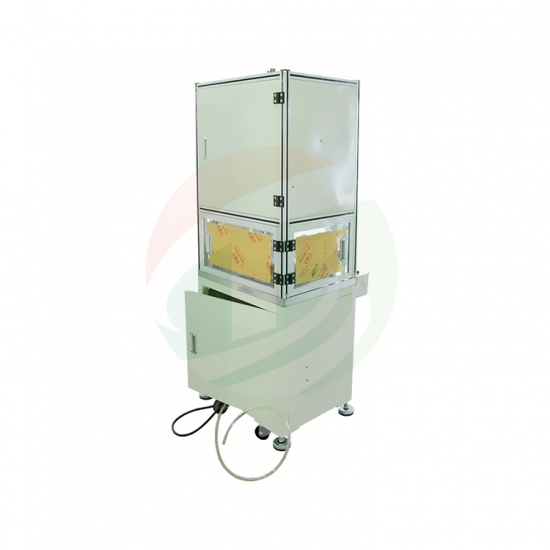

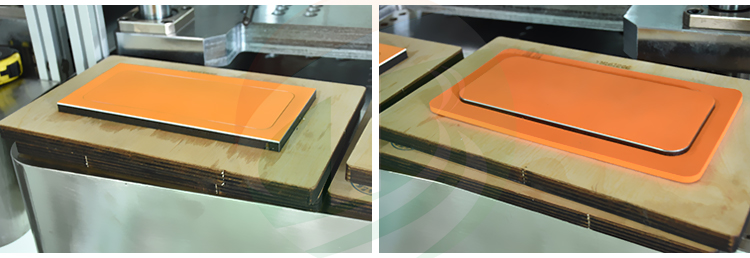

Die Cutter Machine For Pouch Cell

Semi-Automatic Electrodes Die Cutter

Electrodes Die Cutter Machine


Email : tob.amy@tobmachine.com

Skype : amywangbest86
Whatsapp/Phone number : +86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

our works
related products
shear cutting machine
Semi-automatic Shear Cutting Machine For Lithium Battery Big Electrode Cutting
500mm Width Battery Electrode Shear Cutting Machine.
lithium battery electrode cutter
500*500mm Battery Electrode Die Cutting Machine
1 TOB-JD-500 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
Electrode Die cutting machine
200*300mm Battery Electrode Cutter Die Cutting Machine
TOB-MQ300 semi-automatic electrode die cutter cutting machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
Battery Cutting Machine
500mm Width Battery Cutting Machine
500mm Width Battery Cutting Machine
Battery Cutting Machine
Battery Electrode and Aluminum Laminated Film Cutting Machine
1 Thisbattery cutting machineis used for lithium battery anode/cathode electrode and aluminum laminated film Automatic continuous roller cutting. 2 For thisautomatic cutting machine,the cutting length can be set, and it’s cutting quantity can be counted and set automatically, it is a very useful machine for battery production line. 3 This battery cutting machine is used after electrode coating for cutting the electrode to big pieces for rolling press simply.
shear cutting machine
Battery Electrode Shear Cutting Machine 500mm
500mm Width Battery Electrode Shear Cutting Machine
Punching (cutting)  Anode and Cathode
Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode
Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell SPECIFICATIONS This machine is used for make the roll electrode into cell shape electrode automatically. 1 Roll electrode feeding automatically, controlled by Photoelectric switch 2 Adopt laser module to get high efficiency and accuracy Model TOB-04-350-DC Source voltage  AC 220V, 50HZ Power  4.2KW Air compression 0.6-07MPa Suitable battery size ≤350*200mm Max electrode width 360mm Cutter die height 23.8mm Accuracy of struggle 0.1mm Capacity 40-60times/min Dimension 2800*1400*900mm Weight 2500kg Finished electrode of the die cutter machine  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
Punching (cutting)  Anode and Cathode
Automatic high-precision electrode forming machine
Automatic high-precision electrode forming machine SPECIFICATIONS TOB-LPC520 series machine technical parameters: Forming speed 20-30 punching  per minute. Maximum electrode width 520mm (actual maximum 540mm) The largest size electrode forming 500mm*500mm Electrode thickness 0.06 ~ 0.25mm Cutter life about 30,000 times Forming burr ≤0.015mm After punching the edges dusting ≤0.15 mm PET conveyor belt life recycling approximately 10,000~30,000 times Electrode box size according to customer-supplied Failure rate of the device ≤5% (only caused by the equipment failure) Power  required 6.0KW Voltage AC380V ± 10% Air pressure required 0.5 ~ 0.7Mpa Vacuum required -90Kpa ~ -60Kpa Weigh 4000KG Dimension (approx) length: 4300MM * Width: 2000MM  * High: 1850MM Other: According to electrode specifications provided by the customer, provide a laser sheet die cutter free.  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
