Pouch Cell Filling Machine

Automatic Electrolyte Battery Filling Using Conveyor System For Polymer Battery Filling System SPECIFICATIONS This Automatic Battery Filling System is automatic polymer battery filling machine, it includes Bar code scanning, weigh before filling, automatic injection electrolyte, automatic vacuum holding, automatic vacuum sealing, weigh after filling, automatic discharging, etc. Automatic battery filling system work process Model Automatic Battery Filling System TOB-AFMY-200 Source voltage AC220V, Single phase. Customized according country request Power 10KW Warranty  One year limited warranty with lifetime support Compressed air 0.6MPa  Output 6ppm, according to vacuum holding and sealing time Vacuum flow 350M3/hour Suitable battery size Length 130-285mm, Width 100-170mm, Thickness 8-11mm  Structure configuration  Trough body 3SET Battery rotating mechanism 1SET Automatic feeding mechanism 1SET Weight before filling 1SET Into the jig transfer institution 1SET Pour institutions without electric pump 1SET Vacuum holding box 3SET Vacuum pre-sealing 1SET Discharge transfer institution 1SET Weight after filling 1SET Automatic discharging device 1SET Automatic receiving institutions 2SET With PLC, Touch screen,    Driving motor 2SET Project control system 1SET CAM drive motor 2SET Vacuum holding box 1-99s can be set, with -95kpa vacuum degree Vacuum pre-sealing machine Sealing stamp width : 8mm Sealing head length : 300mm Sealing TEM : Max 260℃, adjustable Sealing Head parallelism : ±0.02mm Vacuum degree : -90KPa Dimension (L*W*H) 8000*1500*2400mm Weight 4000kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

This TOB-PVM200 vacuum electrolyte filling soaking and pre-sealing all-in-one machine is suitable for battery electrolyte filling and soaking process of battery. After vacuuming and then filling and make diffusion. The electrolyte is more precision, absorption consistency, high reliability. Then hot-press pre-sealing.

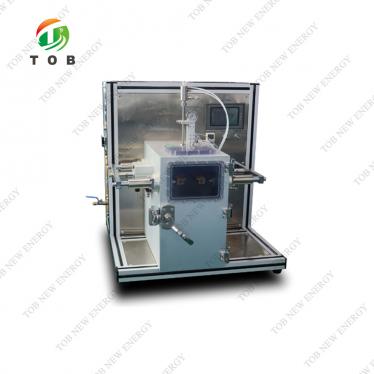

This TOB-BZY-P2 electrolyte filling machine is primarily used for the automatic conventional electrolyte filling and assembly process of lithium-ion pouch power batteries. Designed for operation in a standard clean room environment, the machine features a glove-box style enclosure made of 304 stainless steel with a baked paint finish. All operations are performed within the sealed glove box.
