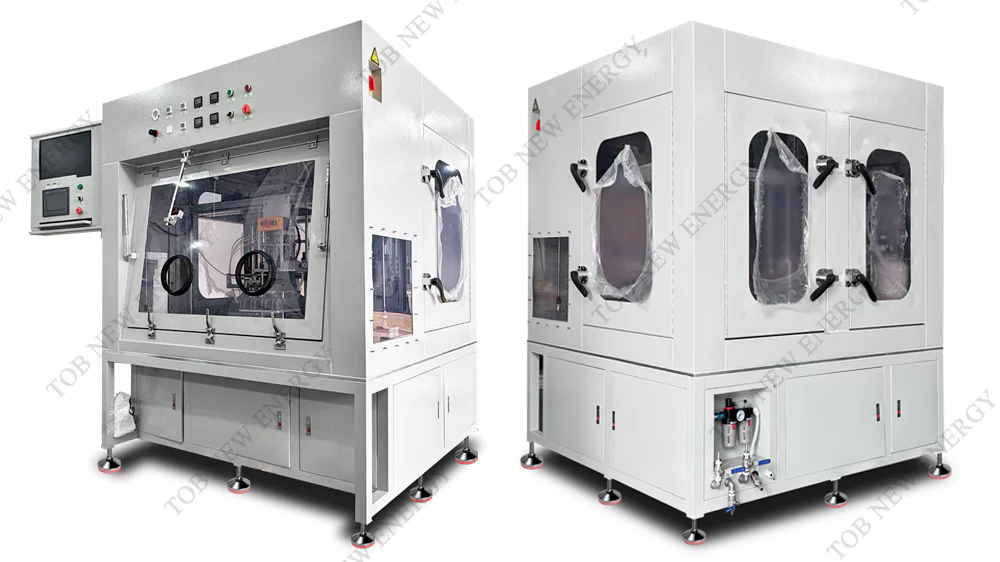

Semi Auto Electrolyte Filling Machine with Glove Box For Pouch Cell Manufacturing

Semi-Auto Electrolyte Filling Machine with Glove Box For Pouch Cell Manufacturing

SPECIFICATIONS

This TOB-BZY-P2 electrolyte filling machine is primarily used for the automatic conventional electrolyte filling and assembly process of lithium-ion pouch power batteries. Designed for operation in a standard clean room environment, the machine features a glove-box style enclosure made of 304 stainless steel with a baked paint finish. All operations are performed within the sealed glove box.

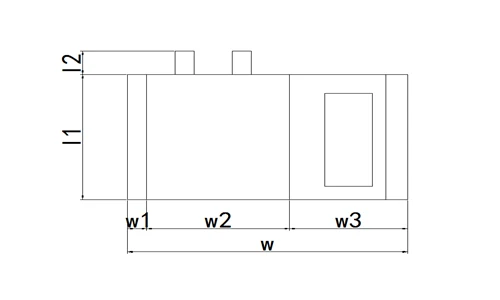

L1=60-180mm, L2=20-40mm

W1=5-10mm, W2=50-100mm, W3=30-80mm

Cell thickness = 6-12mm

Remarks:(Develop relevant technical requirements according to customer requirements)

Within the above range, if the seal width is the same, the clamps can be adjusted.

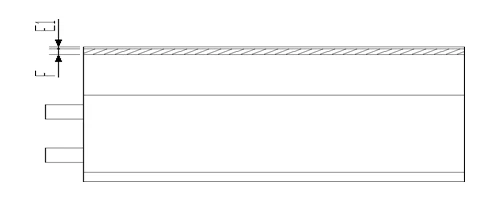

Unsealed area of the filling port: E1=5-10mm (The height error between the sealing edge and the direction edge of the airbag).

Seal width: F=6mm, can be customized, adopting a combination head.

Sealing working temperature：MAX 250℃, the maximum difference in temperature at each point : ±3℃

Equipment parameters

Working voltage: AC380V/50HZ, power about 1.5KW

Weight of equipment: about 1000KG.

Equipment size: (MAX) length 2700mm, width 1600mm, height 1800mm. working compressed air: 0.65Mpa

Working vacuum: -0.095Mpa

Overall efficiency (MAX): 6PPM (according to battery specification and model)

Vacuum static mechanism:

a. Vacuum level: -0.095 MPa

b. Cycle times: 0-9 can be set.

c. Air exhaust/Standing time: 0-60min can be set.

Remark:

If the above brand components out of stock, we will change with same class ones instead without information to customer, thus not influence the delivery time. Hope for understanding!

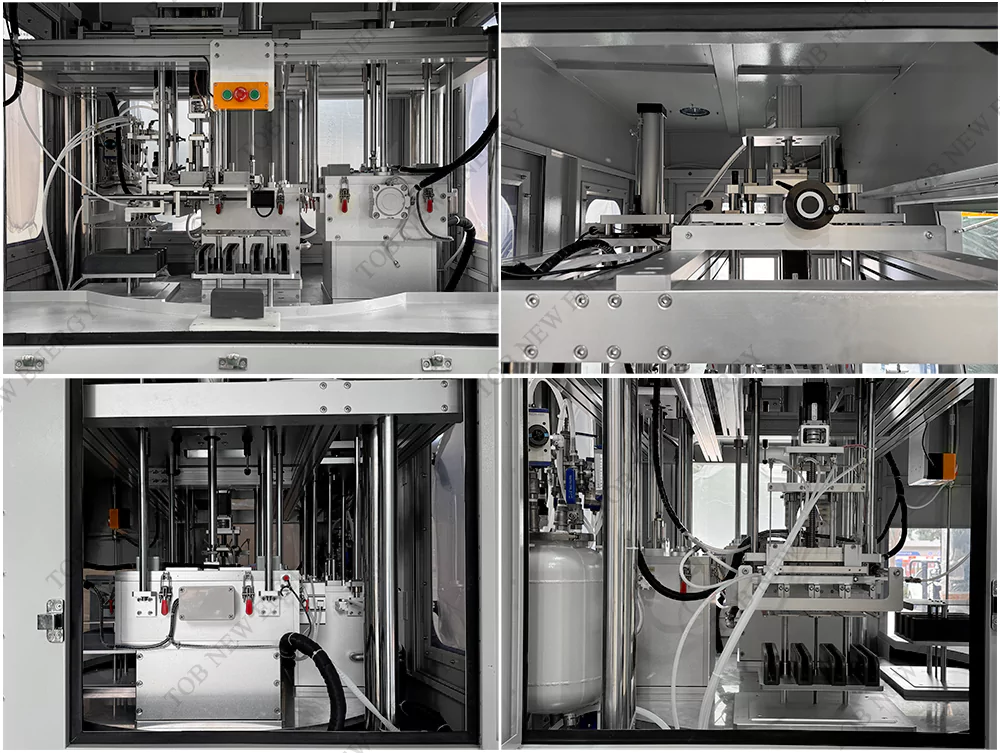

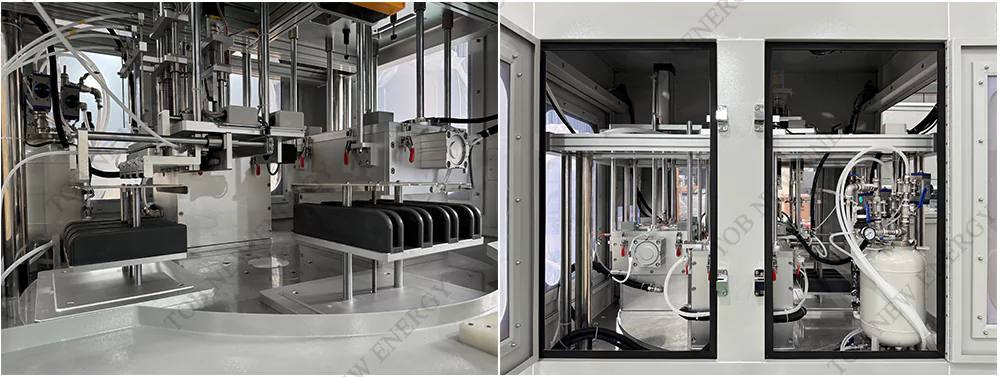

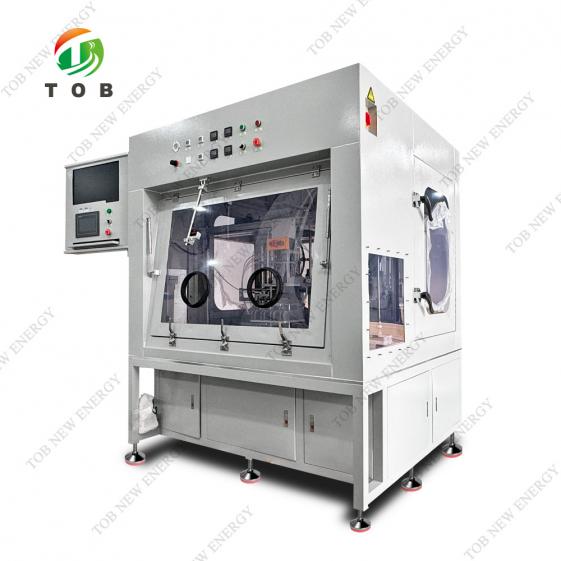

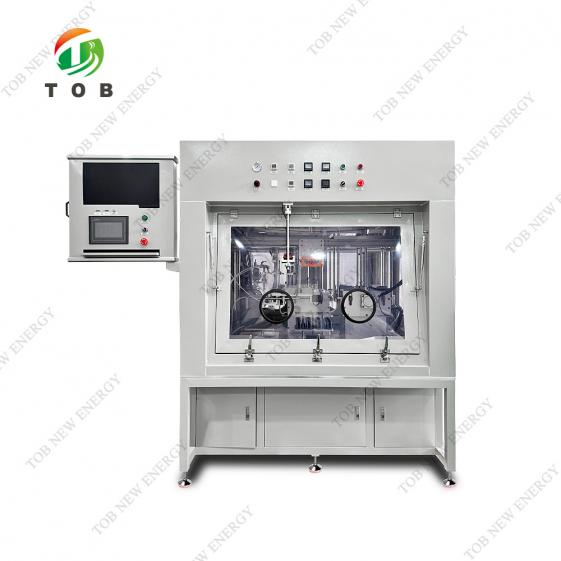

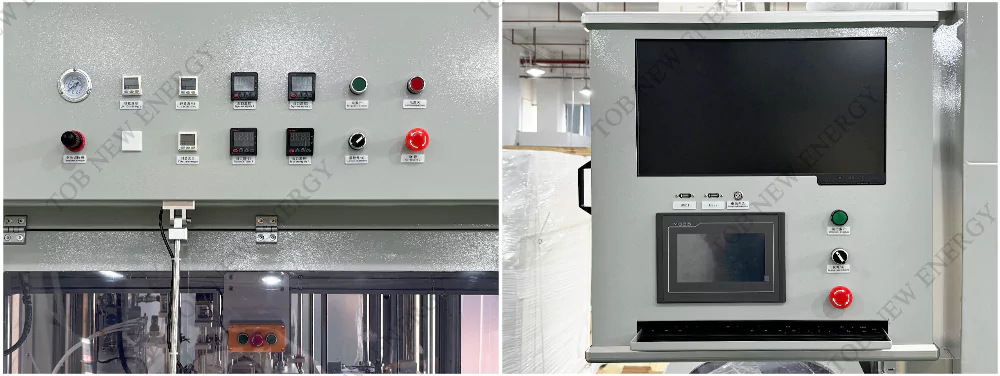

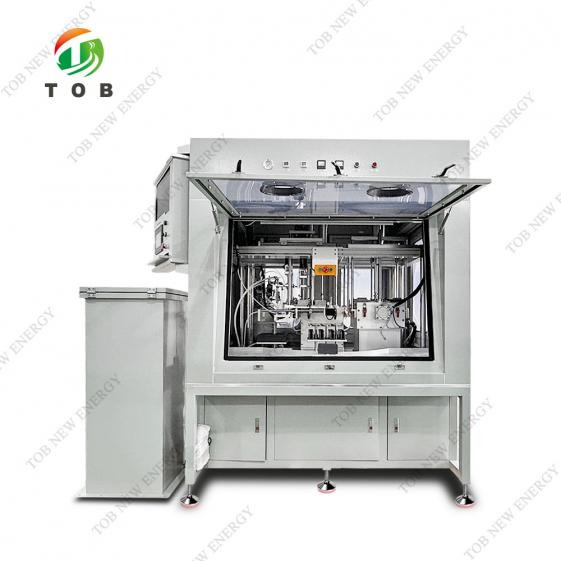

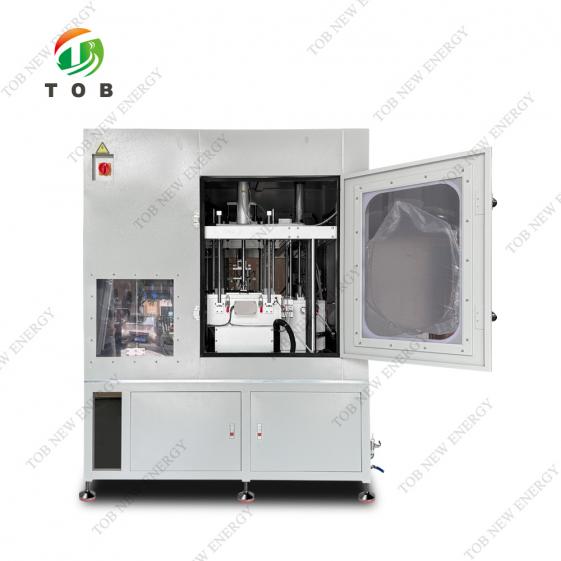

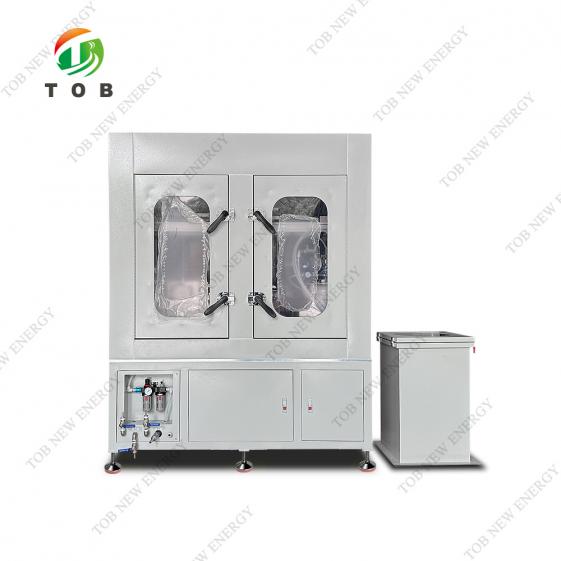

PRODUCT DISPLAY
