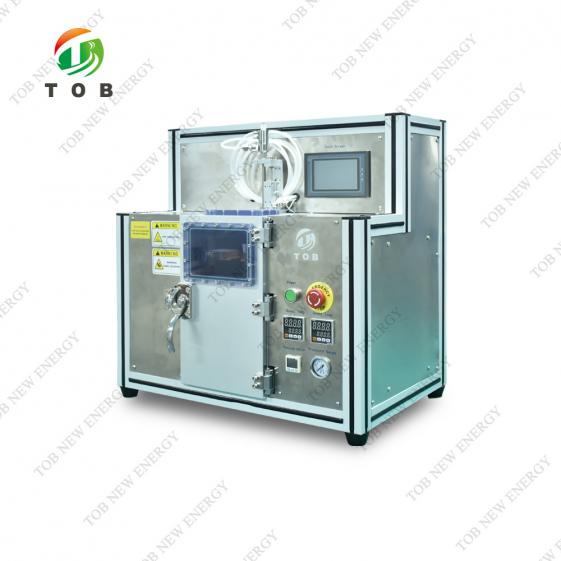

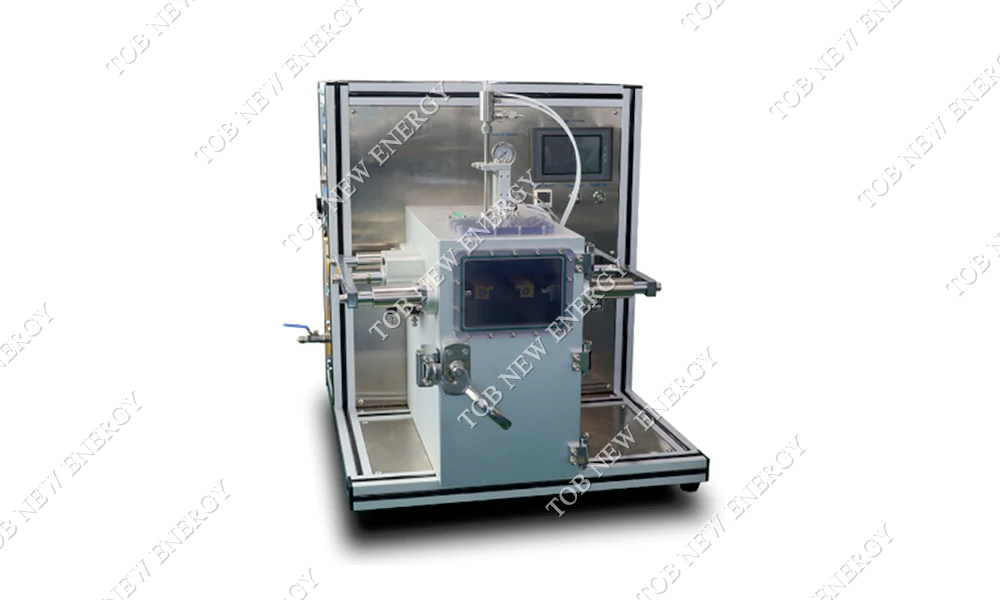

Electrode Filling Soaking and Pre-sealing Machine
加载中...

Vacuum Electrolyte Filling Soaking and Pre-sealing All-In-One Machine

This TOB-PVM200 vacuum electrolyte filling soaking and pre-sealing all-in-one machine is suitable for battery electrolyte filling and soaking process of battery. After vacuuming and then filling and make diffusion. The electrolyte is more precision, absorption consistency, high reliability. Then hot-press pre-sealing.
  • Brand:

    TOB
  • item no.:

    TOB-PVM200
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Vacuum Electrolyte Filling Soaking and Pre-sealing All-In-One Machine


SPECIFICATIONS


Main feature:

  • One machine includes injection and diffusion function  hot-press pre-sealing.
  • High measurement accuracy and repeatability.
  • Injecting liquid after vacuuming, high efficiency, accurate accuracy, convenient and reliable operation.
  • The inlet and outlet are connected with chemical resistant hoses.

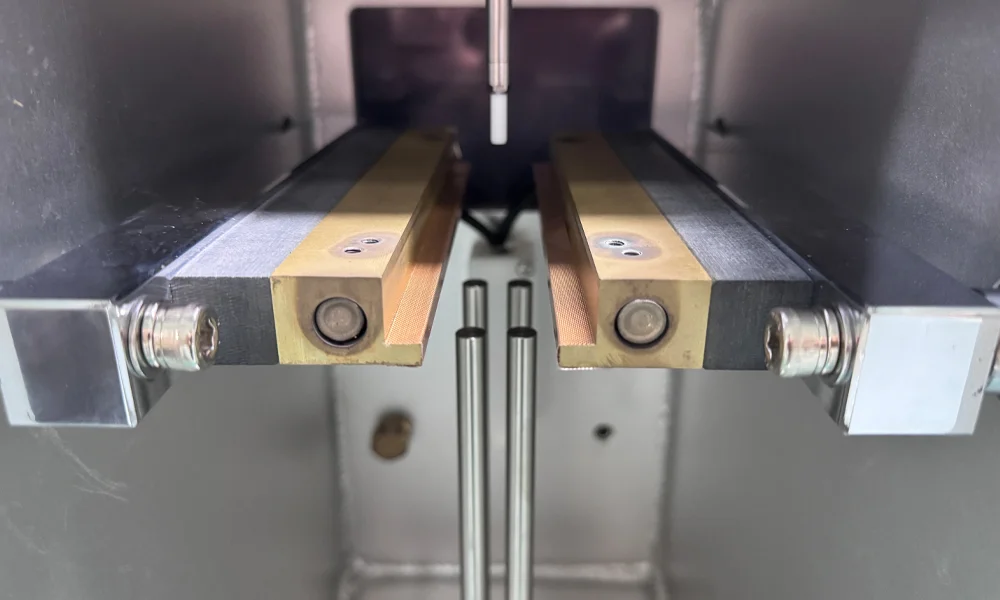

  • The sealing head is made of copper material, which has good heat conduction effect, saves power consumption, improves work efficiency and saves energy compared with similar products.
  • The pressure of the sealing head can be adjusted by a pressure regulator to meet the requirements of different process parameters.
  • The head is driven by the cylinder through two linear guide sleeves, which is flexible and accurately guided to ensure the parallelism of the product after edge sealing.
  • Through the perspective window, changes in the cavity can be observed while working.
  • Can be operated in glove box or drying room.
  • Exquisite appearance, stable performance.
  • PLC, touch screen operation, flexible parameters, high automation program.

Working procedure description:


  • Put the product into the vacuum chamber.
  • Close the transparent sealing door so that the battery is in a sealed vacuum chamber.
  • Vacuum, after reaching the vacuum degree and setted time, automatic liquid injection.
  • Start to diffusion process after the liquid injection is completed.
  • Run according to the parameters to pump low vacuum, high vacuum, pressure holding, after the completion of the cycle.
  • Start preseal.
  • Vacuum, after reaching the vacuum degree and temperature value, automatic heat seal, remove the product after completion.

Main components of equipment:


  • Cylinder and solenoid valve, vacuum components: Taiwan Airtek/XingChen
  • PLC: Display and control
  • Touch screen: display control
  • Analog vacuum meter: Panasonic


Site environmental requirements


  • Ambient temperature: determined by the environment of the customer's plant
  • Power supply: 220V, 50HZ, voltage fluctuation range: +10% ~ -10%
  • Compressed air: after drying, filtering and pressure regulation: the outlet pressure is greater than 4.0kg/cm2; If put into the glove box, the compressed gas used is the same as the gas in the glove box.
  • Vacuum source: vacuum pump 2 L/s, above -98KPa, or pipeline vacuum (above -98KPa)


Technical parameter


  • Including liquid injection,diffusion, pre-sealing three functions.
  • Battery size application range: length 20~190mm, width 20~190mm, thickness 0~15mm.
  • Capacity range: 0.2ml~3L, adjusted according to liquid injection pump.
  • Battery liquid injection amount: 0.2g~3kg, according to the injection pump adjustment.
  • Injection accuracy: ±1%
  • Exhalation velocity:3ml/s adjustable
  • In and out pipe:The liquid inlet pipe Φ6
  • Manufacture of stainless Steel 304 and 316 corrosion-resistant material in key parts.
  • The straight cavity is welded with aluminum and has a stable corrosion resistant structure.
  • Head temperature: RT ~ 250℃, the temperature is adjustable.
  • Temperature control accuracy:±2℃
  • Heat seal pressure: 0 ~ 5Kg/cm2 adjustable
  • Heat sealing time: 0 ~ 99 seconds adjustable
  • Seading edge width: 5±0.4mm(according to customer requirements)
  • Maximum sealing edge size: 190mm
  • Sealing tool length: 200mm
  • Seal thickness accuracy (mm) : any two point package thickness difference <15um
  • Power: 300w heating tube, heating power consumption of about 0.6KW
  • External dimension:L600mm×W620mm×H800mm
  • Power supply:AC220V/50Hz/1KW
  • Weight:95kg

PRODUCT DISPLAY

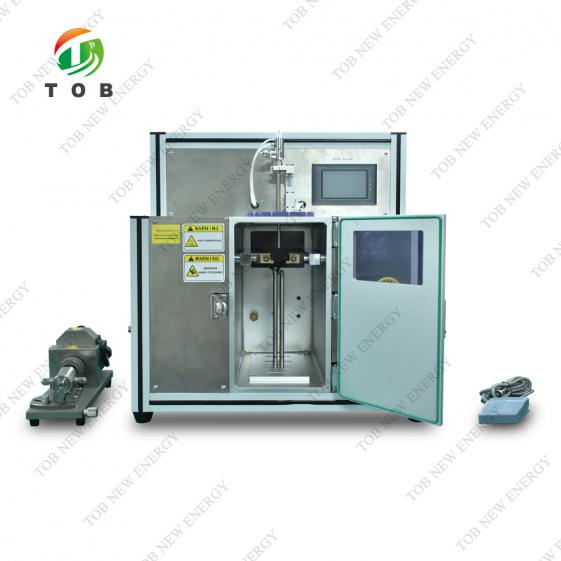

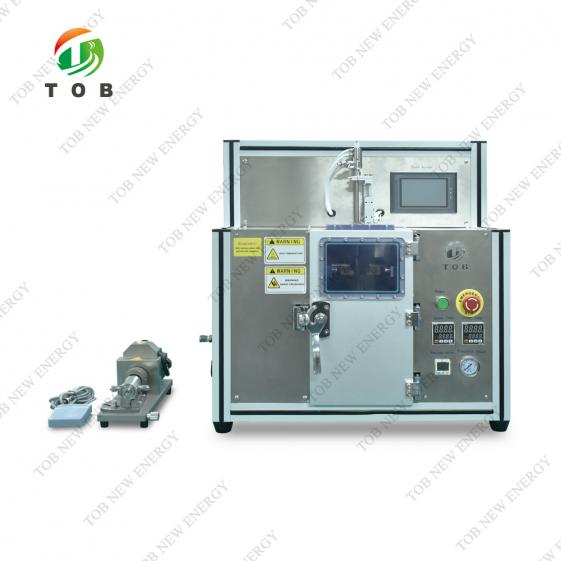

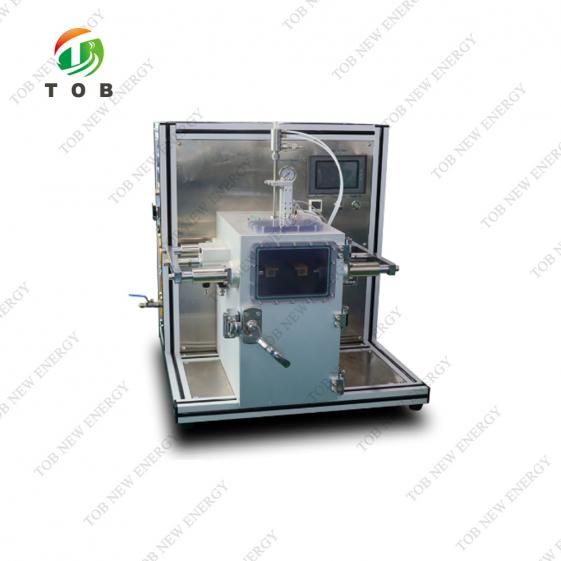

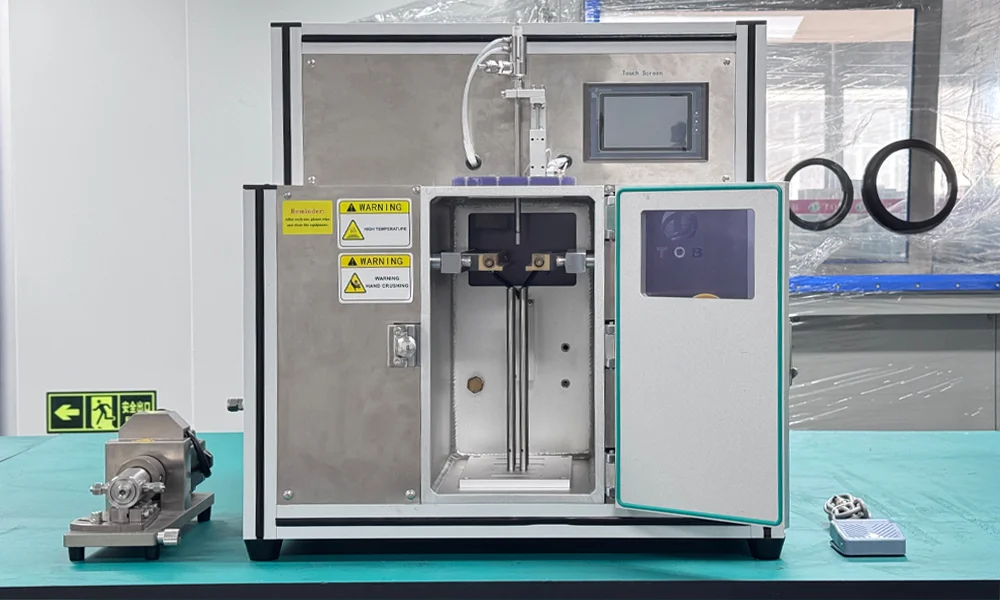

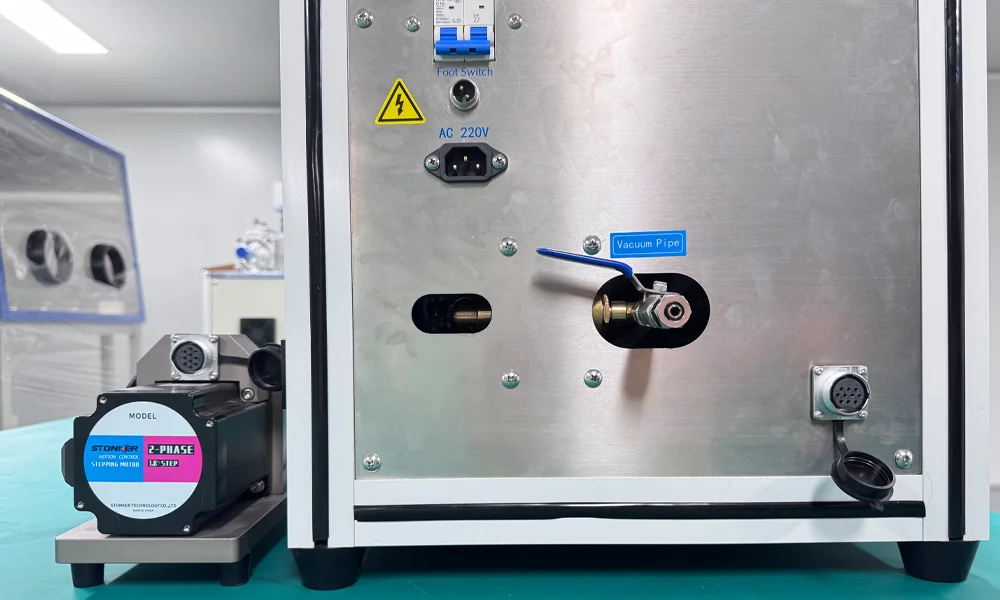

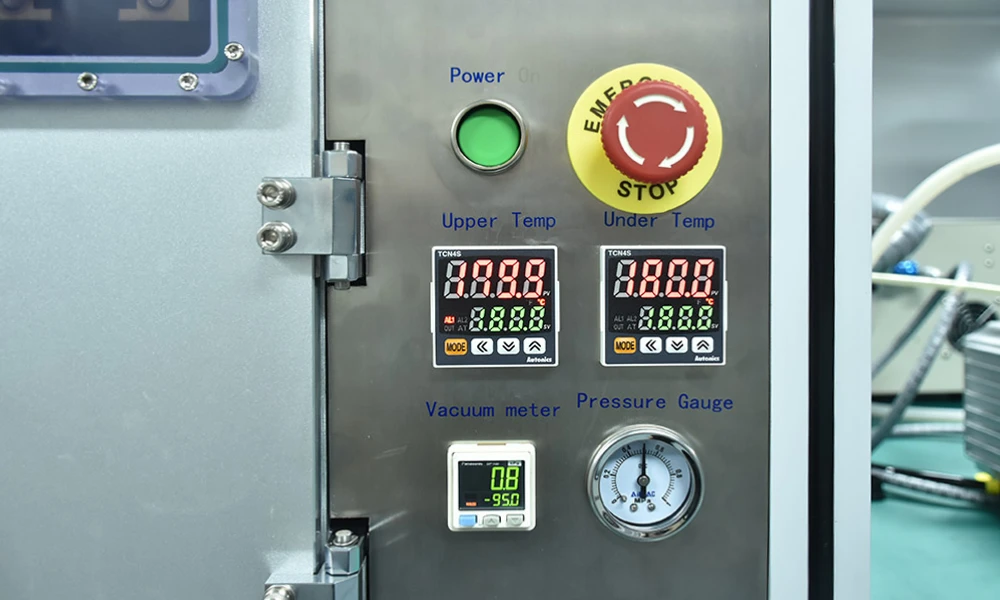

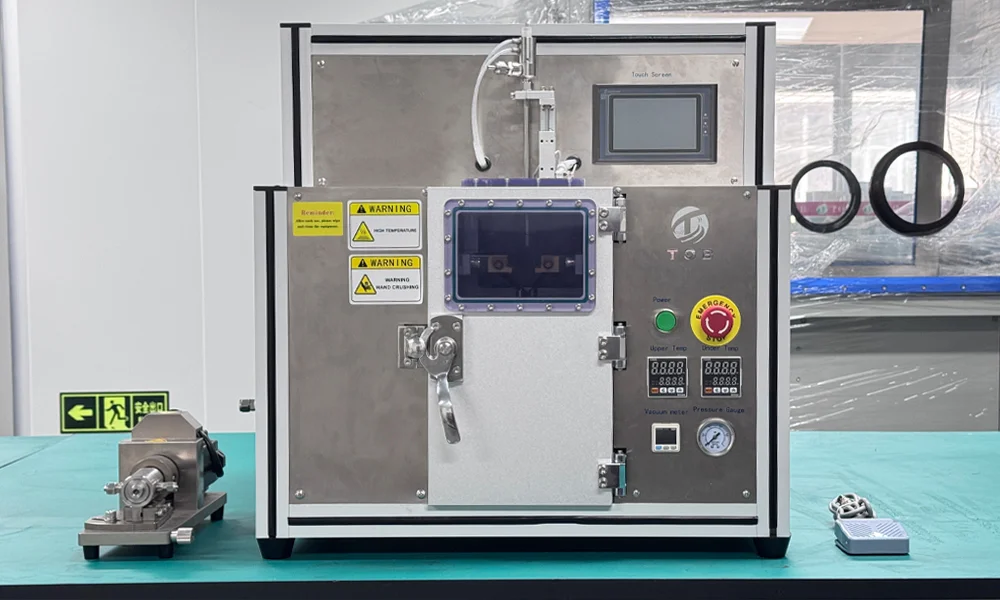

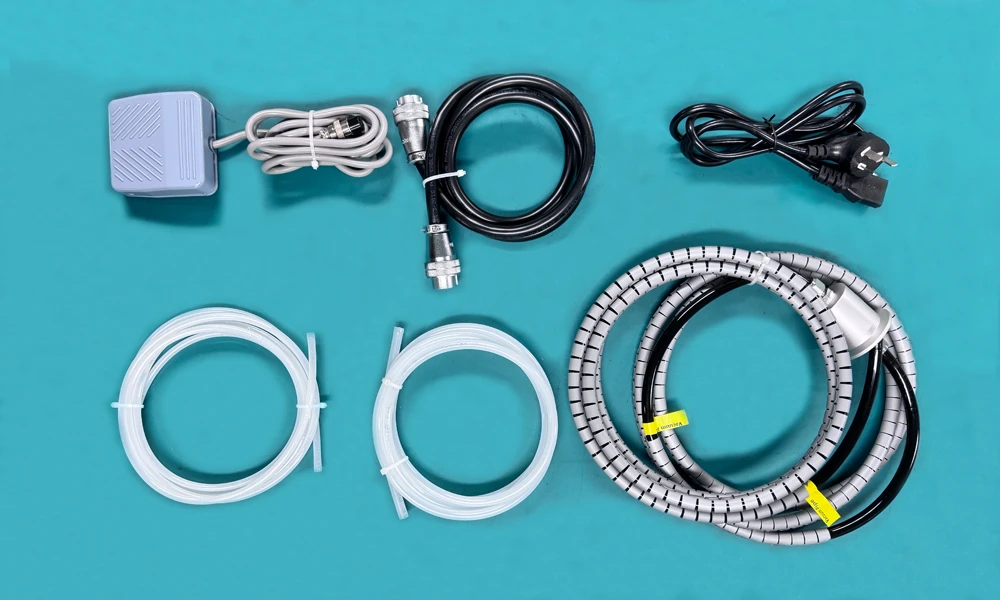

Vacuum Electrolyte Filling Soaking and Pre-sealing All-In-One Machine
