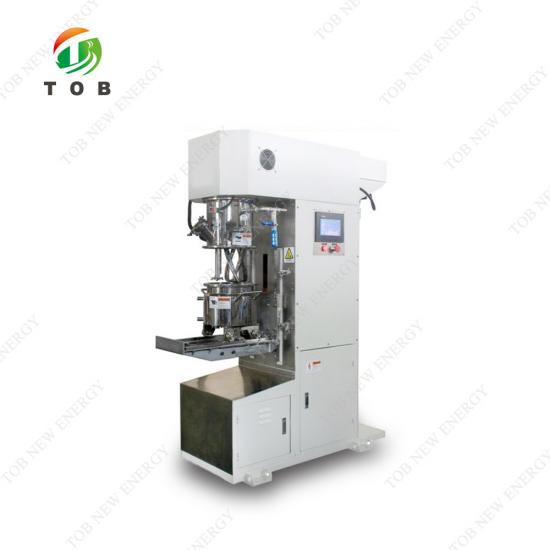

5 Litre Lab Planetary Vacuum Mixer Machine

This TOB-XFZH05 mixing machine is a planetary vacuum mixer with 5 liter capacity. It is mainly used for battery slurry mixing.
  • Brand:

  • item no.:

  • order(moq):

  • Payment:

  • product origin:

  • shipping port:

  • Lead Time:

Product Detail

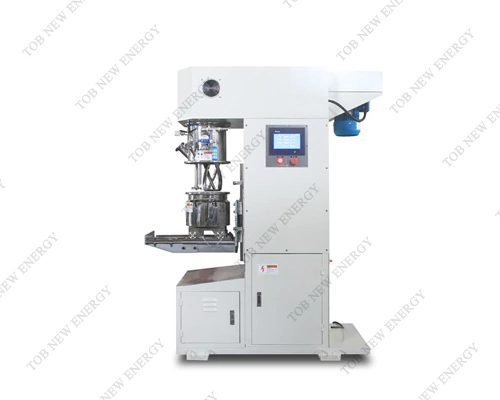

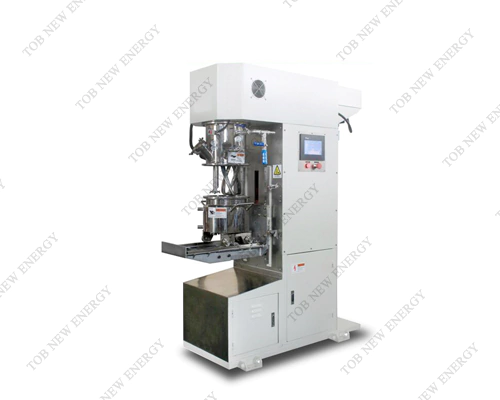

5 Litre Lab Planetary Vacuum Mixer Machine For Li-ion Battery Slurry Mixing



Various types of common battery powder and liquid mixing,eventually get a mixed uniform battery slurry. It is suitable for high viscosity process.

Main parameters:

Model TOB-XFZH05
Lower Barrel Parts
Design total volume 8L
Elective volume 2.7-5L
Container inner diameter 240mm
Container inside depth 180mm
Container material The parts in connect with materials is 304 stainless steel
Tempering jacket form The bottom and the barrel jacket can input water for cooling, heat preservation and heating
Tempering jacket port G3/4",with quick opening movable joint,
jacket withstand pressure≤0.4MPa
Tempering jacket circulation system prepared by customer,
jacket water inlet temperature≤8℃,
cooling water flow>3.5L/min
Discharge materials form bottom of a G1-1/2" three-piece discharge ball valve, equipped with 2 "standard ISO quick connect clamp connector
Design environment temperature -10~+120°C
Move mode Casters move
Mixing Parts
Working frequency 5-50hz
Mixing power 1.5kw
Mixing blade speed 10-98rpm
Planetary box rotate speed 5-50rpm
Mixing blade diameter 124mm
Mixing blade model Variable cross-section spiral twist type, 90 ° helix
Mixing blade material 304 stainless steel
Mixing blade line speed 0.06-0.6m/s
Mixing blade number 2pcs
Dispersing Parts
Working frequency 5-50hz
Dispersing power 2.2kw
Dispersing rotate speed 610-6100rpm
Dispersing plate diameter 70mm
Dispersing model Serrated
Dispersing plate material 304 stainless steel
Dispersing line speed 2.2-22m/s
Dispersing number 1pcs
Dispersing shaft number 1pcs
Scratch the Wall Parts Scratch wall bracket material:304 stainless steel
Scratch wall material:Teflon
Scratch wall rotate speed:Consistent with planetary box rotate speed
Removable or not:Removable design (Need to remove when scraping the wall on high viscosity process)
Base and Lifting Parts Parts materials:High rigidity structural carbon steel
 Lifting way:electric
Lifting guide:High-precision linear guide
Lifting itinerary:≤290mm
Upper Barrel Parts Upper barrel material:304 stainless steel
Power feed port:quick opening interface DN40 1pcs
Liquid feed port:ISO standard 1/2" quick interface 1pcs
Mirror port:DN50 tempered glass sight glass 1pcs
Vacuumize port:G1/2 " 1pcs
Exhaust port:together with vacuumize port
Digital vacuum gauge port:M14×1.5 Internal thread metric tooth interface 1pcs
Control System Electrical cabinet:Used to install low-voltage electrical components such as inverter
Manual operation panel:For placement buttons, knobs, gauges etc
 Power supply:AC 3×380V±5﹪,50Hz
 Control mode:electronic control
Power control and speed adjustment mode: Inverter start and control
Cooling mode:Air-cooled (wind cooling)
Operation mode:Touch screen
Digital temperature display gauge:material temperature
Emergency stop button:1pcs
Alarm system:Over-temperature alarm, over-temperature alarm shutdown, alarm shutdown
Speed display: Touch screen shows the speed
Power instructions: 1pcs
Safety Chain System Emergency stop: press the emergency stop switch, the device immediately stop, and can not do anything
Start low-speed mixing: can lift the barrel and turning at the same time
High-speed dispersion: barrel up in place before turning
Safe lock in operation: When the machine is running, the mixing barrel can not be lowered, can not open the mixing barrel.
Prevent vacuum tube backflow: special vacuum buffer tank design, can effectively prevent the vacuum pump oil back to the mixing drum phenomenon
Stop running fault: Inverter comes with overload, overcurrent, overvoltage, leakage, lack of equal protection
Mixing barrel lift: stirring barrel in place to rise
Mixing barrel did not return to normal pressure can not be dropped.
After mixing barrel rises in place and high-speed dispersion, then can be started.
After mixing barrel rises in place, with locking protection system, to prevent while the mixing barrel rises to high place abnormal fall.
Dry mixing stage, while the barrel rising, the stirring paddle need to rotate at the same time.
Other description Temperature probe:Pt100
Temperature measurement: Located of the barrel wall to detection of internal material temperature
Transmission parts bearings:High-speed components for imported bearings, low-speed components for domestic bearings
Oil seal:Domestic brands,O-ring for Static seal,dynamic seal using mechanical seals or skeleton oil seal
Grease:Domestic brands
Mechanical seal lubricants:Imported brand
 Petrol cylinder:Domestic brands
Petrol station:Domestic brands
Valve:Domestic brands
acuum design quantity demand:vacuum system prepared by customer own, air exhaust volume 2L/S(2X-2)
Vacuum hold:-0.098Mpa,holding pressure for 24 hours>-0.085Mpa,do not leak to the barrel
Total host power:>4kw
Total weight: about 700kg
Appearance color:off-white
Ground bearing:900kg/㎡

Features and Advantages

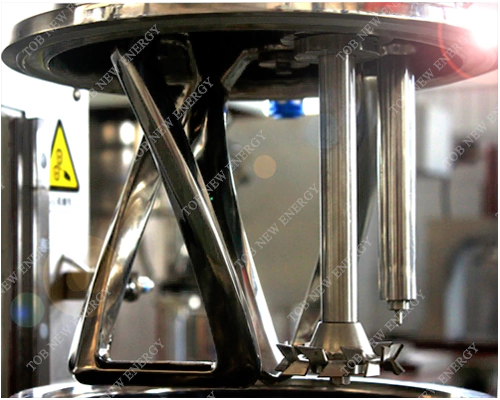

Without scraper.

Eliminate the blind angle on the back of the scraper, promote the full mixing and dispersing of more materials. At the same time, it reduces the workload caused by scraping (the scraper is standard and can be removed).

Lab Planetary Vacuum Mixer

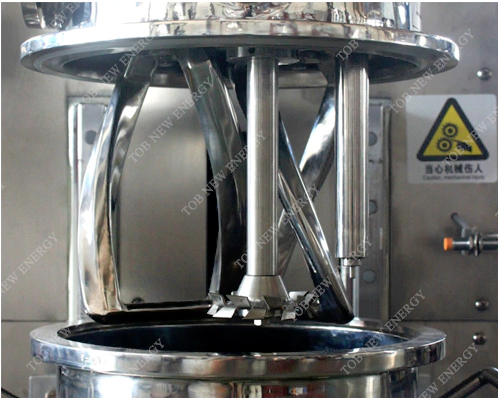

Easy to clean.

The distance between the planetary box and the bottom surface of the upper bucket is reduced, which increases the gap between parts and facilitates cleaning.

Planetary Vacuum Mixer

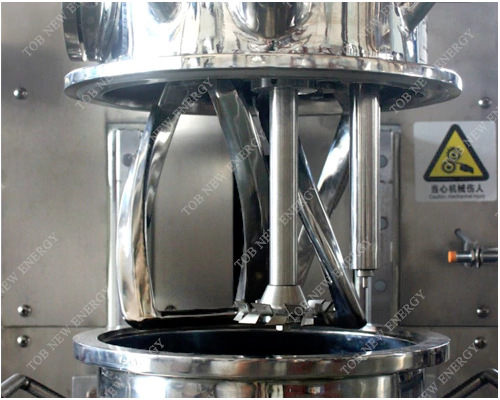

Machine with high rigidity.

The rigidity is twice that of the same type of equipment, which can meet the mixing of higher viscosity materials.

Lab Planetary Mixer

With dynamic temperature measurement function.

The accuracy of temperature measurement is higher, and the temperature measurement line is introduced through the low-speed shaft, which improves the service life of the temperature measurement joint.

Lab Planetary Mixer

Variable cross section kneading.

The kneading process of highly viscous materials is realized in one go, and the efficiency is increased by 30%~40%.

Lab Planetary Mixer

Dispersion fast.

The single dispersing disc achieves 137% of the dispersing efficiency of the old 5L double dispersing disc, greatly reducing splashing.

Lab Planetary Mixer

Product Display

Battery Slurry Mixing Machine

Planetary Mixer

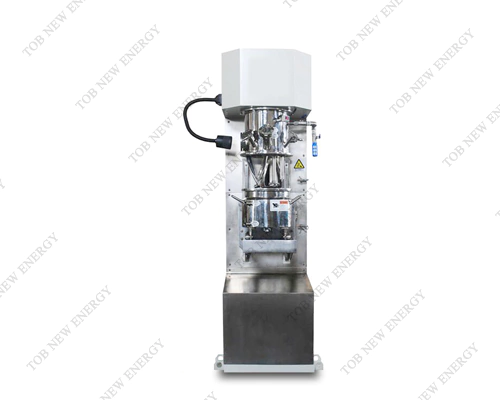

5L battery slurry mixer for cylindrical cell project in IIT

battery slurry mixer for IIT

5L and 30L battery mixers used for Russian pouch cell and cylindrical cell projects

battery slurry mixer for Russia clients

Get more information about the battery slurry mixer
