Laboratory Automatic Electrode Die Cutter Machine

The die cutting machine isusedfor Lithium battery anode andcathode die cutting.

  • item no.:

    TOB-DMQ-350
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

340*280mm Laboratory Automatic Die Cutting Machine for Lithium Battery Anode & Cathode Electrode Cutting


SPECIFICATIONS


1.The die cutting machine is used for Lithium battery anode and cathode die cutting.

2.The device is composed of an automatic discharging device, an electrode limiting device, an electrode punching cutting device, a driving traction device, and an automatic waste collecting device.

Equipment technical parameters

Product specification range (electrode size) that the equipment can produce


After the electrode is cut, the size range

No

Name

Size(mm)

1

Electrode width W

50~280

2

Electrode height H

50~320

3

Tab height Ht

10~20

4

Tab edge D

5~20

5

Tab width Wt

30~60

Die Cutting Machine for Battery


Main technical parameters of the equipment

No

Equipment parameter index

Parameter

1

Maximum feed width

350mm

2

Maximum processing area

Automatic punching 340*280mm

(manual punching 350*350mm)

3

Equipment running speed

1000-9000 times/h

4

Die thickness requirements

thickness > 8mm

5

Feed control

Feeding speed and step adjustment

6

Shipping distance accuracy

±0.1mm

7

Safety equipment

Infrared grating protection and safety shield

8

Feed step accuracy

<0.1mm

9

Operation interface

Intelligent human machine interface

10

Roll material weight

<50kg

11

Roll material outer diameter

<400mm

12

Punching knife life

1-5 million times

(depending on the quality of the die and the accuracy of the machine)

13

Burr degrees

<0.02

14

Feed roll diameter

3 inches (inside diameter)

15

Waste recycling

Automatic waste separation and recovery device

16

Operating mode

Auto/manual mode

17

Control System

Intelligent microcomputer control

18

Total power

3.6KW

19

Power voltage

AC220V

20

Machine weight

1500kg

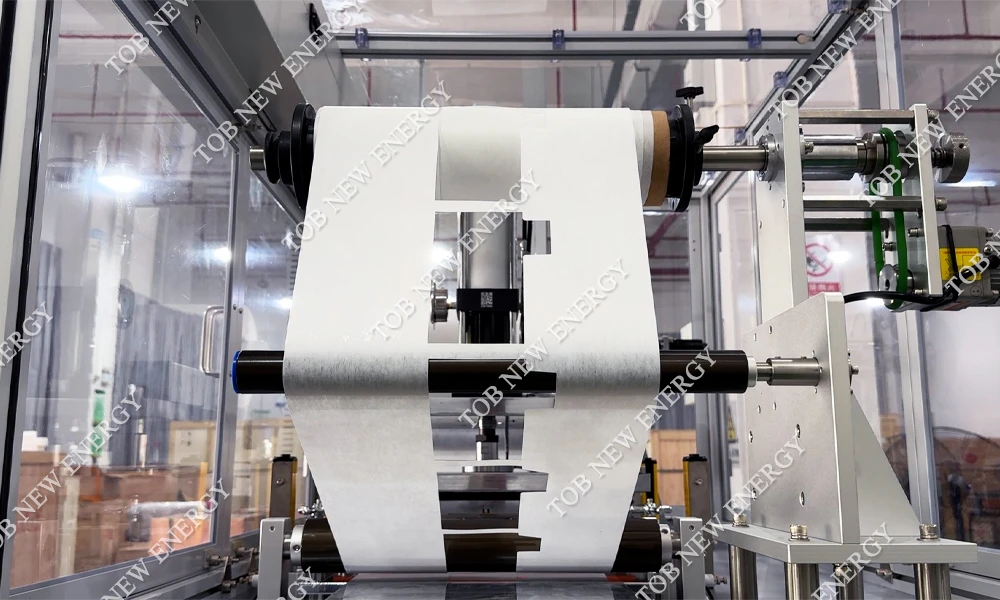

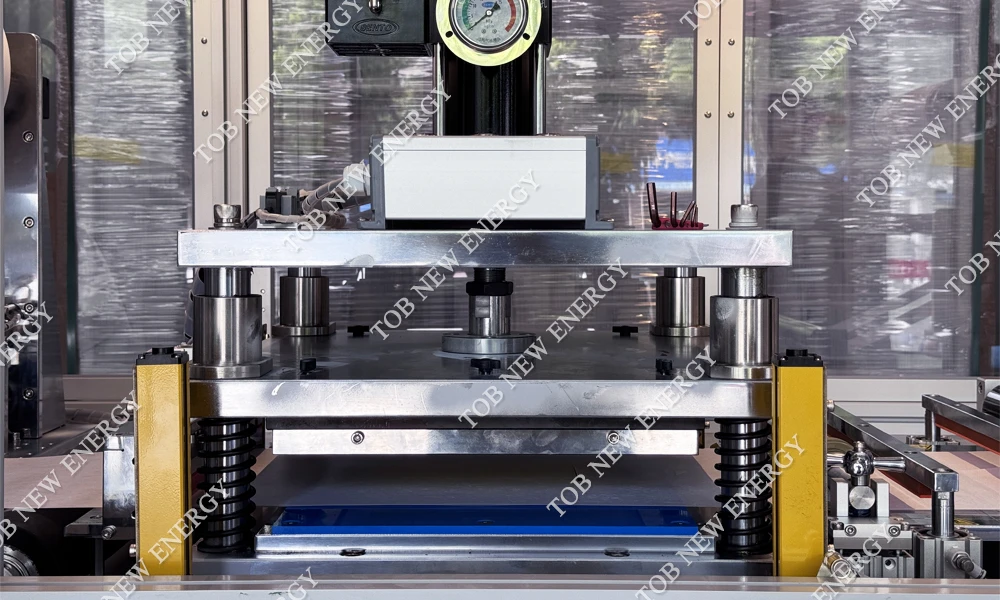

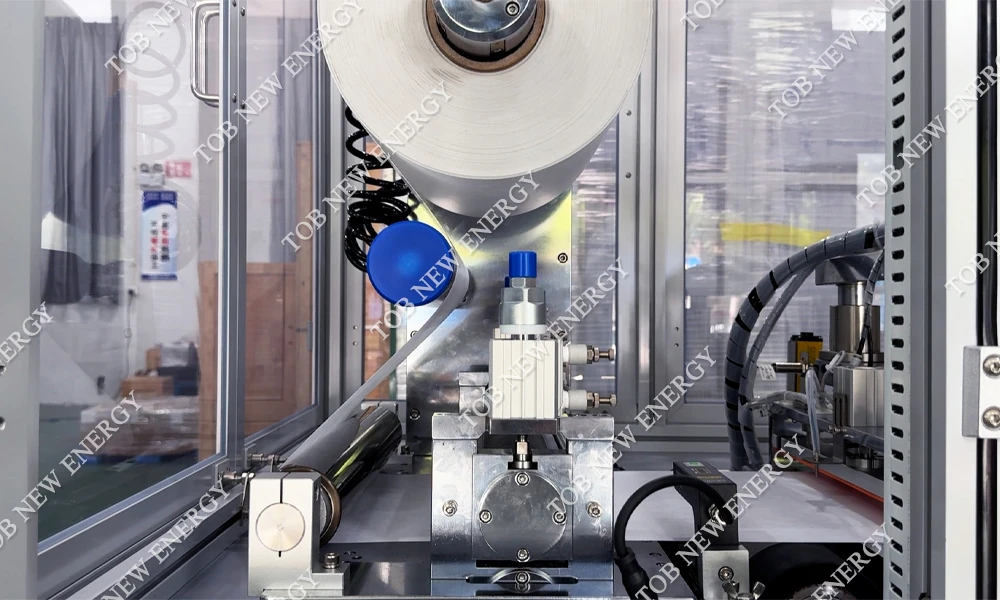

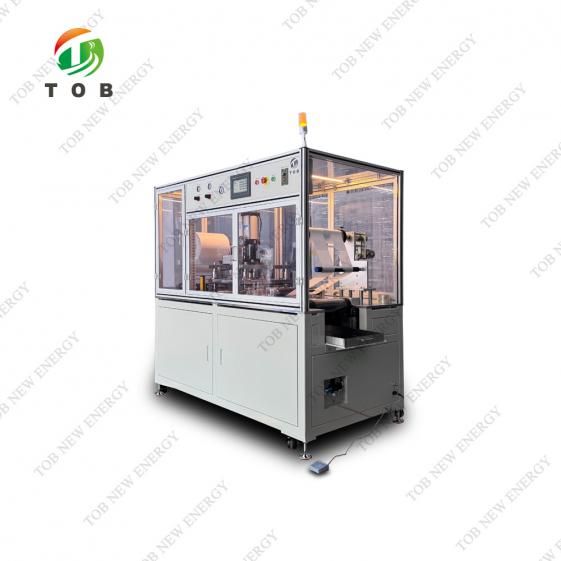

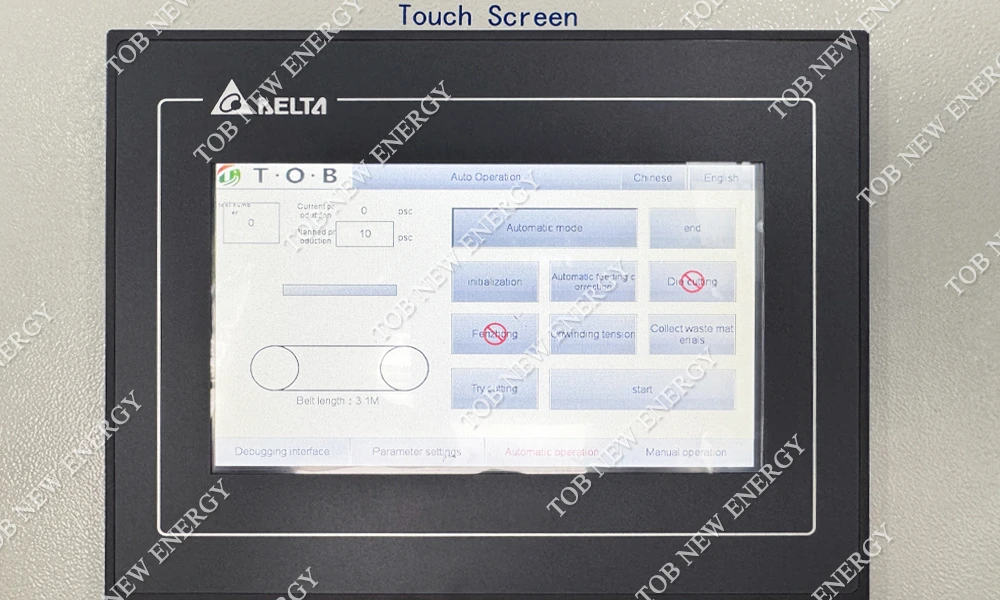

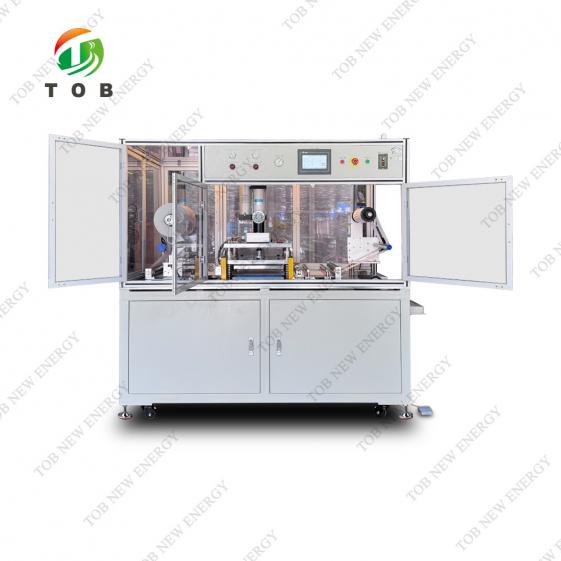

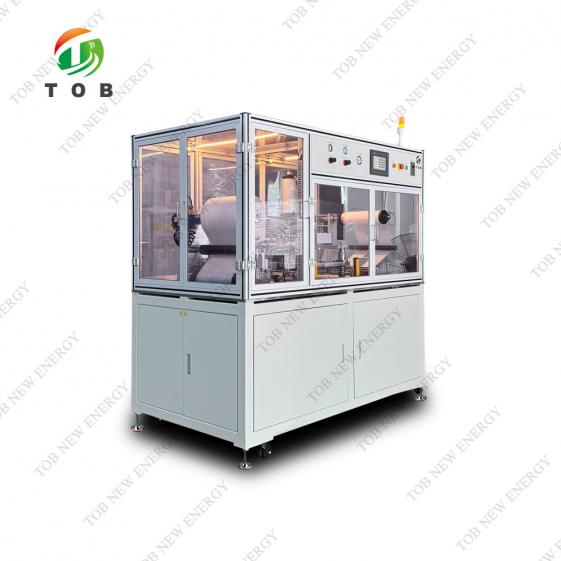

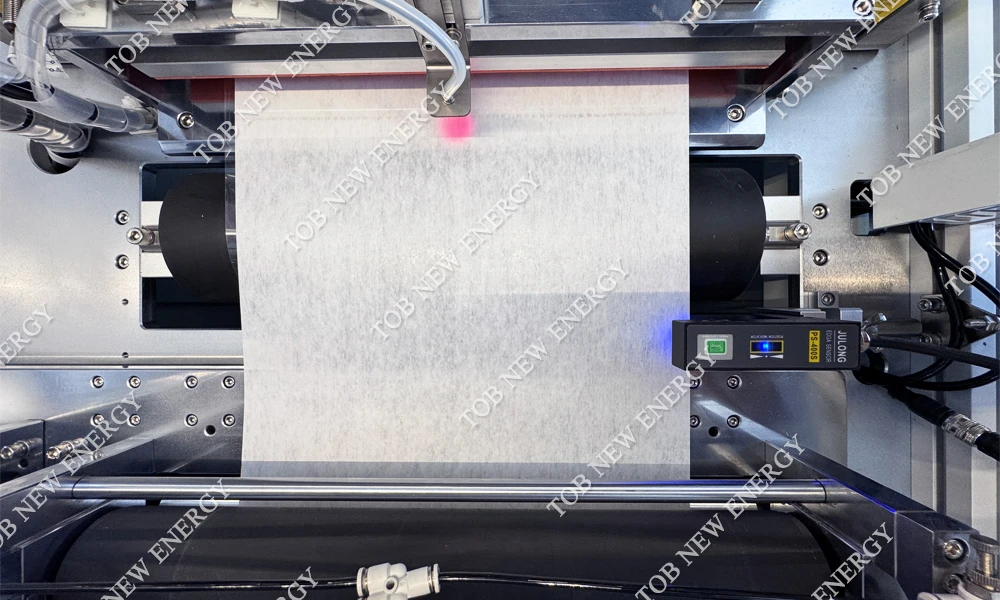

PRODUCT DISPLAY

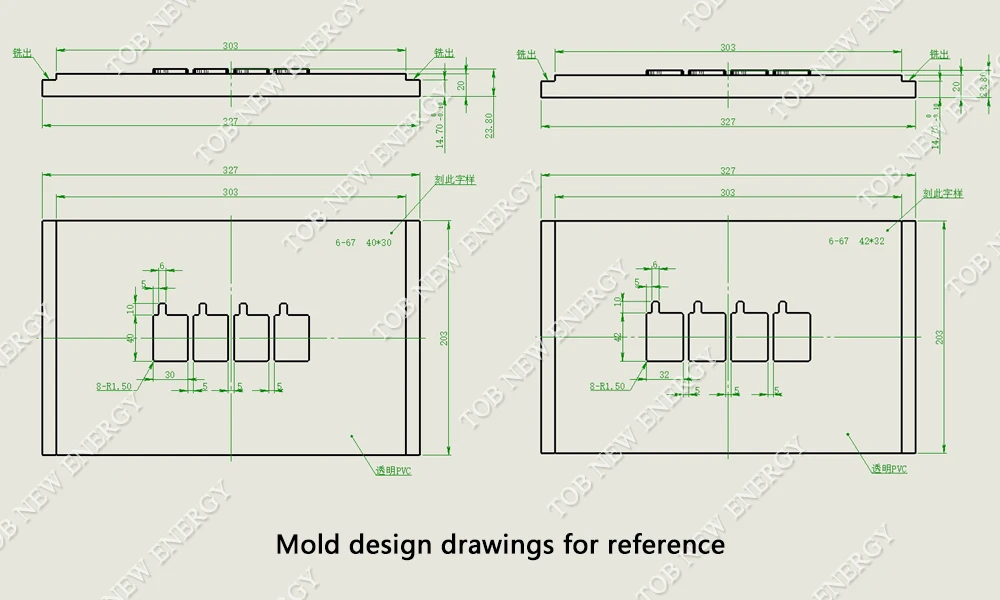

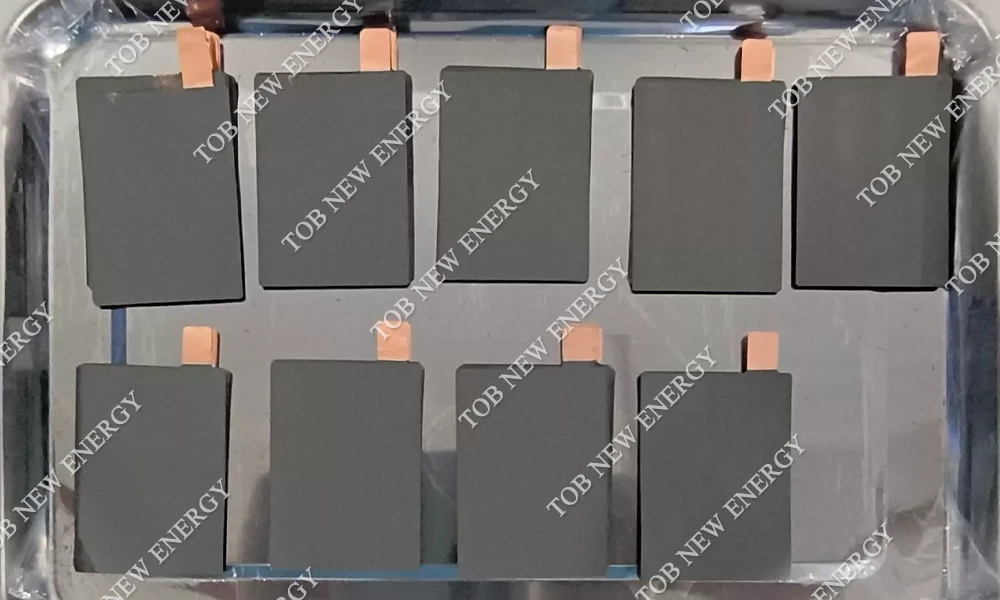

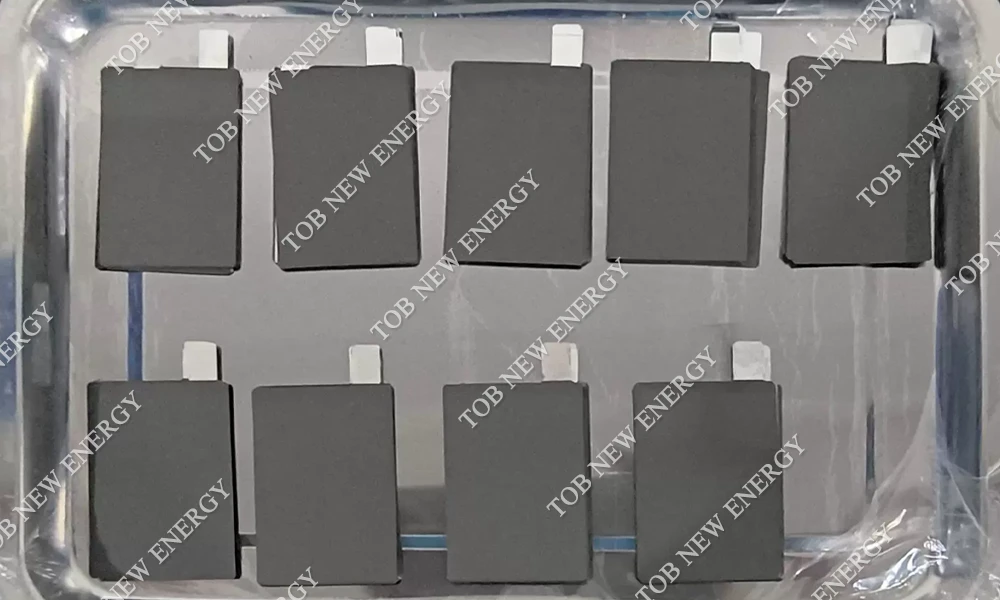

electrode cutting machine



 Email : tob.amy@tobmachine.com

 Skype :amywangbest86

 Whatsapp/Phone number :+86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

our works
related products
shear cutting machine
Semi-automatic Shear Cutting Machine For Lithium Battery Big Electrode Cutting
500mm Width Battery Electrode Shear Cutting Machine.
lithium battery electrode cutter
500*500mm Battery Electrode Die Cutting Machine
1 TOB-JD-500 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
Electrode Die cutting machine
200*300mm Battery Electrode Cutter Die Cutting Machine
TOB-MQ300 semi-automatic electrode die cutter cutting machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
Battery Cutting Machine
500mm Width Battery Cutting Machine
500mm Width Battery Cutting Machine
Battery Cutting Machine
Battery Electrode and Aluminum Laminated Film Cutting Machine
1 Thisbattery cutting machineis used for lithium battery anode/cathode electrode and aluminum laminated film Automatic continuous roller cutting. 2 For thisautomatic cutting machine,the cutting length can be set, and it’s cutting quantity can be counted and set automatically, it is a very useful machine for battery production line. 3 This battery cutting machine is used after electrode coating for cutting the electrode to big pieces for rolling press simply.
shear cutting machine
Battery Electrode Shear Cutting Machine 500mm
500mm Width Battery Electrode Shear Cutting Machine
Punching (cutting)  Anode and Cathode
Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode

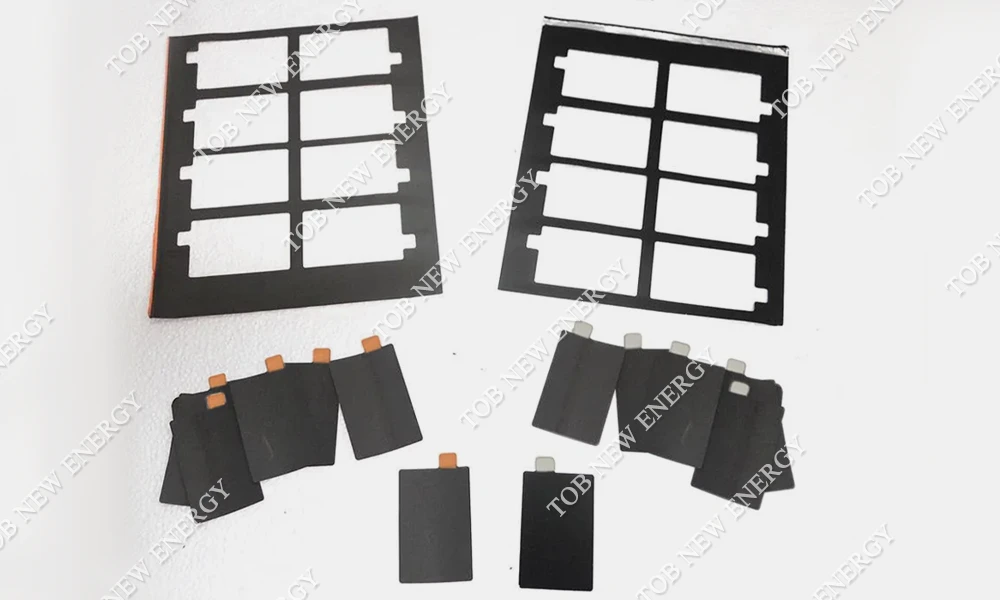

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell SPECIFICATIONS This machine is used for make the roll electrode into cell shape electrode automatically. 1 Roll electrode feeding automatically, controlled by Photoelectric switch 2 Adopt laser module to get high efficiency and accuracy Model TOB-04-350-DC Source voltage  AC 220V, 50HZ Power  4.2KW Air compression 0.6-07MPa Suitable battery size ≤350*200mm Max electrode width 360mm Cutter die height 23.8mm Accuracy of struggle 0.1mm Capacity 40-60times/min Dimension 2800*1400*900mm Weight 2500kg Finished electrode of the die cutter machine  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
