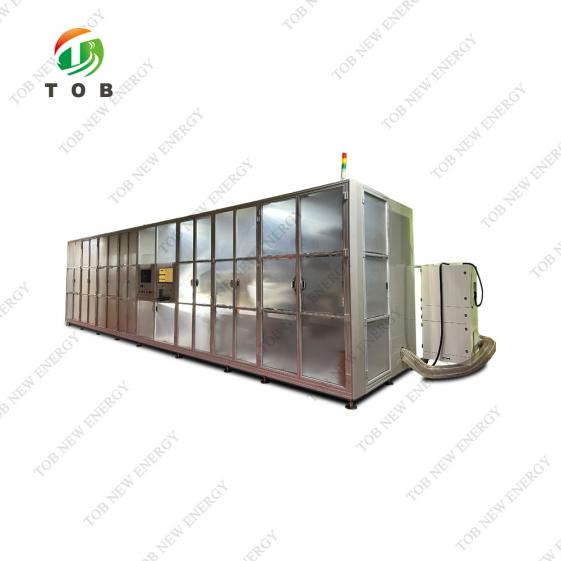

High Speed Battery Electrode Notching Machine

This TOB-J500D-AF high speed battery electrode notching machine is mainly used for forming power lithium battery electrode (continuous coating process).

Brand:
TOB NEW ENERGY
item no.:
TOB-J500D-AF
order(moq):
1set
Payment:
L/C, T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

High Speed Battery Electrode Notching Machine

Specifications(TOB-J500D-AF)

Introduction to equipment functions and principles

This equipment is mainly used for forming power lithium battery electrode (continuous coating process).

The equipment is used for forming the tab of rolled electrode (continuously coated electrode sheet), and its main functions include automatic unwinding of rolled electrode, electrode correction, die cutting of tabs, CCD defect inspection, electrode dust removal, CCD size detection, automatic winding of electrode, etc；

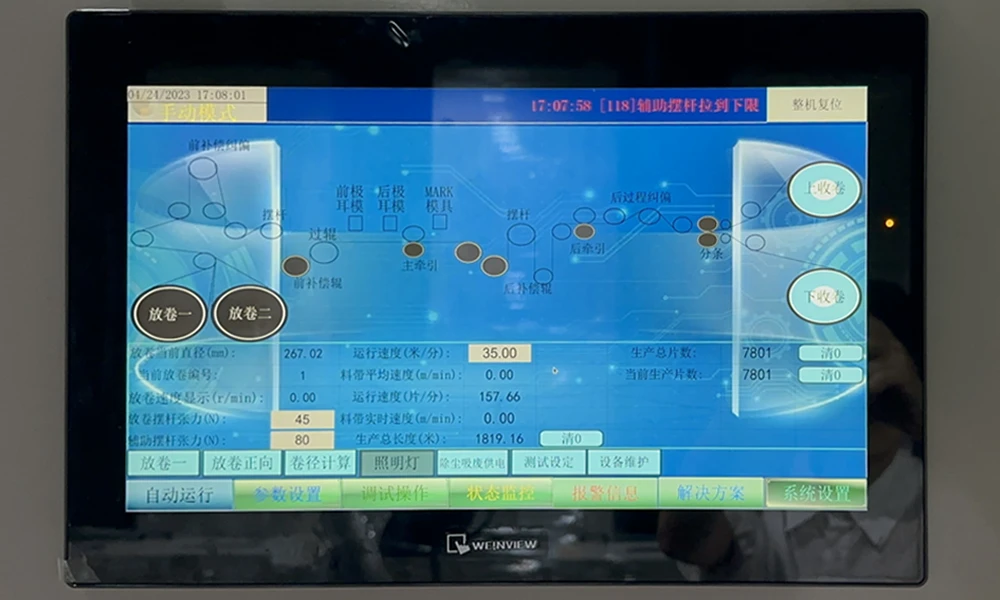

Equipment operation process and overall structure

Action Flow Chart

Equipment incoming material requirements：

Incoming materials suitable for the equipment

No	Item	Spec	Remark
1	Materials	Cathode: LFP system, NCM system, etc
2	Materials	Anode: Graphite syste, silicon carbon system, etc
3	Thickness	50～200μm
4	Width (Included tab)	120～500mm
5	Foil thickness	Cathode 8～15μm, anode 4.5～8μm
6	Form of incoming materials	Continuous coating
7	Incoming roll diameter and weight	Max:750mm, 500KG
8	Roller ID	6 inch
9	Incoming electrode winding alignment	±10mm
10	Serpentine bend error	≤3mm/m
11	Electrode wave edge	±3mm
12	Accuracy error of coating width edge	±0.5mm

Product forming parameters

Code	Size range（mm）	Accuracy（mm）
Dn	10～500	±0.2
W	120～450	±0.2
W1	10～40	±0.3
Jn	10～60	±0.2
R	≥3	±0.2
Total length	6000	±2
Total length	20000	±3
W+2W1	150～500

Technical parameters of equipment

No	Item	Parameters
1	Electrode length	150-500mm（Included tab）
2	Feeding roller ID	6 inch
3	Feeding OD	≥750mm / ≤ 500Kg
4	Winding OD	≤750mm
5	Equipment production speed	≥35M/min（Design ≥45M/min）
6	Electrode size accuracy	±0.2mm
7	Mold life	More than 1 million for a single time, and more than 10 times for grinding
8	Burr	Longitudinal ≤ 15um, Horizontal ≤ 10um
9	Winding tidiness	±1mm
10	Equipment noise	≤75 db（1M from the machine）
11	Power supply	3 phases AC380V±5%,50Hz Starting power≤40Kw、Operating power≤30Kw
12	Air source	Compressed air 0.5-0.6Mpa、Air consumption：1000L/min
13	Equipment dimension	About 9500×2300×2700mm（Main body)
14	Appearance color	Standard warm grey 1C, if required by the customer, color card shall be provided
15	Equipment weight	About 15000Kg
16	Product qualification rate	≥99.5%
17	Equipment failure rate	≤2%
18	Ambient temperature	0-50 C°

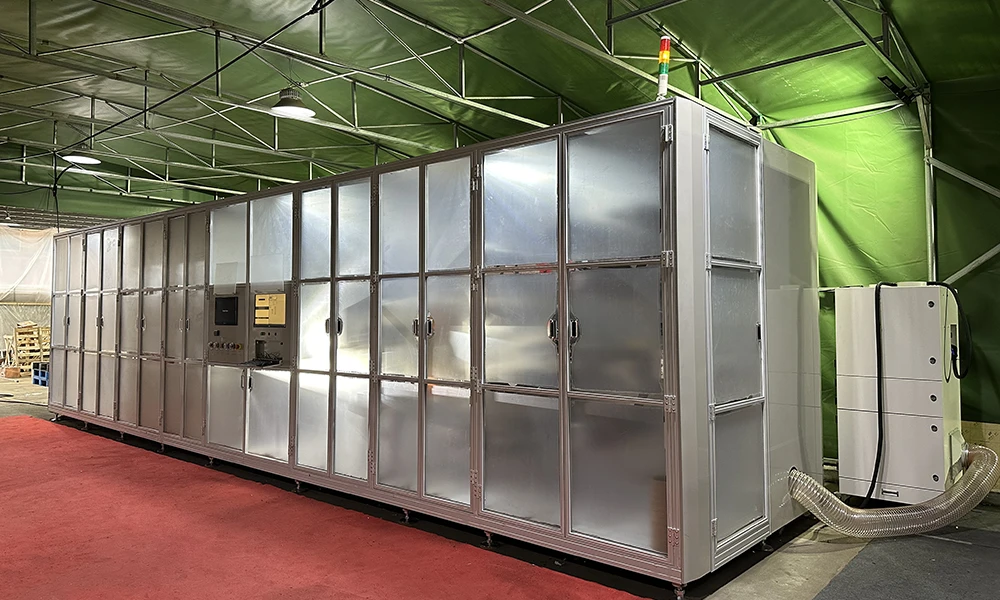

PRODUCT DISPLAY

Battery Electrode Notching Machine
