Lithium-ion Battery Safety Vibration Test System

SPECIFICATIONS

This TOB-EV-203 battery safety vibration test system is designed to simulate real-world mechanical vibration environments and subject lithium-ion batteries to controlled vibration profiles. Its primary purpose is to evaluate the structural integrity, electrical performance, and safety of lithium-ion battery cells, modules, or packs under sustained vibration stress. By replicating vibrations encountered during transportation (e.g., road, rail, air, sea) or in-use applications (e.g., electric vehicles, portable electronics, industrial equipment), the system helps identify potential failure modes such as internal short circuits, electrode detachment, casing damage, or electrolyte leakage. Testing with this system is essential for validating battery safety, ensuring compliance with international standards, and mitigating risks associated with vibration-induced battery failures.

Vibration Direction: Vertical + Horizontal

Equipment Configuration

Item	Configuration	Qty.
Vibration shaker	VG300-40 electromagnetic vibration generator	1 set
	BL-300 cooling blower (including silencer)	1 set
	VT640 vertical table 400 x 400mm	1 set
	H0404 Horizontal slip table 400 x 400mm	1 set
	Automatic centering system of armature	1 set
Digital switch power amplifier	Amp3K digital switch power amplifier	1 set
	Servo protection system	1 set
	Excitation power supply	1 set
Digital vibration controller (integrated instrument cabinet)	Master unit of digital vibration controller	1 set
	System acceleration sensor	1 pcs
	Control computer	1 set
	Control software installation disc	1 set
Attached accessories	Extension cable and duct hose	1 set
	Operation instructions, inspection report, certificate, maintenance manual, etc.	1 set
	Attached special tools	1 set
	Vibration press rod / holddown strip fixture	1 set

Technical Parameters

Parameters of VG300-40 Electro-dynamic shaker
Max. sine force		300Kg.f peak (3kN)
Max. random force		300Kg.f r.ms (3kN)
Max. shock force		600Kg.f peak (6kN)
Frequency range		1～4000Hz
Max. displacement		38mm p-p
Max. velocity		2.0m/s
Max. acceleration		100G (980 m/s2)
Max. load (sine) F=M.A
5G (49 m/s2)	10G (98 m/s2)		20G (196 m/s2)	30G (294 m/s2)
57kg	27kg		12kg	7kg
Effective load	120 kg
Vibration isolation frequency	2.5 Hz
Diameter of armature	Ф150 mm
Mass of armature	3kg
Table screw	13×M8
Flux leakage	＜10gauss
Allowable eccentric moment	300N.m
Shaker dimensions	750×560×670 mm (Vertical table)
Shaker weight	About 560Kg
Amp3K digital switch power amplifier
Output power	4KVA
Output voltage	100V
Output current	30A
Power amplifier console	880×590×1680mm
Weight	230KG
Servo protection system
Functions:	Temperature, air pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss, etc.
Digital vibration controller
Hardware configuration:	2-channels input, 1-channel output Function: Sine, Random, Shock
Control computer	1 set
Software	Chinese / English instructions are provided, and the software is available for time-domain and frequency-domain analysis,signalsourceandsine frequency sweep analysis, etc. It also can automatically generate WORD test report, display and store signal and data, and set testingparametersand analysis function.
Operating system	Win7/10
Acceleration sensorLAB	Frequency range:0.3 to 7000Hz Sensitivity: 30pC/g Temperature range: -40℃ to 160℃
VT640 Vertical table
Material	Aluminum Alloy
Dimension	400 x 400 mm
Fixing hole	M8 durable andwear-resistant stainless steel screw sleeve
Frequency of use	2000 Hz
Weight	15 KG
H0404 Horizontal slip table
Material	Aluminum-magnesium alloy with surface hard anodized
Dimension	400mm×400mm
Fixing hole	M8 durable and wear-resistant stainless steel screw sleeve
Frequency of use	2000Hz
Weight	20KG
BL-300 cooling blower (including silencer)
Cooling method	Air cooling
Blower power	1.1KW
Flow rate	1404m3/h
Electrical requirement
Power	Three phase,380V/50Hz，15 KVA
Ground resistance	≤4Ω

PRODUCT DISPLAY

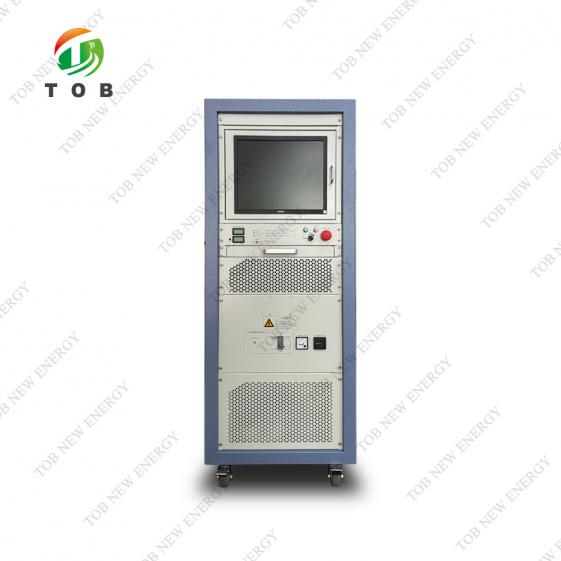

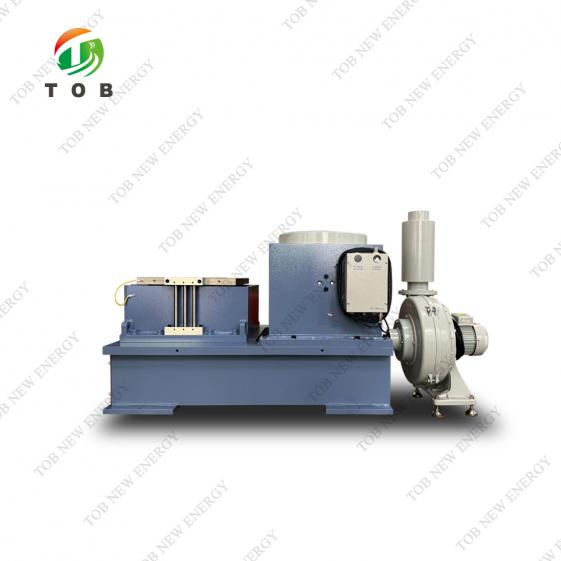

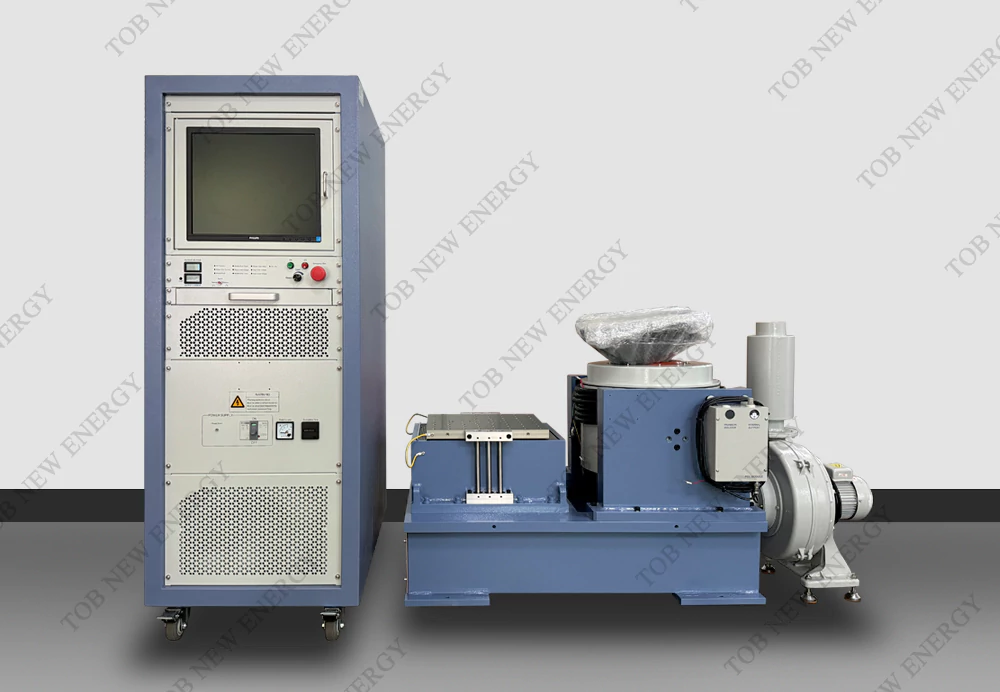

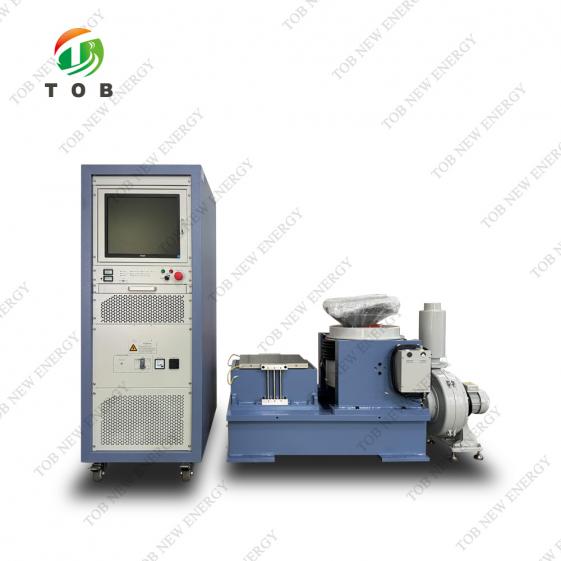

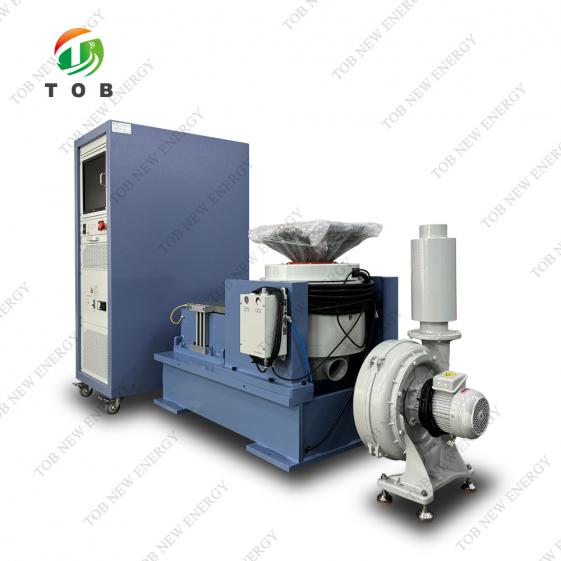

Lithium-ion-Battery-Safety-Vibration-Test-System
