1. Product Name
|
|
Name
|

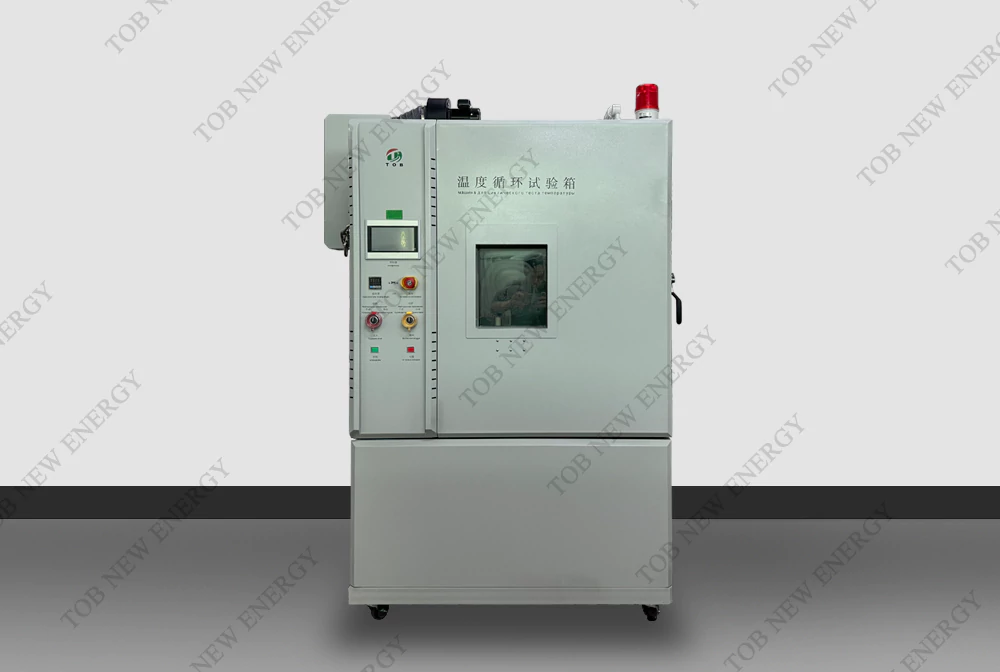

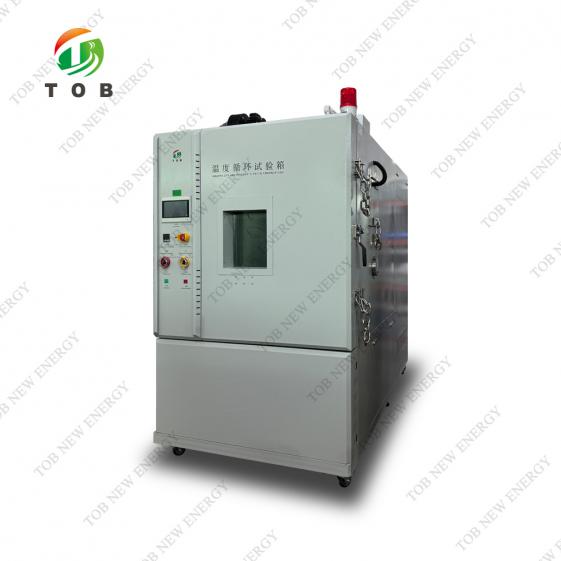

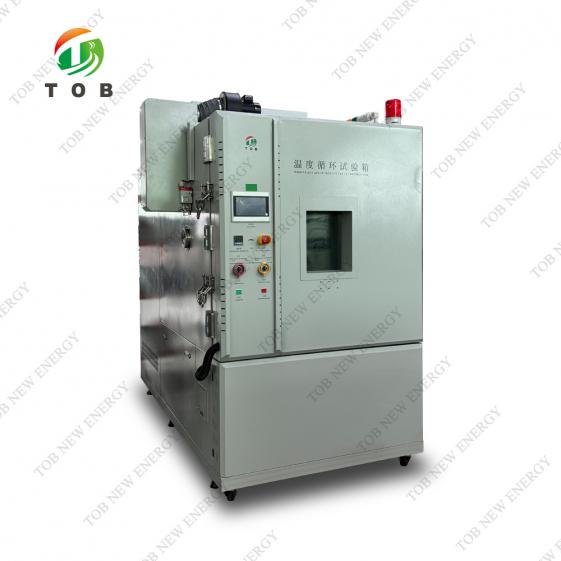

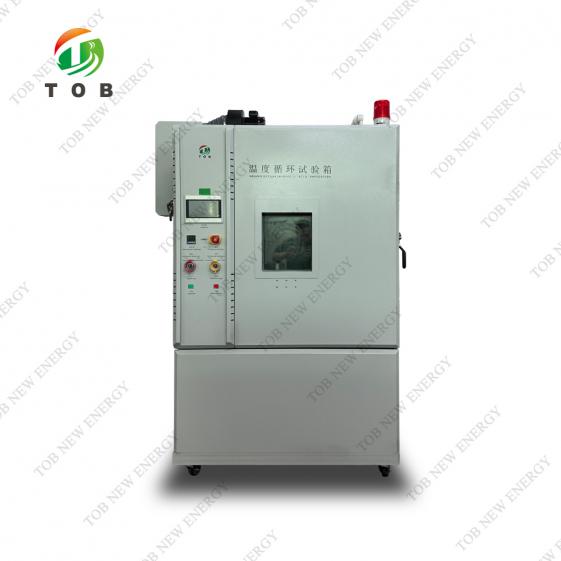

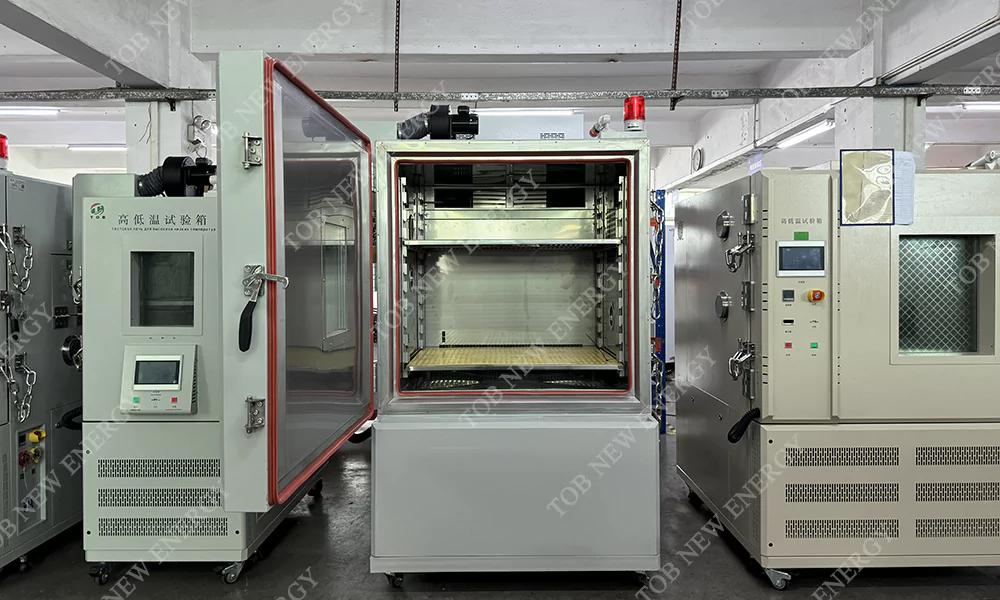

Battery temperature cycling testing machine
|
|
Model
|
TOB-KS5-800C
|
|
2. Application &
Limitation
|
|
Application
|
This TOB-KS5-800C temperature cycling tester mainly used for
battery and electronic products, components and other materials high low
temperature test, temperature change, etc. Environment simulate reliability
test.
|
|
3. Volume & Dimension
|
|
Effective Volume
|
800L
|
|
Inner Dimension
|
W1000*H1000*D800mm
|
|
Overall Dimension
|
W1340*H1900*D1920mm（Kindly remark：exact overall dimension please refer to the final design
drawing !）
|
|
4. Performance
|
|
Condition
|
Air cooling type under environment temp.+5℃～+35℃,relative humidity≤85%.No load(without specimen in the
testing zone)
|
|
Temp. Range
|
-40℃~+150℃
|
|
Temp. Fluctuation
|
±0.5℃
|
|
Temp. Deviation
|
≤±2.0℃
|
|
Temp. Uniformity
|
≤±2.0℃
|
|
Temp. Heating Time
|
From -40~85℃, 5℃/min,average
non-linear control ,no load
|
|
Temp. Cooling Time
|
From 85~-40℃,5℃/min,average non-linear control ,no
load
|
|
Max. Loading
|
No
|
|
Constant Max.Heating Load
|
No
|
|
Noise
|
≤85dB
|
|
Standard Compliance
|
Standard Compliance :
|
|
IEC60068-2-1:2007
|
|
IEC60068-2-2:2007
|
|
IEC60068-2-78:2007
|
|
Weight
|
800KG
|
|
Power source
|
380V, 50Hz,three phase
|
|
Power
|
20.0KW
|
|
5. Structure & Material
|
|
External Chamber
|
1.2mm Cold-roll steel sheets with painting.
|
|
Internal Chamber
|
1.0mm SUS#304 high &low temperature resistance stainless
steel.
|
|
Insulation Material
|
100mm PU Polyurethane foam insulation material.
|
|
Chamber Door
|
Single open door.
|
|
Observation Window
|
With vacuum glass observation window on the door ;and door frame
with electric heat resistant, anti-frosting, anti-condensing devices, ensures
clear observation of the specimen under testing.
|
|
Testing Hole
|
2 pcs￠100mm
testing hole on side of the chamber, with silicon seal and stainless steel
cover.
|
|
Sealing
|
Adopt original imported silicon rubber strip, with high sealing
performance.
|
|

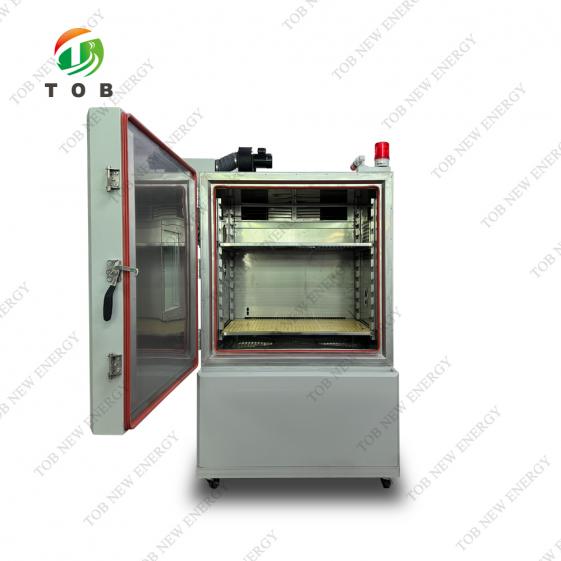

Sample holder
|
Sample holder with insulation material ,2 layers,capacity
50kg/layer.
|
|
Lighting inside chamber
|
1 set energy saving light inside the observation window
|
|
Pressure Balance Port
|
Installed mechanical pressure close type balance adjustment device
to avoid pressure difference influence the test chamber strength when do high
temp. test.
|
|

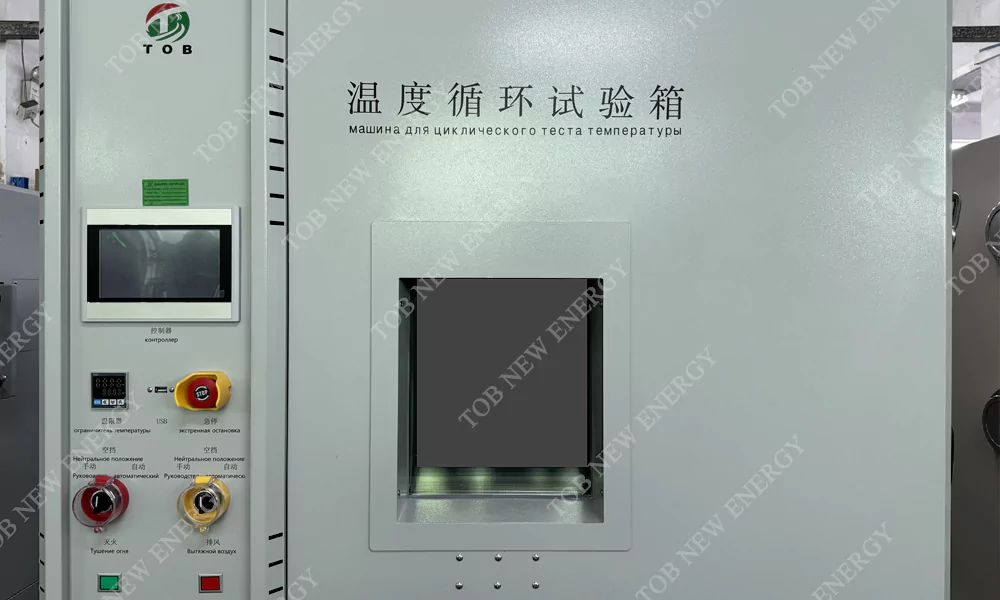

Control Panel
|
Touch screen controller,Power switch,lighting,over-temp
protector,RS-485.
|
|
Safety device
|
1 set of smoke exhaust system
|
|
1 set of tri-color light to
indicator the equipment running status.
|
|
2 pieces of security chain on
the chamber’s side.
|
|
1 set of pressure relief door.
|
|
6. Air Supply System
|
|
Air supply feature
|
From upper to lower air supply circulation.
|
|
Cyclic Motor
|
Taiwan low pressure asynchronous motor
|
|
Blower
|
Multi-blades centrifugal circulating blower, high low temp.
resistant aluminum blades
|
|
Sensor
|
PT100 temperature sensor
|
|
7. Refrigeration System
|
|
Air cooling method
|
Air cooling type compressor
|
|
Compressor
|
GEA BOKE compressor or other similar level for options
|
|
Refrigerant
|
R448a
|
|
Condenser
|
Air coolinghigh efficiency forced convection
finned type
|
|
Evaporator
|
High efficiency multi-segment fin type evaporator
|
|
Others
|
Oil Separator ,Solenoid valve ,etc..with famous brand
|
|
8. Heating System
|
|
Heating tube
|
Naked wire type nickel chromium alloy electric heating tube
|
|
9. Controller & Control
Circuit—Customized controller
|
|
Controller
|
Customized controller
|
|
10. Protection Function
|
|
1.With specimen anti-condensing,
over-temperature protection (also with independent adjustable temperature
protector)
|
|
2. No fuse protection switch
|
|
3. Heater over-temp. Protection
switch
|
|
4.Compressor over-load, over
heating
|
|
5. Compressor high low pressure
protection
|
|
6. System over current protection
device
|
|
7. Controller fault self
diagnosis and display function
|
|
8. Phase-sequence protection
function
|
|
11. Other Accessories
|
|
Standard
Configuration
|
Layers sample shelf ,loading capacity (average)50KG/Layer.
|
|
Corks for diameter 100mm
testing hole.
|
|
Operation & Maintenance
manual and monitoring software.
|
|
12. Operating Condition
|
|
1. Environment Temp. : 5℃-35℃;
|
|
2. Relative Humidity: ≤85%RH;
|
|
3. Atmospheric Pressure：80kPa~106kPa
|
|
4. Away from strong vibration
source
|
|
5. Power source:
|
|
5.1 380V,50Hz 3 Ph 4 wires
+grounding wire, earthing resistance≤4Ω
|
|
6. Frequency: 50Hz (60Hz Optional)
|
|
7. Humidifying water: resistant
rate≥500MΩ;
|
|
8. Environment air quality
requirement: without high density powder, easy firing, easy explosive air or
powder, away from strong electromagnetic source
|
|
9. Avoid test or storage of easy
firing, easy explosive, volatilization and corrosive specimens.
|
|
10. Standard specimen place
requirement：
|
|
10.1
Specimen weight less than 80KG/m³
|
|
10.2 Whole specimen dimensionless than 2/5 of the chamber inner
volume, each layer less the 2/5 area. Otherwise will seriously effect the
chamber performance or the normal operation.
|
