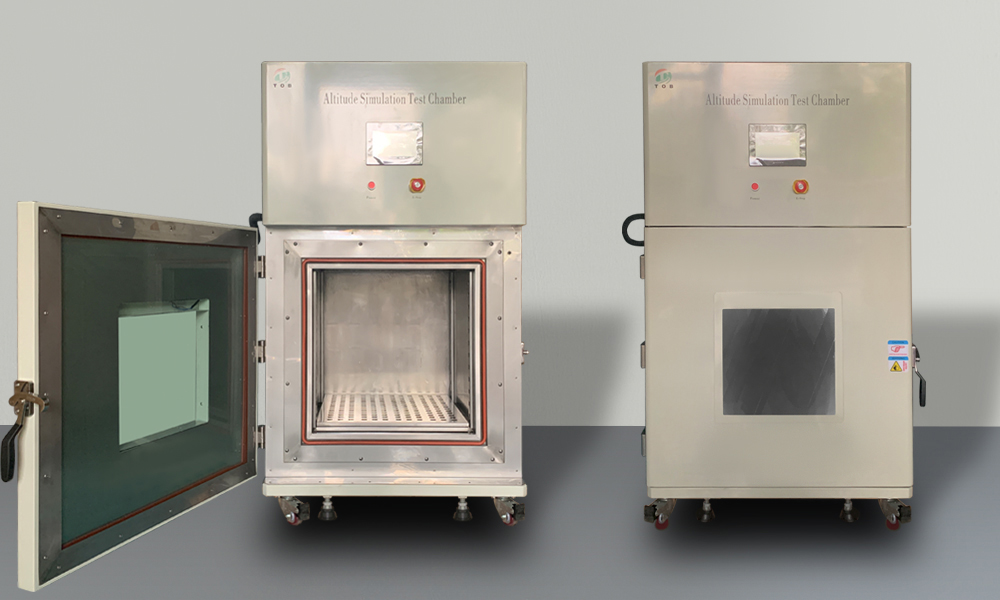

Attitude Simulation Low Pressure Test Chamber for Lithium-ion Battery

Suitable for battery low pressure (high attitude) simulation test, all the testing specimen are being tested under 11.6kPa (1.68psi)
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-8104
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Attitude Simulation Low Pressure Test Chamber for Lithium-ion Battery


SPECIFICATIONS


Battery low pressure (high attitude) simulation test, all the testing specimen are being tested under 11.6kPa (1.68psi) .

To judge the test result on condition of no explosion, flame, smoke,  electric leakage after test. And the battery protection valve should not be broken.


Temp. Range

Ambient Temperature

Display Method

PLC touch screen Display

Pressure

0 ~ -96Kpa(negative pressure) ornormal pressures~ 5Kpa(positive pressure);

Pressure Fluctuation

0.1Kpa;

Vacuum Time

normal pressures~-96Kpa less than 10 mins

System Sealing

Leakage is less than 1Kpa per hour

Time

99H59M59S(can be setting)

Internal Dimension

Inner Diameterφ590mmxD600mm

Internal Material

45# Steel seamless tube with thickness 10mm.

External Dimension

W940 X D780 X H1620mm(please refer the final design drawings)

External Material

SECC steel plate,,power painted

Bottom

Installed with universal wheel

Observation Window

Toughened glass with explosion - proof membrane

Power Source

AC 220V 50HZ

Power

2.0KW


Structure

  • Chamber adopt high quality cold rolled steel plate, surface with powder painted, with strong anti-rust ability.
  • Working room with high quality stainless steel plate, rounded shape,smooth, and easy for cleaning .
  • Between working room and chamber, filled with superfine glass fiber insulation material .
  • Chamber door with double toughened glass structure,available for clear observation of the inside chamber .
  • Installed rubber sealing ring between working room and glass door, ensure high vacuum rate inside the chamber .
  • Integrated type : low pressure chamber on upper side, and vacuum pump on bottom side .
Notices
  • When transportation, please with no force on the glass, and no shock on chamber body.
  • The machine shall be placed on flat floor.
  • No use under environment of direct sunshine or high temperature & moisture place.
  • Away from strong electromagnetic interference, and machine with well grounding.
  • When normal running, the specimen shall not touch the inner chamber wall.
  • Power wire not abut on back side, and do not let the machine or other objects press on it, avoid wire broken.


PRODUCT DISPLAY

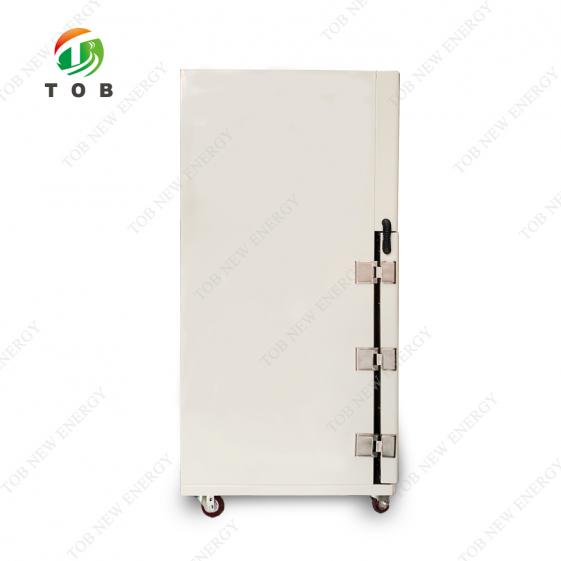

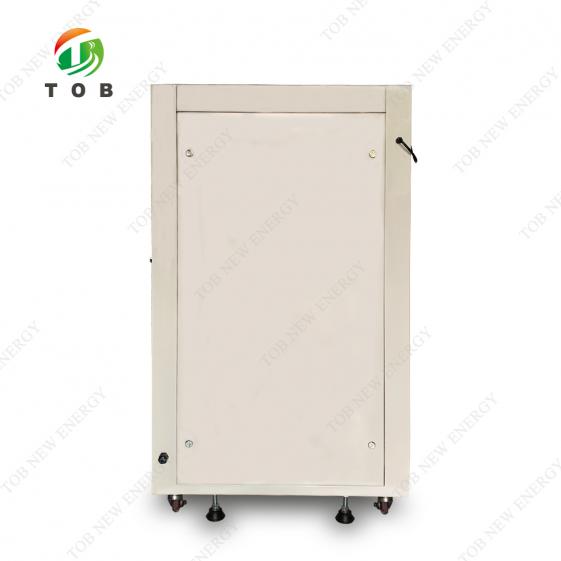

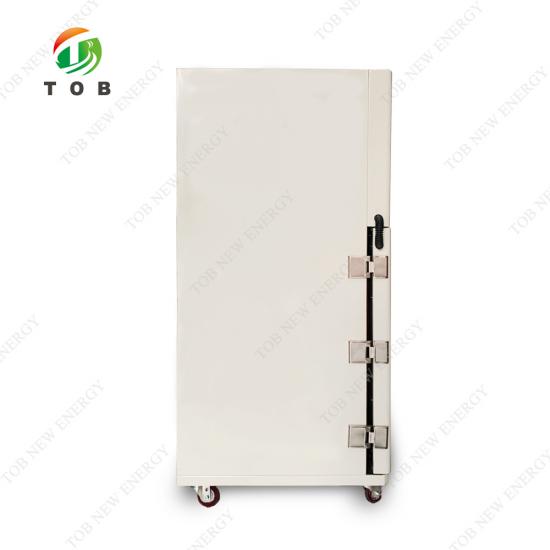

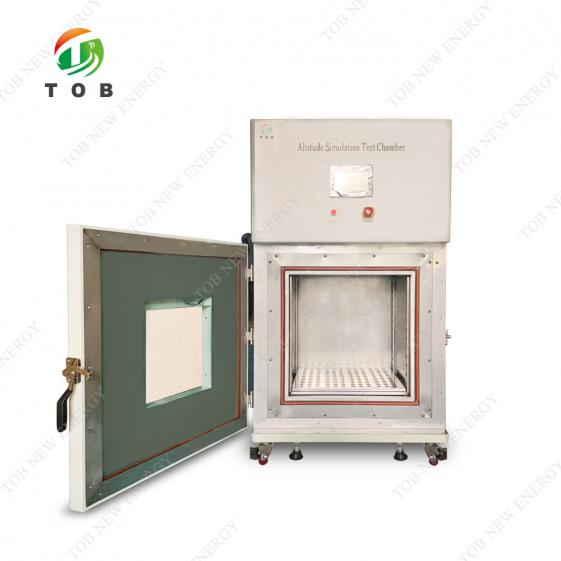

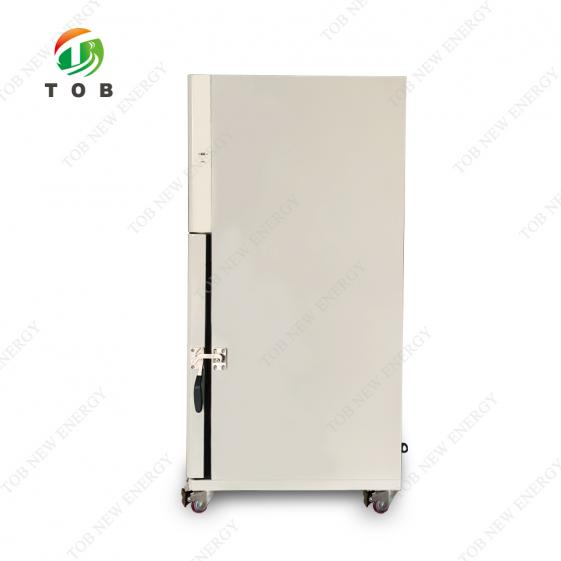

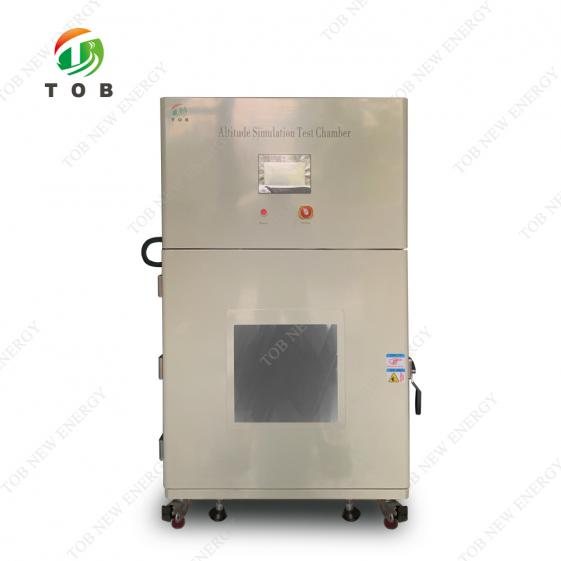

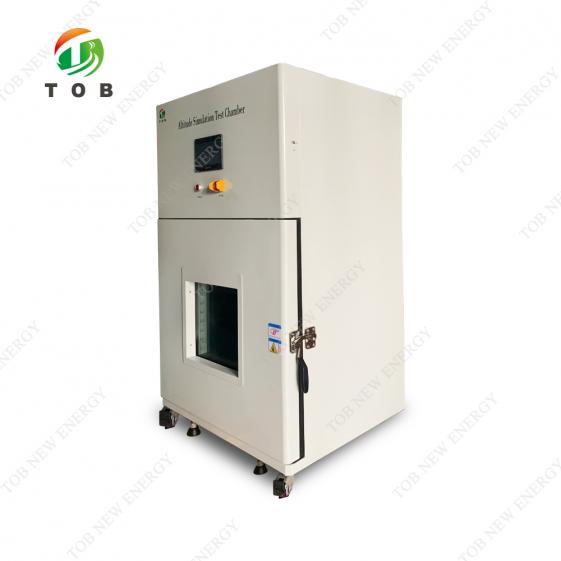

Low Pressure Test Chamber
