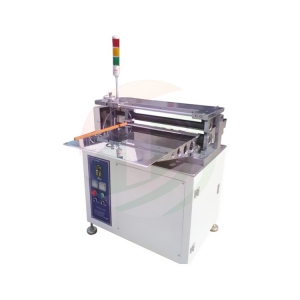

Adjustable Slitter Machine For Battery Electrode

Update: 2014-05-15      View:16903
  • Item Num :TOB-ASM-500
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union, Paypal
  • Product Orgin:China
  • Delivery Time :7
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Adjustable Slitter Machine For Battery Electrode

Introduction

Semi-Automatic Adjustable Slitter Machine for Electrodes of Cylinder Battery And Prismatic Battery Without Changing Cutter Blade


SPECIFICATIONS

1 TOB-ASM-500 Adjustable slitting machine is a semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2 The Adjustable slitting machine is with cutting width adjusting range from 25-300 mm without changing cutter blade.

Model

Adjustable Slitter Machine  TOB-ASM-500

Source voltage

AC110v-220V customized according to requirements. 50HZ/60HZ

Power

1000W

Warranty

One year limited warranty and lifetime support

Compressed air

≥ 0.6MPa

Vacuum air source

≤ -0.095MPa

Suitable electrode width

≤ 500mm

Slitting width

25-300mm, adjustable

Dimension

1300*900*1400mm

Weight

200kg

Slitting speed

0-30m/min

Knife life

200 000 times

REFERENCE PICTURES

Finished electrode by battery slitting machine

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery


Contact Mode

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609
