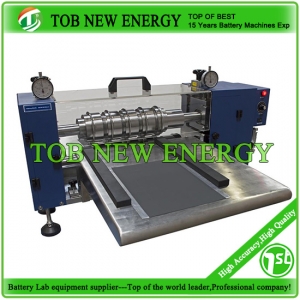

Semi Automatic slitting Machine For Battery Electrode

Semi Automatic slitting Machine For Battery Electrode
  • item no.:

    TOB-MSK-300
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Semi-Automatic Slitting Machine for Electrodes of Lithium Battery


SPECIFICATIONS


TOB-MSK-300 is a CE Certifiedsemi-automatic slitting machine(roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.


Model

 Semi Automatic slitting Machine  TOB-MSK-300

Working Voltage

Machine Input: 22-24V DC with 5mm barrel connector

Power Input: 110-240V AC , which can be used worldwide

Max. Power Consumption

100W

Cutting Method

Two round blades rolling to cut

Blade Materials: Tungsten alloys

Blade Diameter: 100mm


Cutting Width

A 4 sets of slitting blades (two blades with slitting width of 58mm,

and another two with slitting width of 56 mm)

B Customization: 25 - 250mm cutting width is available at extra cost,

please contact us for details.

Cutting Thickness

100 - 300 microns

Cutting Speed

0 - 4 meter / minute Adjustable

Product Dimensions

84.3cm(L) x 101cm(W) x 48cm(H)

Warranty

One year limited warranty with lifetime support

Net Weight

110kg (250 lbs)

PRODUCT DISPLAY

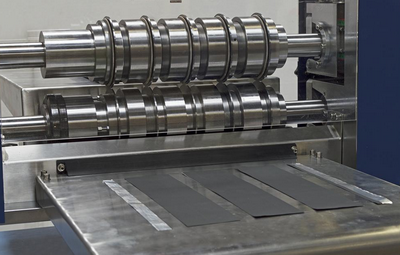

roll slitting

Roller slitter

slitting machine
