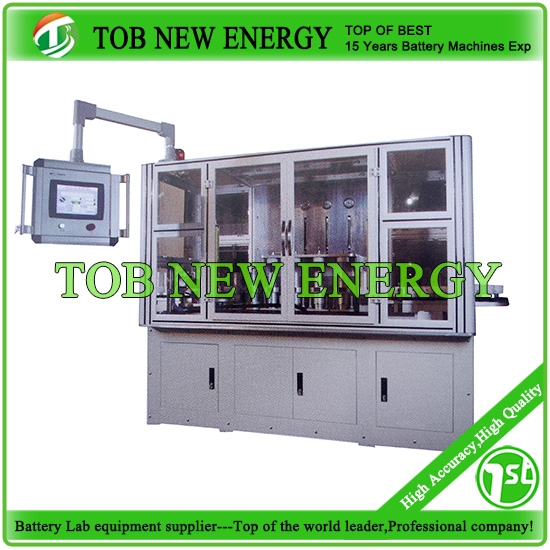

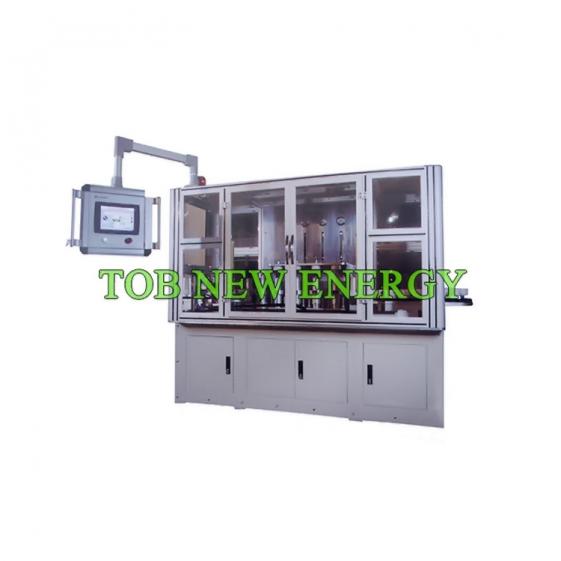

Automatic vacuum liquid injection machine

Update: 2015-10-21      View:7743
  • Item Num :TOB-300C-4Y
  • Shipping Port: XIAMEN
  • MOQ :1set
  • Payment :L/C,T/T,Western Union, Paypal
  • Product Orgin:China
  • Delivery Time :7days
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Automatic vacuum liquid injection machine

Introduction

Automatic vacuum liquid injection machine for supercapacitor and lithium ion battery

SPECIFICATIONS

一、Functional overview

The device is suitable for vacuum liquid injection of supercapactior and lithium ion power battery.

二、Functional characteristics

1.Adopt annular guide rail as the receiving or discharging mechanism,and coordinate with servo manipulator to

 realize automation feeding.

2.Equipped with the imported two dimensional bar code scanner.The data can be stored and derived,

for the convenience of traceability and quality control on the product.

3.Equipped with the imported precsion weighing device to control the weight of the product before and after

liquid injection so as to ensure the quality of  liquid injection.

4.Equipped with the imported laser positioning device to automatically look for positions for liquid injection holes.

5.The products liquid injection height is adjusted to adapt for the product of different specifications.

6.Adopt the imported PLC.Touch screen displays operation,conveniently and quickly.

7.Equipped with security guard shield and safety light grid,with safe and reliable device operation.

8.Case adopts dust-proof glass cover.The device is top-grade and dust-proof.

 三、Technical parameters

Power source

AC220V/50HZ

Air source

0.4~0.7MPa

Supercapacitor dimension

Φ60*100~140Hmm/

79(L)*56(W)*200~230(H)mmcustomized

Pumping speed of the vacuum pump

≥8L/min

The minimum vacuum

-98kPa

Weighing resolution

0.1g

Precison injection fluid

±1%

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
