Mesocarbon Microbeads (MCMB) were developed with the discovery and research of mesophases.

Due to its unique spherical shape and stable internal structure, MCMB can meet the requirements of large current charge and discharge.

The specific surface area is small, and the irreversible capacity loss caused by side reactions such as SEI film formation on the surface of the electrolyte during charging is reduced, and safety can be improved;

MCMB has a parallel arrangement of layered molecules, which is published in the intercalation and deintercalation of lithium ions. Generally, after classification, the products meeting the particle size requirements are directly used as lithium ion anode materials;

Model：AGB-3

Particle size：

1.D10 = 6 - 10 um

2.D50 = 9 - 14 um

3.D90 = 16 - 22 um

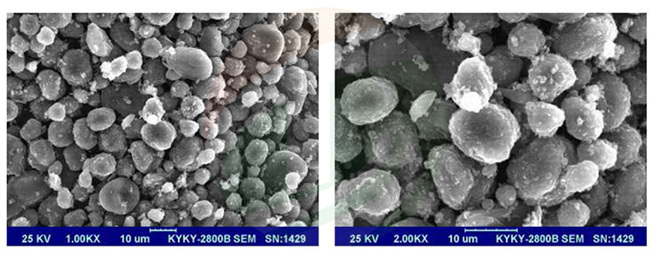

SEM

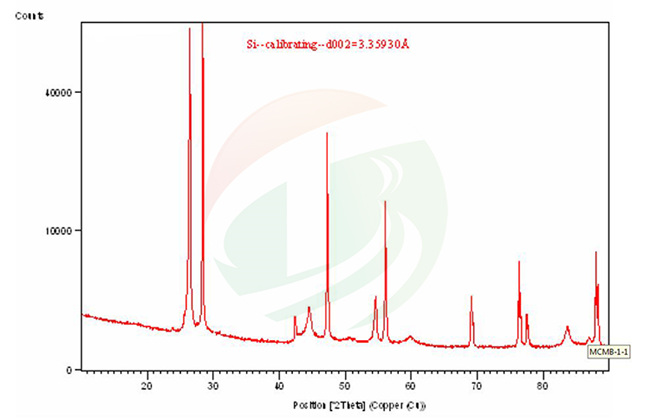

XRD

TOB NEW ENERGY LIMITED is specialized in lithium battery,supercapacitor battery equipments and materials, We can supply a full set of equipments technonogy materials etc.

If you are interesting in this, feel free to contact with us.
