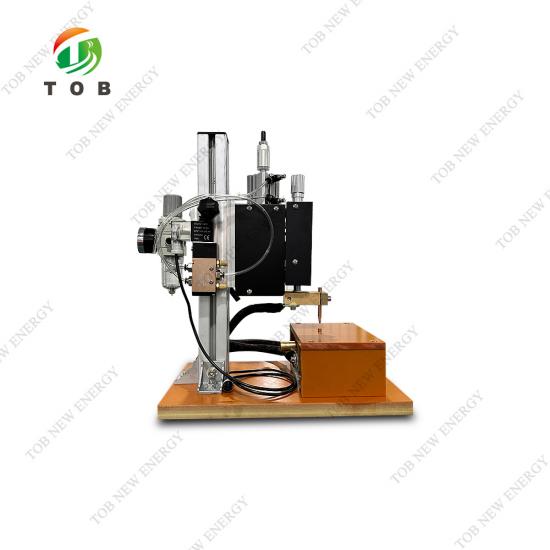

Manual Spot Welding Machine

Update: 2018-11-28      View:150
  • Item Num :TOB-HDP300S
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union, Paypal
  • Product Orgin:China
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : Manual Spot Welding Machine

Introduction

Small Battery Pack Manual Spot Welding Machine



SPECIFICATIONS

Main technical features :

DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .

High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.

LCD display.

High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.

Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.

The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.

Double pulse can reduce welding spatter, effectively improve the quality of welding.

Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.

Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.

Model

TOB-HDP-3000S

Transformer maximum output  power

25KVA

Two sides of the maximum welding current

6000A

DC energy storage capacity

6600uF

Welding control method

Imported IGBT module control, double pulse welding

Welding voltage

5v-330v adjustable, precision 0.5V

welding time

0.1ms-5.0msdjustable, precision 0.1ms

Welding mode

Normal / continuous

input frequency

AC 220V±10% 50Hz±2Hz

Maximum working pressure

6KG

Weight

65KG



Weld thickness

Maximum thickness of parallel welding:0.03mm~0.5mm ,Multiple welding sheet

OPERATION VIDEO


PRODUCT DISPLAY

PACKING
