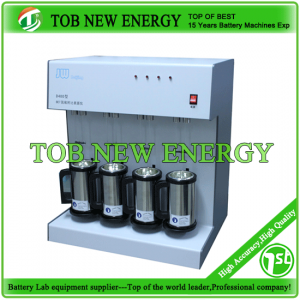

Surface Area Analyzer With Surface area ≥ 0.01m2/g

Update: 2015-03-11      View:9134
  • Item Num :TOB-JW-DX
  • Shipping Port: XIAMEN
  • MOQ :1
  • Payment :L/C,T/T,Western Union
  • Product Orgin:China
  • Delivery Time :7
  • Price:     12500$/SET
  • Order Online

have a question? you can call us or Email us by sending a message below.

Subject : Surface Area Analyzer With Surface area ≥ 0.01m2/g


Bet Surface Area Analyzer With Testing Range ≥ 0.01m2/g



Voltage: 100V~220V ± 10V

Frequency: 50/60Hz

Maximum power: 300W

Connection: grounding, single-phase power socket


Physical properties

Length: 61cm (24.0 inches)

Width: 36cm (14.2 inches)

Height: 69cm (27.2inches)

Weight: 49kg (108.0 lbs)

Accessories weight: 31kg (68.3 lbs)

Installation requirements (L * W) 100 * 60cm (not including space computers taking up)


Work environment

Temperature: 20 ℃ -28 ℃

Maximum relative humidity: 70%


Technical Parameters

Test principal: Continuous Flow Chromatography method, Low temperature nitrogen adsorption

Test methods: Direct Comparison method

Gas: mixed gas of high purity nitrogen and helium (The proportion of nitrogen and helium is 3/7; and gas purity is 99.999%).

Flow control: automatic control program, P / Po 0.05 - 0.35, control accuracy error ≤ 0.5%;

Measuring range:  Surface area ≥ 0.01m2/g, no upper limits;

Sample NO:  one standard sample and 3 samples tested

Test Efficiency: Direct comparison measures specific surface area: 15 minutes for three samples

Repeatability Accuracy:  ≤ ±1 %

Data acquisition: high-precision data acquisition and processing chip, high anti-interference ability.

Data processing: WINDOWS-compatible data processing software, completely green without installing, providing multi-mode data analysis, graphical processing interface, real-time monitoring experiment, simple operation.

Control system: The entire testing process is completely automatic. With large volume dewar and liquid nitrogen surface control technology, the whole experiment don’t need add liquid nitrogen.


1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
