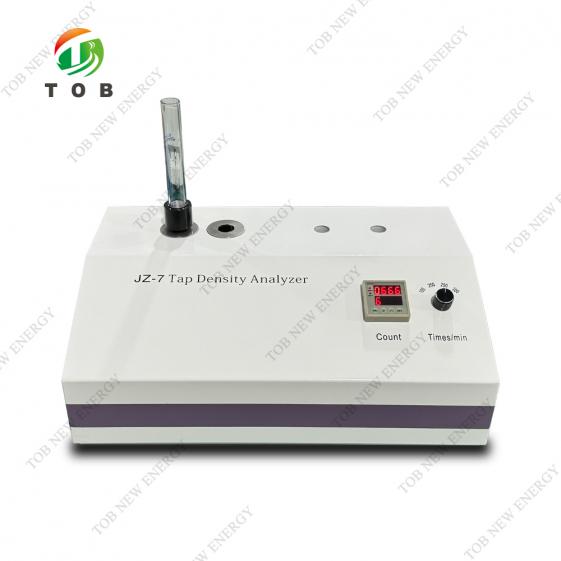

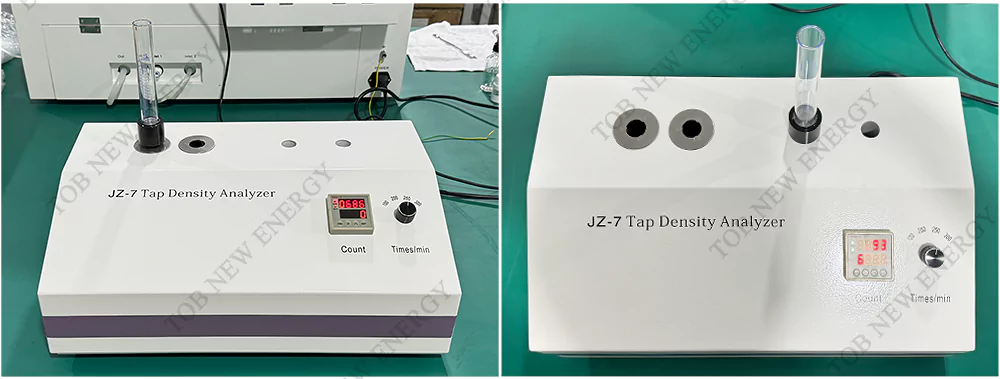

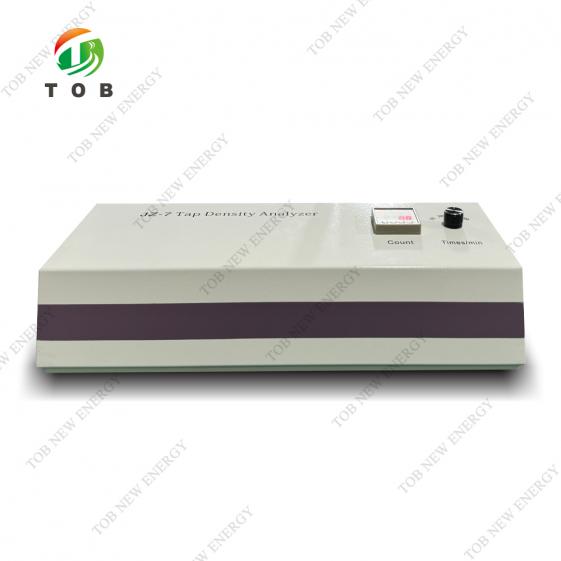

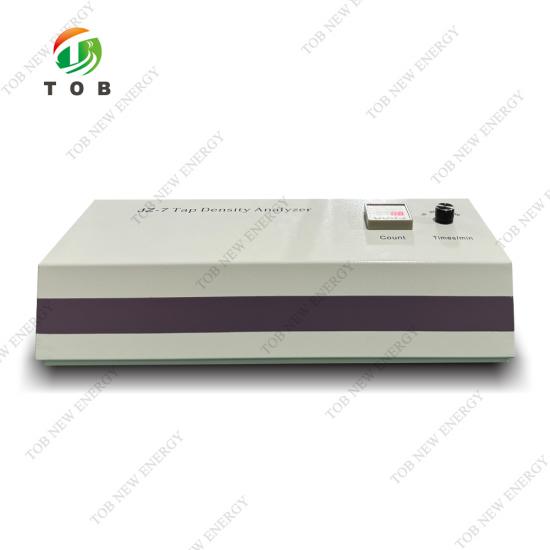

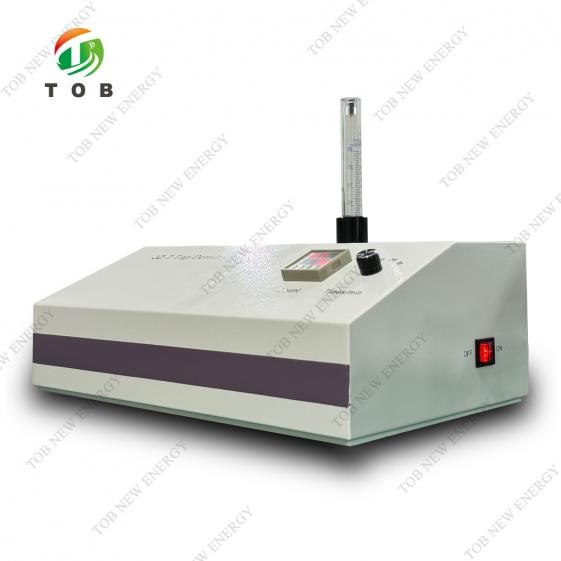

Tap Density Tester With Two Testing Position

The tap densityis an important index of powder materials quality.
  • item no.:

    TOB-TDT-JZ-7
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail
Best Price For Automatic Tap Density Analyzer For Powder Materials


SPECIFICATIONS



The tap densityis an important index of powder materials quality. Tap density measurement, refers to a certain amount of powder into a vessel, vibration under certain conditions, until the container volume will no longer reduce, read out the powder volume, and then use the powder weight divided by the volume to get vibration compaction density.


TOB-TDT-JZ-7tap density testeris mainly used for Medicine, chemical industry, building materials, battery, aluminum, zirconium powder, nickel powder, tungsten powder, tin powder, zinc powder, molybdenum powder, magnesium powder, copper powder, metal powder, alloy powder for powder industry


Model

Tap Density Tester   TOB-TDT-JZ-7

Voltage supply

AC 110V220V  50HZ/60HZ±10%

Power

50W

Warranty

One year limited warranty with lifetime support

 Technical principle

Tap density refers to the powder in the container will be filled by the vibrated density

under specified conditions

Measure time

5-60min/time, can test two samples a time

Vibration frequency

200times/min, 250times/min, 300times/min, 350times/min can be set

Oscillation Amplitude

3mm±0.2 mm

Measuring accuracy

< ±1%, when test they drum automatically in a cycle of rotation angle,

ensuring the noodle was the level of the state,

so as to ensure the accuracy of measurement of the height of the noodle

 Sample cylinder

Three models glass sample cylinder with volume of 25ml, 50ml, 100ml

Dimension(L*W*H)

400*280*230mm
