High-energy Laboratory Planetary Ball Mill

High-energy Laboratory Planetary Ball Mill

SPECIFICATIONS

1.This high-energy laboratory planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production. the Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).

2.It can be equipped with vacuum ball mill; the sample can be ground under vacuum.
3.The ball milling machine is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.
4.The machine can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.

Features：

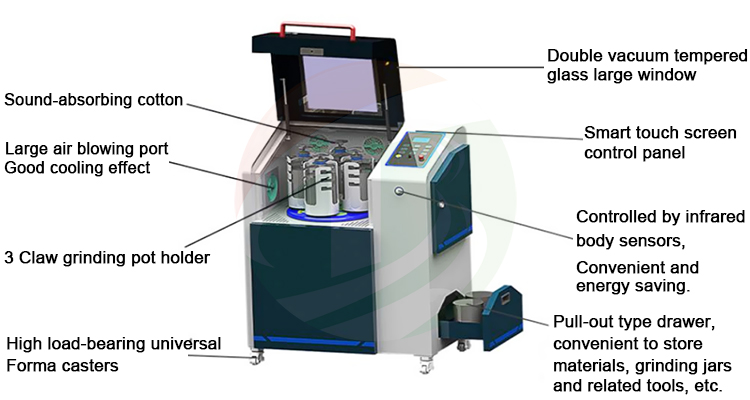

1.The equipment adopts professional appearance design, the shell adopts high-precision laser cutting, CNC bending forming, generous and delicate, high-end and stable.；
2.The planetary discs and structural components are processed by CNC machining process,Metal heat treatment process for nitriding ensures that the rotating shaft parts are wear-resistant and prevent the shaft from breaking. The transmission gear selects high temperature and wear-resistant non-metal and metal combined precision gears, which are lubricated by grease, which is safe and reliable. , Low noise, no pollution, low loss;

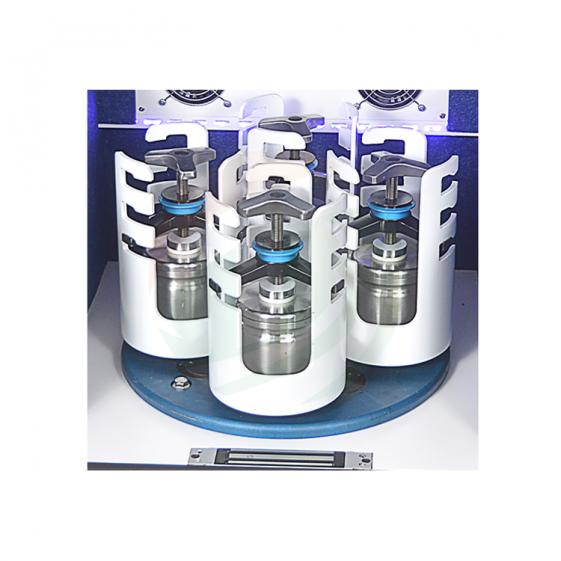

3.The ball milling tank adopts planetary motion, with high ball milling efficiency and fine particle size；
4.The inverter has under-voltage and over-current protection, which can protect electrical components such as motors；
5.Optional use of a new type of self-locking grinding tank tracking device, which can simultaneously tracking lock the grinding tank and prevent loosening, which is convenient, safe and reliable.；
6.Touch screen smart panel operation, convenient for man-machine integration operation；
7.The equipment has a low center of gravity, stable performance, and compact structure, which is convenient for equipment adjustment and shippment.

More Ball Mill Introduction

Ball Mill Jar Introduction

(1)Commonly Used Types

(2)Jar and Ball Match

PRODUCT DISPLAY
