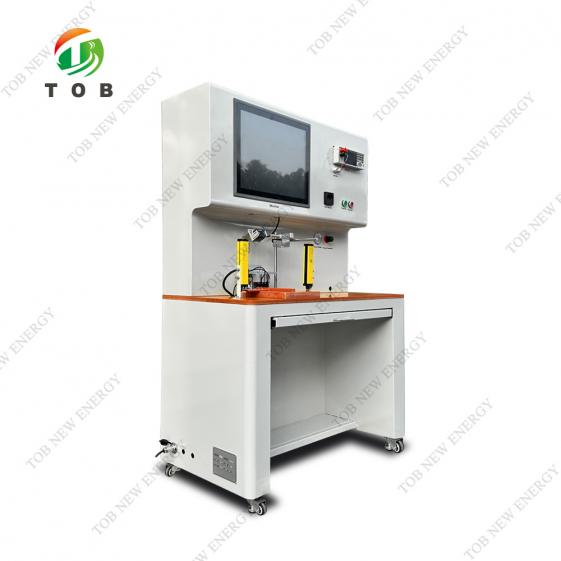

Manual OCV Multi-Functional Sorting Machine for Prismatic Cell

Manual OCV Multi-Functional Sorting Machine for Prismatic Cell

SPECIFICATIONS

1.Equipment functions

1.1 Basic functions:

This equipment is a manual OCV test and data binding equipment. The product is used for pouch cell lithium-ion prismatic battery cells, and its voltage and internal resistance data can be sorted by the software of the upper computer.

1.2 Equipment features

1.2.1This equipment is accompanied by a computer system, tester, test equipment, and software system.

1.3 Function description

1.3.1Battery cell feeding: manually place the battery on top of the fixture.

1.3.2Working principle: start the tester through the light curtain; the tester will upload the data to the software system when it is finished, and the voice will broadcast the grades(the voice can be shielded).

1.3.3Battery cell blanking: manually put the finished products into the corresponding gear blister tray to complete the sorting test.

2. Measurable product range requirements:

2.1 Compatible battery cell range: Length A: 50mm-150mm (including top sealing edge) Width B: 25mm-60mm Tab length C: ≥8.5mm Total length D: 50mm-160mm Tab distance E: 20mm-80mm Thickness: 0.5mm-5mm

2.2 Processperformance

1. This machine is suitable for testing pouch cell lithium-ion batteries, single machine standard for 1 person operation.

2. The machine adopts manual feeding and blanking, equipped with simple positioning fixture, easy for changing the type.

3. The computer display shows the test data of the products, which is easy to recognize the defective products.

4. Industrial control system, the test data will be uploaded to the database for storage.

5. Voice broadcasting the corresponding sort, manual placement in accordance with the requirements.

2.3Technical parameters of each system

3.Standard configuration table

3.1Standard parts and main configuration list

3.2Installation environment requirements

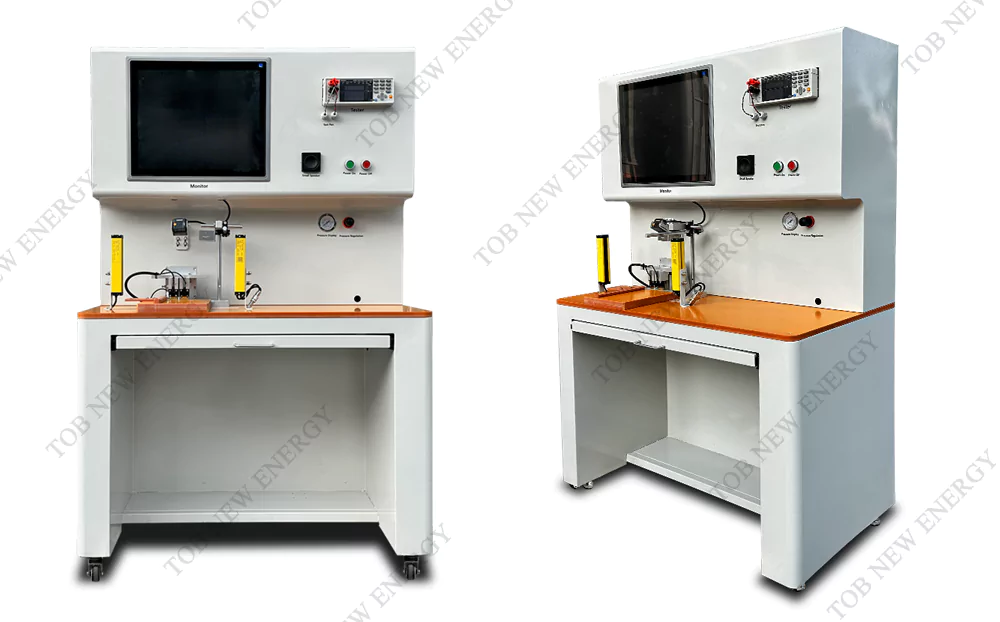

PRODUCT DISPLAY
