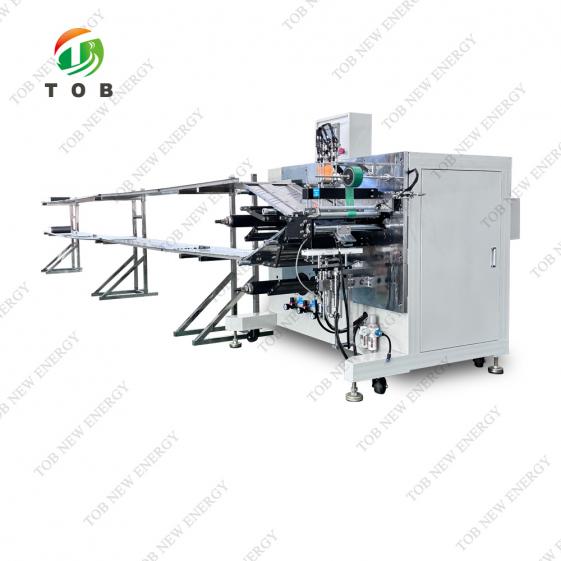

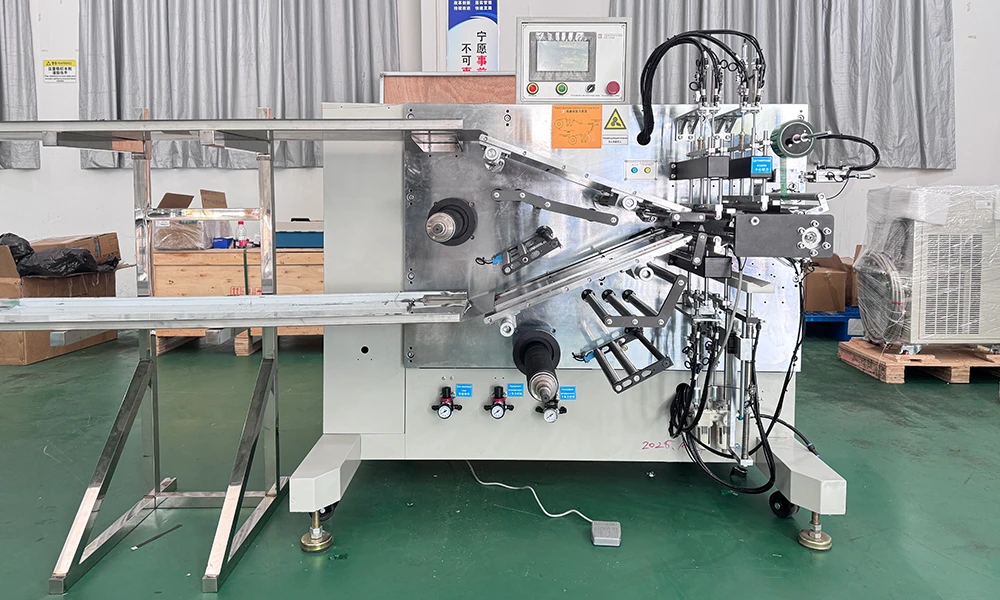

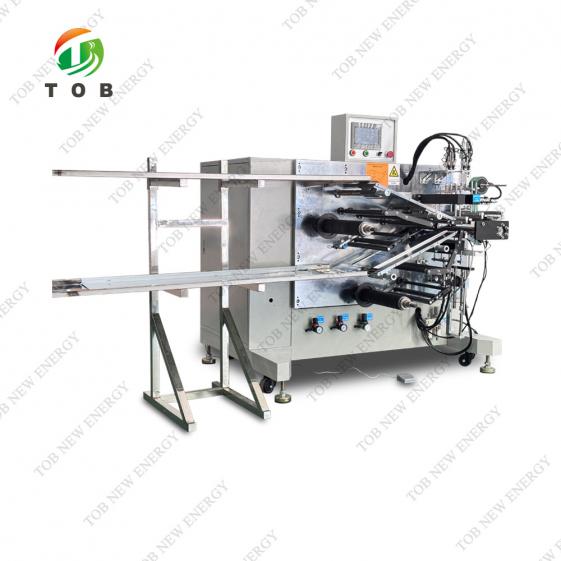

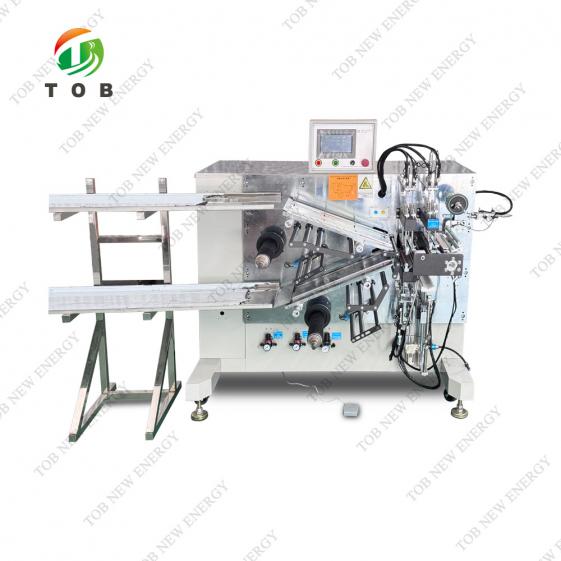

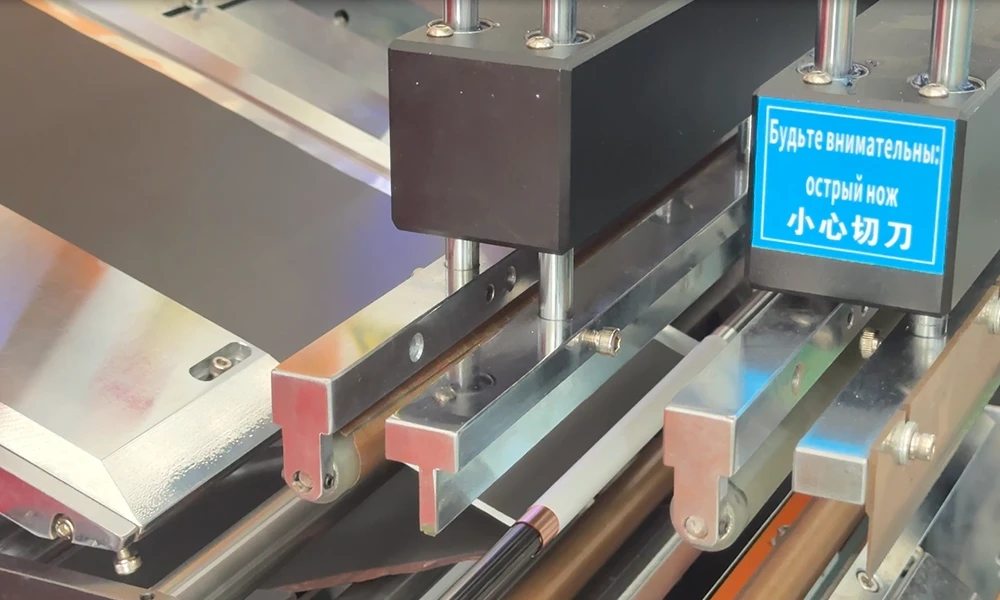

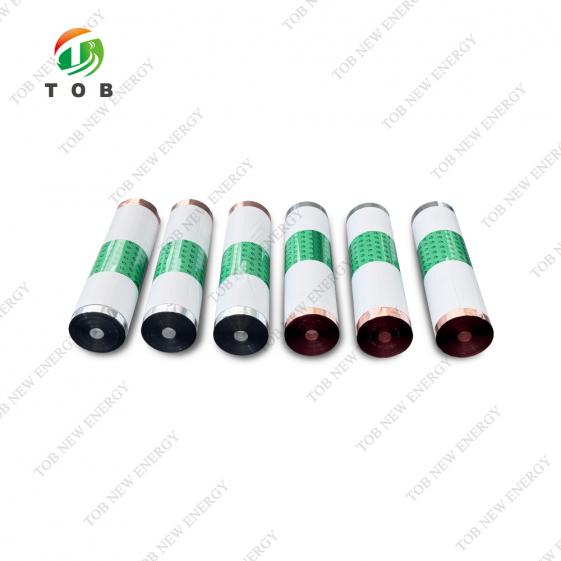

This TOB-SJR-50320 semi-automatic battery winding machine is designed for 50320 tabless cylindrical cells. Ideal for pilot lines and R&D lab-scale battery assembly.

The working process is as follows:

Manually guide the cathode and anode electrodes into the winding part, and separated stacking with the separator, and the winding will be carried out according to the requirements of the process, automatically attaching the termination tape, and the cell will automatically feed.

Function and Features

● Adopt single needle counter winding needle structure.

● Manual lead-in electrode, automatic winding, automatic change needle, automatic tape ending tape and automatic unloading.

● The adhesive tape adopts the horizontal paste (the tape is perpendicular to the tab), the adhesive is flat, and the adhesive position can be controlled accurately without tightening the cell; the adhesive is stable and reliable.

● winding needle speed was adjustable.

● Two rolls of separator active to unwinding, tension push switch control technology can adjust tension automatically during winding.

● It has a dust removal device.

● Separator outer pack end.

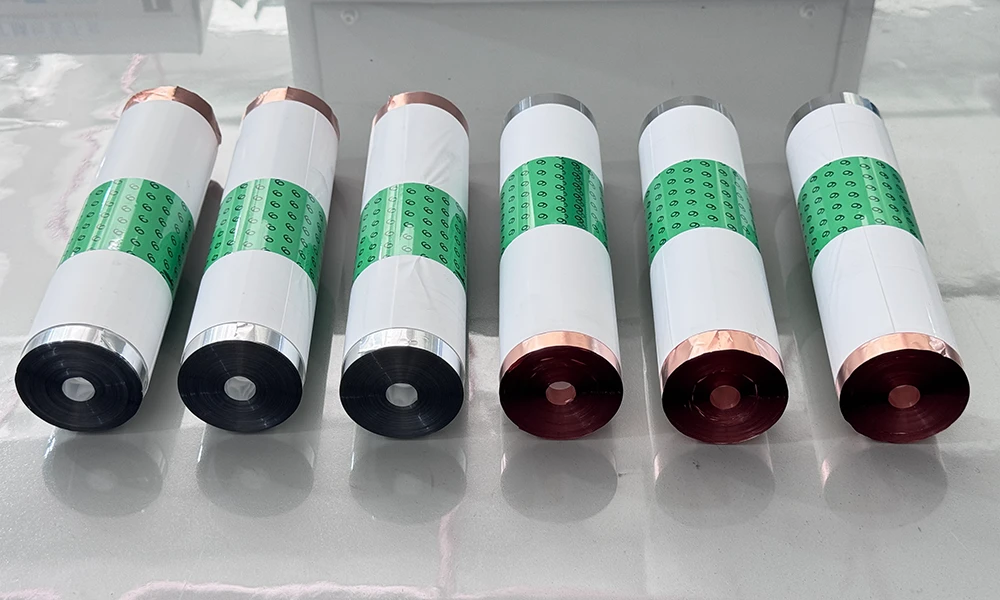

● The cell after winding without damage, core pulling and electrode dislocation phenomenon.

● Easy to operate,adjust and replace.

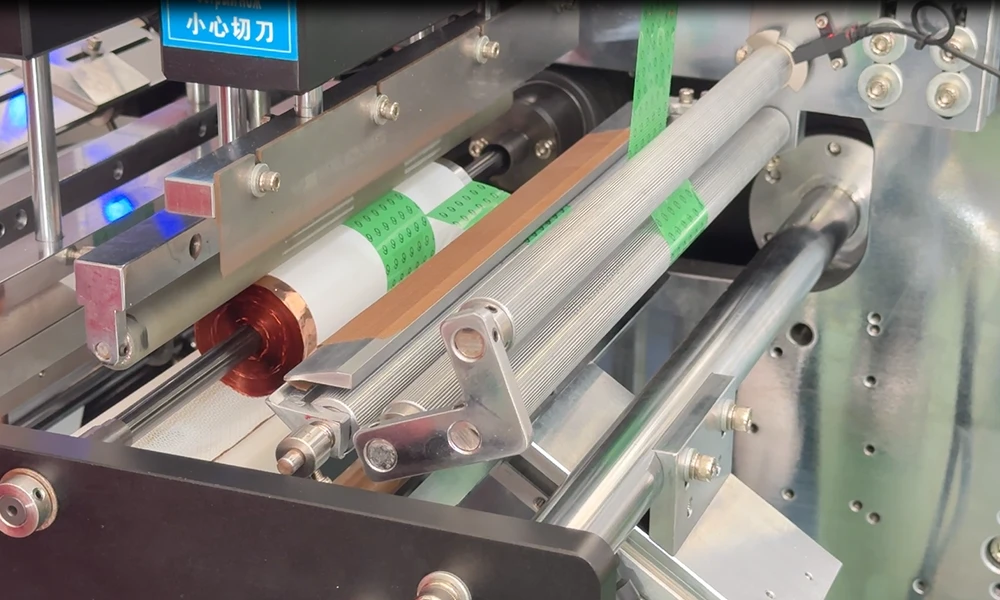

Working Process:

The machine meets the technical standard of the cylindrical lithium ion battery cell winding: the separator is completely wrapped the negative electrode, and the negative electrode is wrapped in the positive electrode.

The process flow is as follows:

● Separator pre winding: the length of pre winding separator can be saved by using the Tooth cutter technology.

● Winding the negative electrode: manually lead in the negative electrode into the winding part; winding the positive electrode: manually lead in the positive electrode into the winding part.

● Winding.

● Shift position.

● Cut off the separator  , and stick termination tape  and unloading.
