TOB NEW ENERGY Supercapacitor Pilot Line Equipment Feb 12,2020

Supercapacitor refers to a new type of energy storage device between traditional capacitors and rechargeable batteries. It has both the characteristics of fast charging and discharging of capacitors and the energy storage characteristics of batteries.

Compared with batteries and traditional physical capacitors, the characteristics of supercapacitors are mainly reflected in:
(1) High power density. It can reach 102 ~ 104 W / kg, which is much higher than the power density level of the battery.
(2) Long cycle life. After a few seconds of high-speed deep charge-discharge cycles of 500,000 to 1 million times, the characteristics of the supercapacitors change little, and the capacity and internal resistance are only reduced by 10% to 20%.
(3) Wide working temperature limit. Since the adsorption and desorption speed of ions in a supercapacitor does not change much at low temperatures, its capacity change is much smaller than that of a battery. Commercial supercapacitors can operate at temperatures ranging from -40 ° C to + 80 ° C.
(4) Maintenance-free. Supercapacitors have high charge and discharge efficiency, have a certain tolerance for overcharge and overdischarge, can be repeatedly charged and discharged stably, and theoretically do not require maintenance.
(5) Green and environmental protection. Super capacitors do not use heavy metals and other harmful chemicals in the production process, and have a long life span, so they are a new type of green environmental protection power supply.

Now,our company have the full set super capacitor equipment about the super capacitor pilot line.The slurry mixingelectrode coatingelectrode rolling→battery tab rivetingfeeding in the casefilling the electrolytegrooving sealingsecondary sealing.

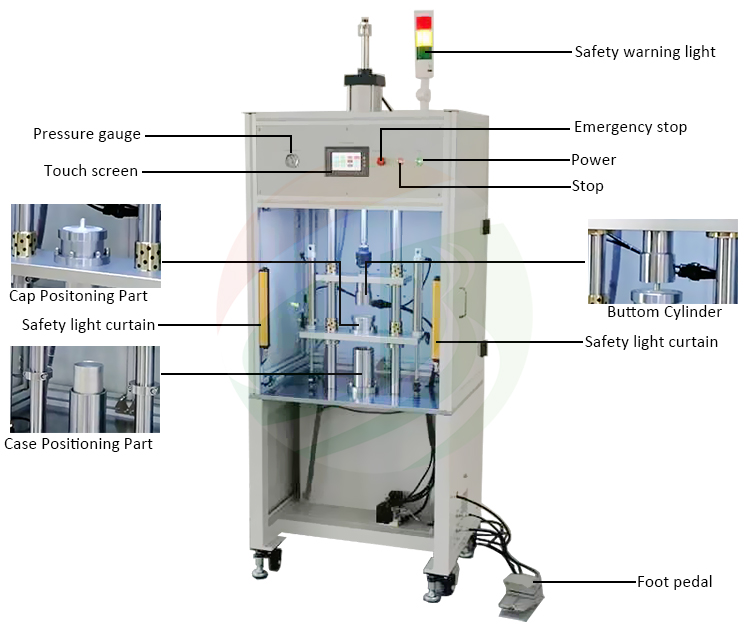

Supercapacitor Cell Feeding Machine

feeding in the case

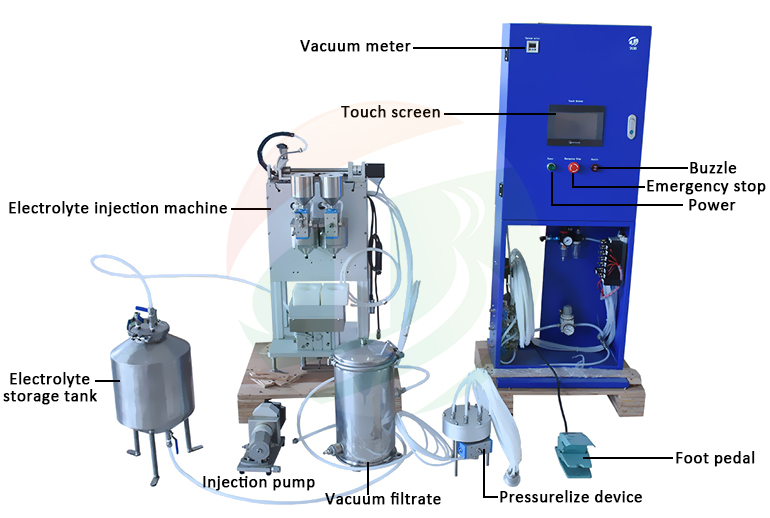

Supercapacitor Vacuum Electrolyte Filling Machine

electrolyte filling machine

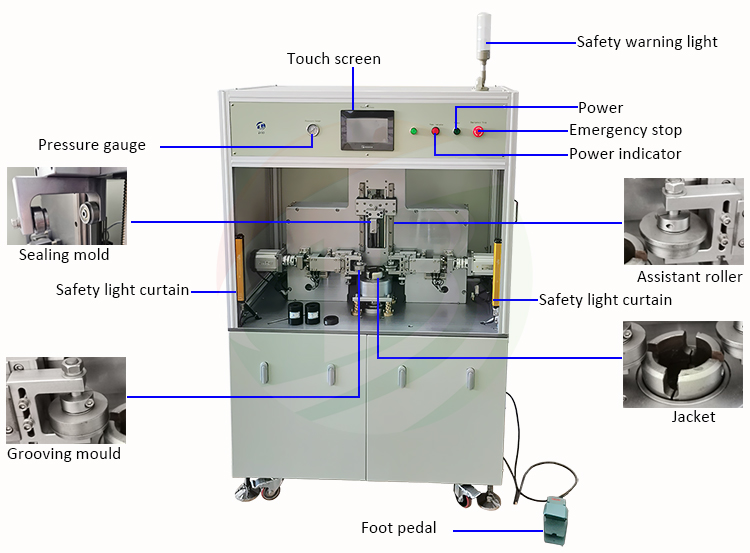

Supercapacitor Grooving And Pre-Sealing Machine

battery grooving and sealing machine

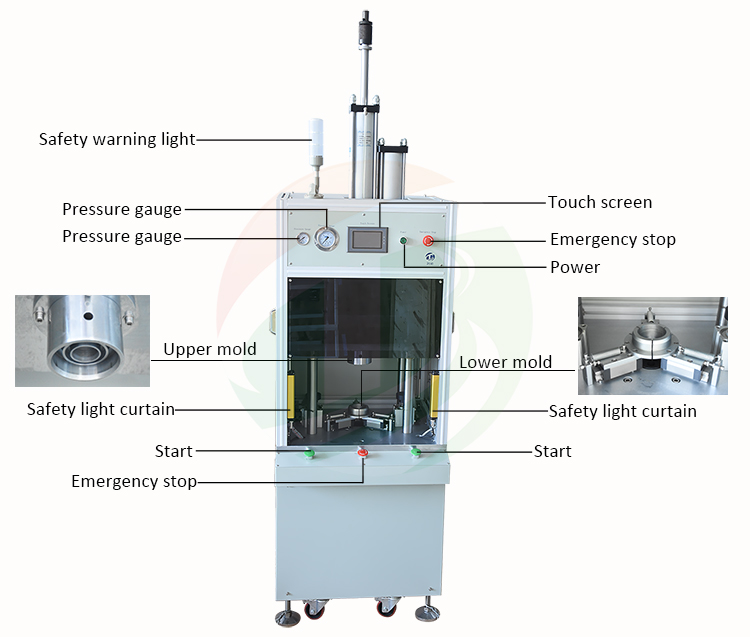

Supercapacitor Final Sealing Machine

battery secondary sealing machine

If you are interesting about the super capacitor,you can contact us.

We are TOB, we have the total stacking tool from manual to seme-auto and automatic,can satisfied every requirement that you need.

We are TOB , we are not only provide the battery equipment and materials we will also provide the knowledge of the battery.
